5-6
User Guide
MC310 USER GUIDE I 6-7

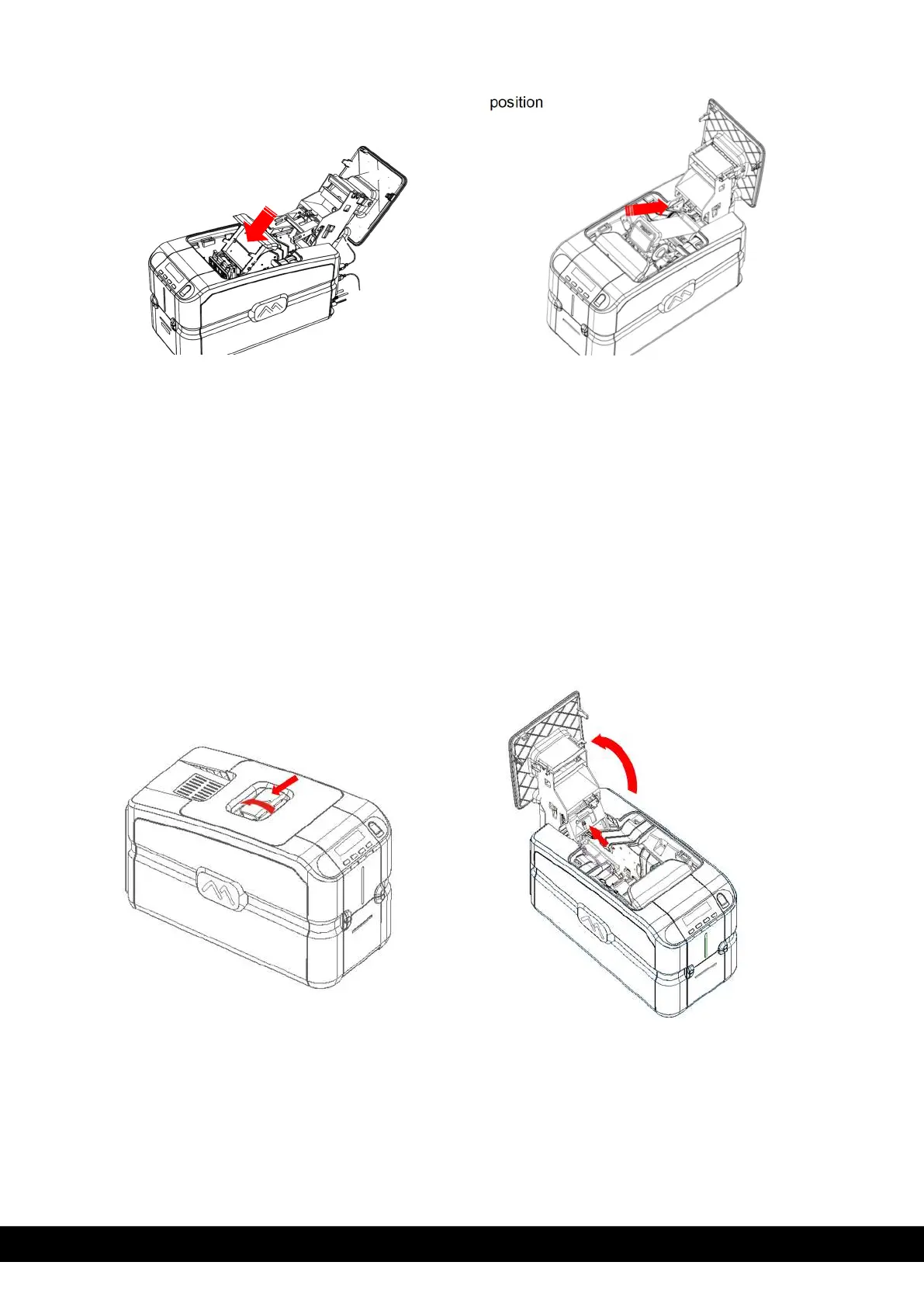

9)Insert the Encoder cover and ribbon carrier back into its position
10)Close the printing module compartment
11)The roller cleaning procedure is now concluded.
6.5 Printhead Cleaning
It is suggested to clean the printhead when dots are missing on the printed cards:
The edge of the printhead must be cleaned using the cleaning pen.
The edge of the printhead must be cleaned to remove residual ink or dust.
6.5.1 Printhead Cleaning Procedure
1)
Unplug the printer from the power supply.
2)
Open the Top cover.
1.Insert the Encoder cover
2.Insert the Ribbon carrier
To Next Page
