90 CONTENTS

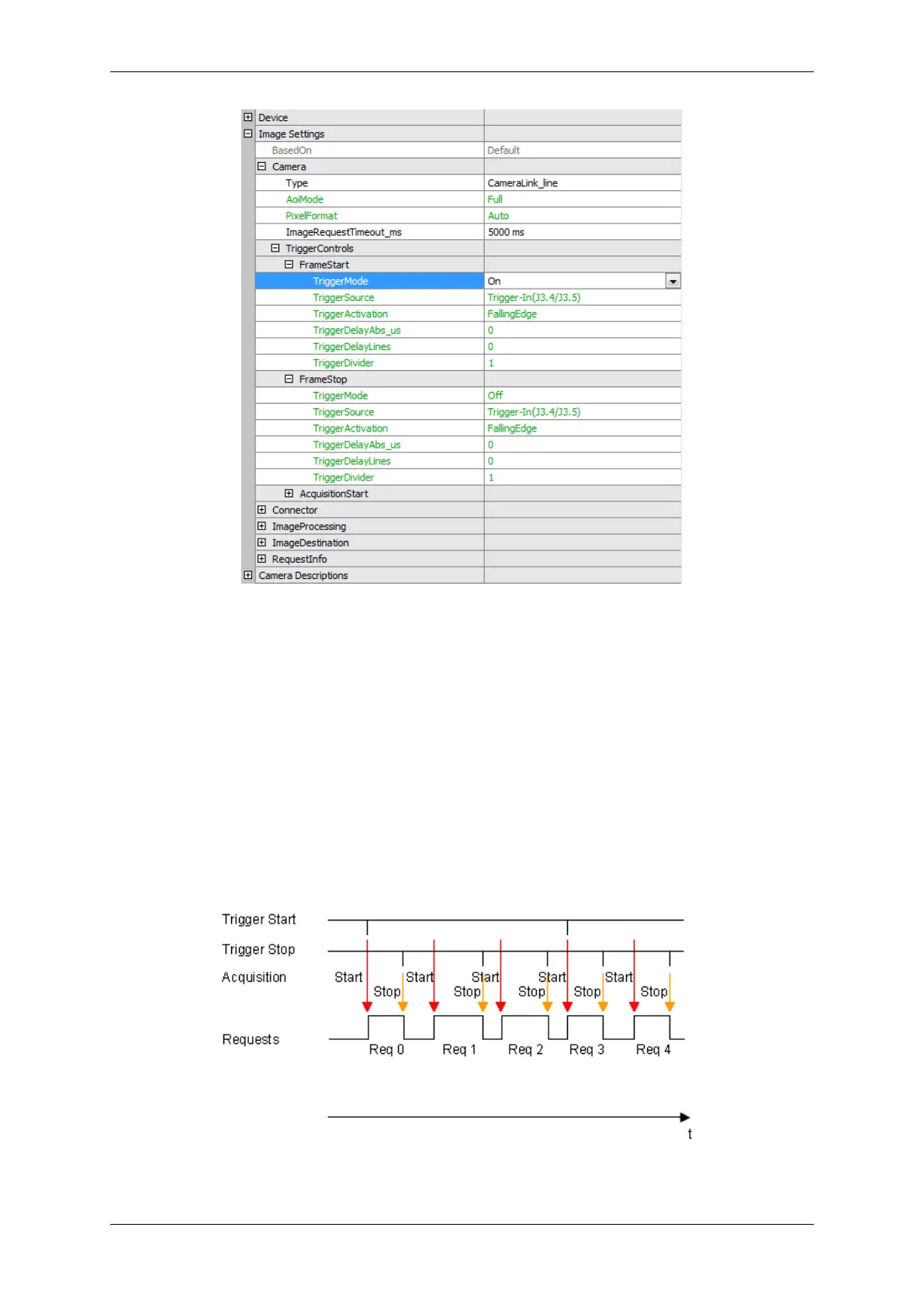

Figure 46: wxPropView - Setting StartTrigger
9.1.2.7.2 TriggerStartStop
In TriggerStartStop there are two trigger sources, one to start the acquisition and the second trigger event to stop
it. Between start and stop, there is at least one line pause. The image height is affected by the stop event.
Figure 47: TriggerStartStop
