B. PIPETTOR OVERVIEW
B.1 General Description
Keypad
Display
Battery
Case
Pipetting Trigger
Ejector Trigger
Color-coded
Ring
Transformer
Connector
Tip Fittings

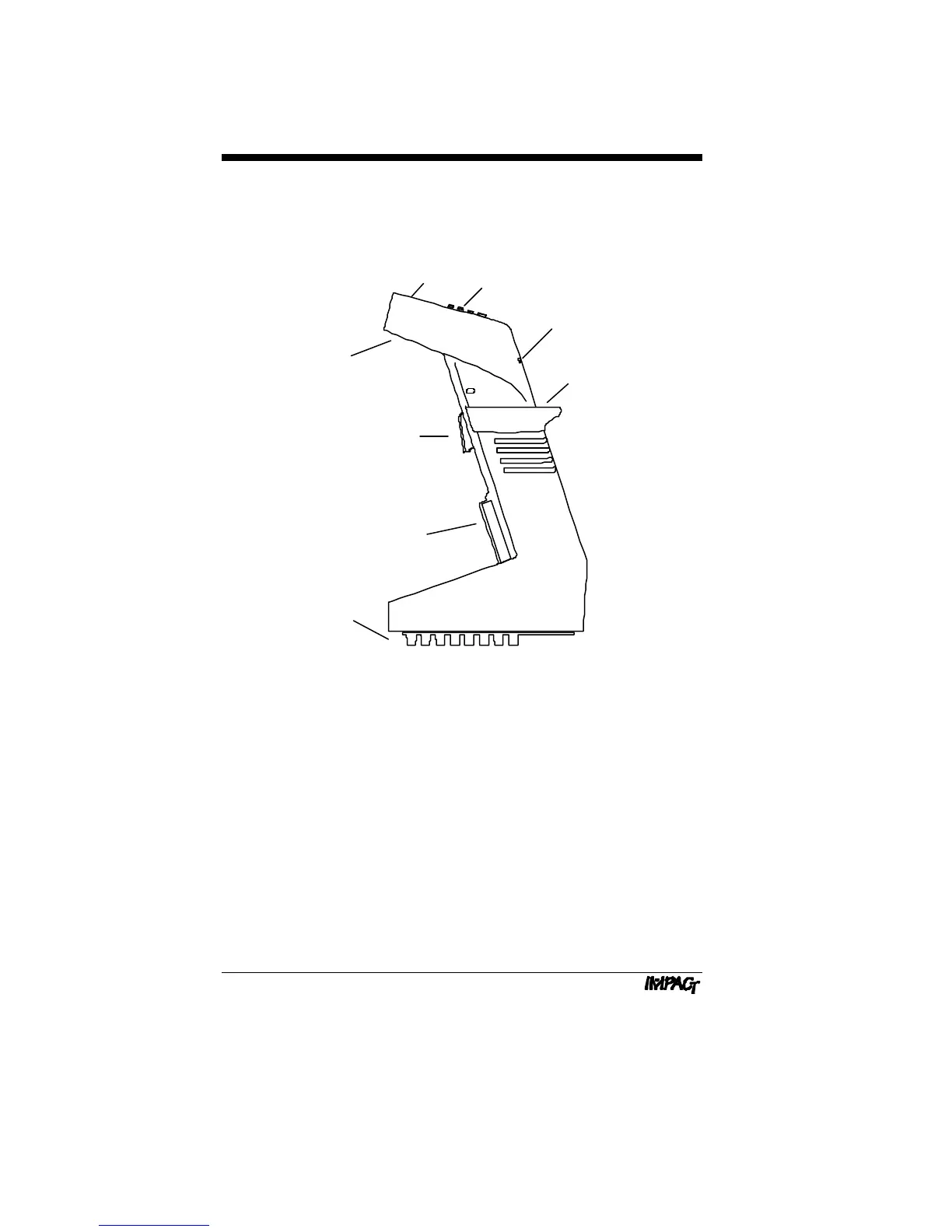

Figure B.1: Description of Components
Keypad. The keypad contains the operation keys that are used
in programming the pipetting sequence and volumes. See Section
B.2, Keypad.
Display. The display is an LCD screen that shows the pipetting
operation (fill, dispense, mix, or purge) and fluid volume for each
step in the pipetting program. See Section B.3, Display.
