80 Appendix B: Technical reference
Audio input and audio output connectors
The audio input and audio output connectors are 3.5 mm TRS mini-jacks
designed to carry stereo audio. You can connect a stereo audio device to the audio
input and output connectors, using a 3.5 mm audio input/output 3.5 mm TRS
mini-jack plug. The audio interface is only designed for line-level input/output
operations. Since there is no output amplifier or input preamplifier, the interface
does not support unamplified speakers or microphones without a preamplifier.
DC power connector

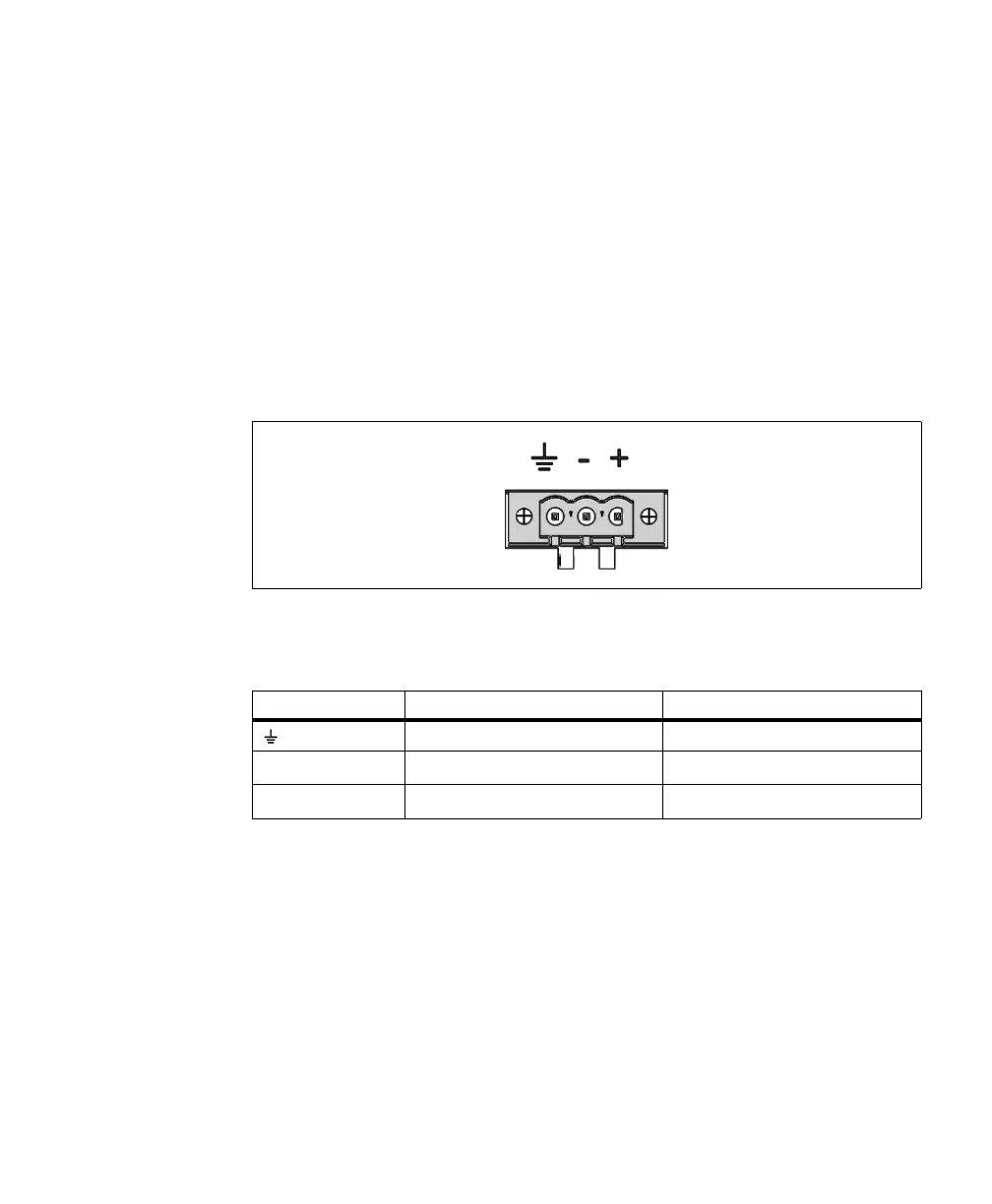

The DC power connector is a terminal-block connector. It is shown below with
the single x3 mating connector attached to the chassis.
The positive (+) and negative (-) wire terminal slots must be connected for the
device to be powered.
Warning To ensure EMC conformity, connect the chassis ground pin of your Matrox 4Sight
EV6 unit to earth.
Wire-terminal Purpose Connecting wire color
Chassis ground.
- Ground (- power).
Black
1
1. Be aware that some power supplies might have different colors; verify the polarity of
your wires before attaching them.
+Power.
Red
1
