4. Working with the Ink Ribbon Cassette
Inserting the Ink Ribbon Cassette
Note : CPM-100G5 / HG5 printers work properly only with SL-R1xxT xxxxx-C (such as SL-R101T Black-C)
ribbon cassettes. For further details, please contact MAX Bepop CPM-100G5/HG5 distributors and dealers.

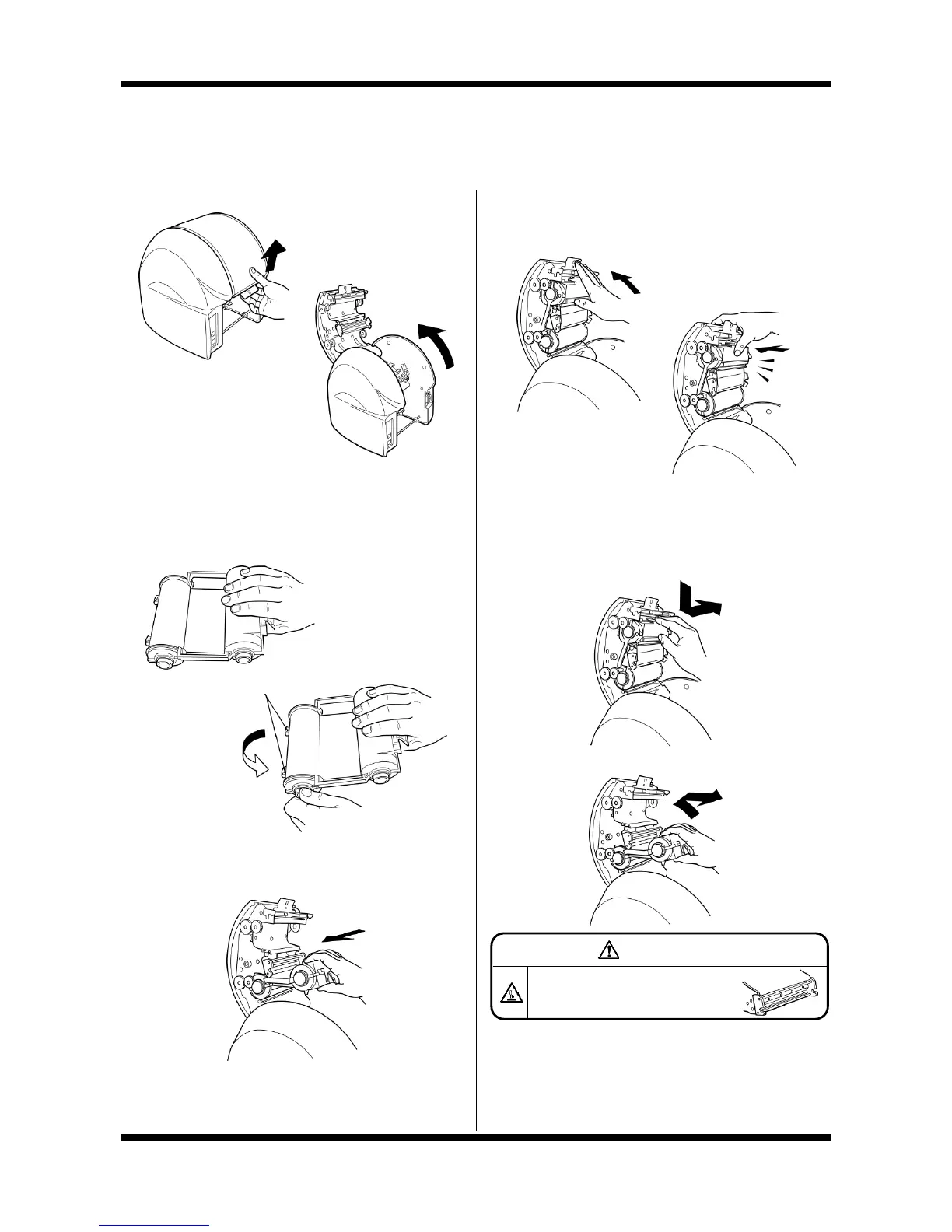

1. Pull up the opening/closing lever to open the door cover.
2. Holding the ink ribbon cassette so that its sponge faces
downward, turn the ribbon gear in the arrow-indicated
direction as shown in the figure to take up the slack of the
ink ribbon.
3. Fit the claws of the ink ribbon cassette into the slots in the
back of the door cover.
4. Turn the ink ribbon cassette upward, using the claws as
leverage. Push it in firmly until the ink ribbon locks with a
“click” sound.
Removing the Ink Ribbon Cassette from the
CPM-100G5/CPM-100HG5
5. Open the door cover. Pushing the snap of the ink ribbon
cassette, pull it out.
6. Lift the cassette upward and pull it out.
Do not touch the thermal head to prevent a
burn.
It could burn you.
