MAXDATA PLATINUM - Technical Reference; Server Board Jumpers; Configuration Jumper

53
MAXDATA PLATINUM Server Board
66
Technical ReferenceTechnical Reference
Server Board Jumpers

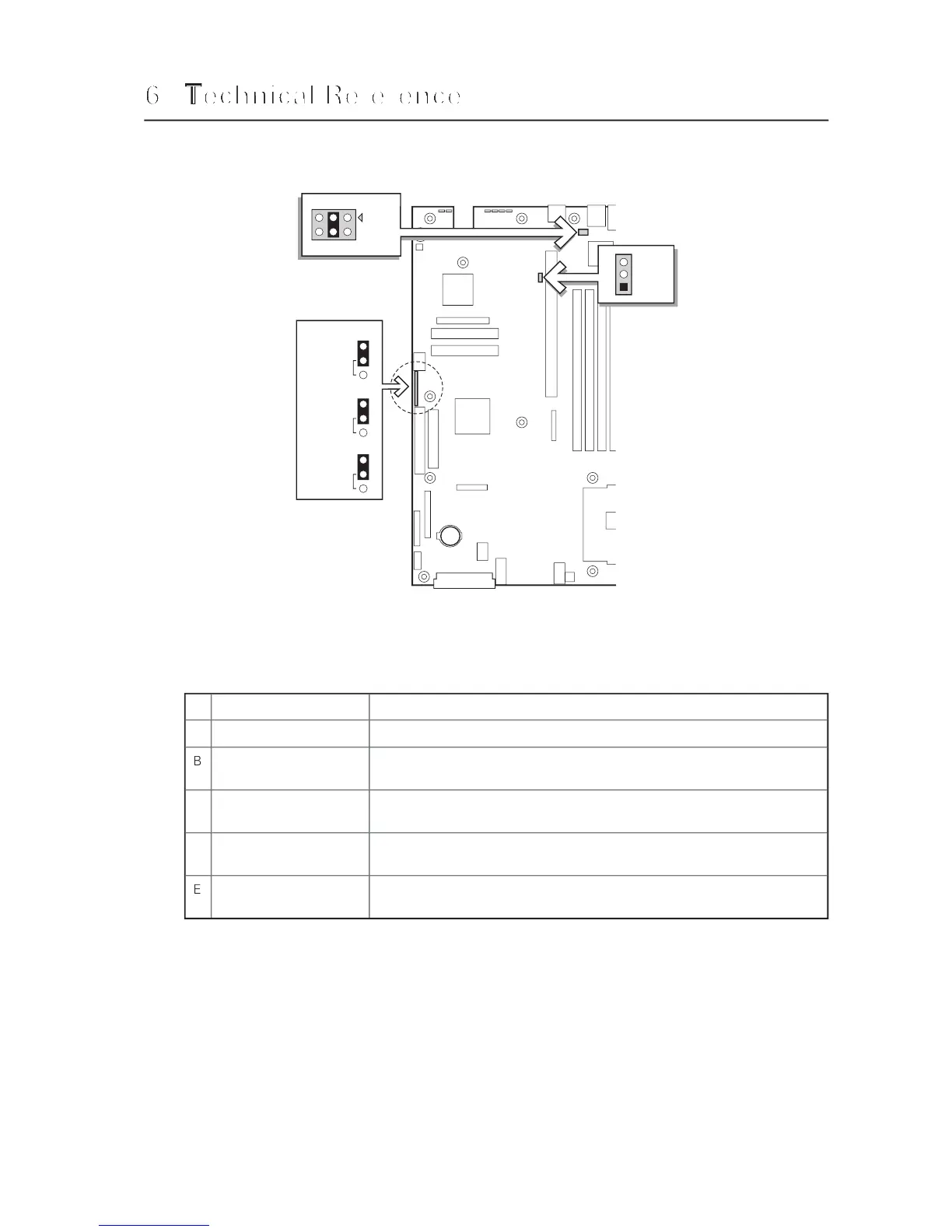

Figure 6. Jumper Locations
Table 11. Configuration Jumper
Jumper Name
What it does at system reset
A
RJ-45 Serial Port
Config
Configures either a DSR or a DCD signal to the connector.
B
CMOS CLR
If these pins are jumpered, the CMOS
settings are cleared. These pins
should not be jumpered for normal operation.
C
PSWD CLR
If these pins are jumpered, the password is cleared. These pins should not
be jumpered for normal operation.
D
RCVRY BOOT
If these pins are jumpered, the system will attempt BIOS
recovery. These
pins should not be jumpered for normal operation.
E
BMC
Boot Block Write
Enable
If these pins are jumpered, BMC boot block is erasable and programmable
at next reset. These pins should not be jumpered for normal operation.












 





