MAXDATA PLATINUM Server Board
Back Panel Connectors

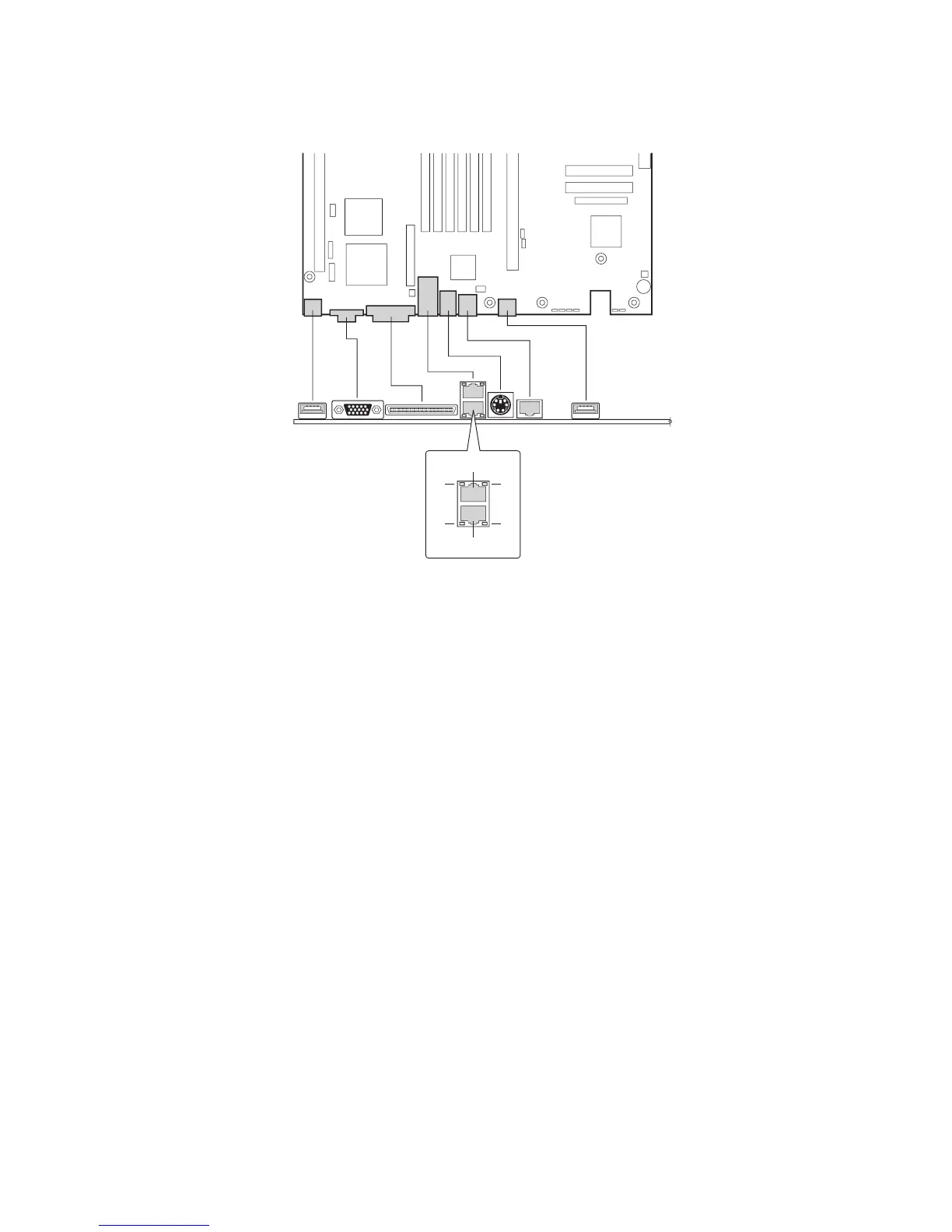

Figure 2. Back Panel Connectors
A.
USB 0 connector
B.
Video connector
C.
SCSI channel A connector (SCSI server board only)
D.
NIC 2 RJ-45 connector
E.
Status LED
F.
Speed LED
G.
NIC 1 RJ-45 connector
H.
Status LED
I.
Speed LED
J.
PS/2 keyboard/mouse connector
K.
RJ-45 serial port
L.
USB 1 connector

 









