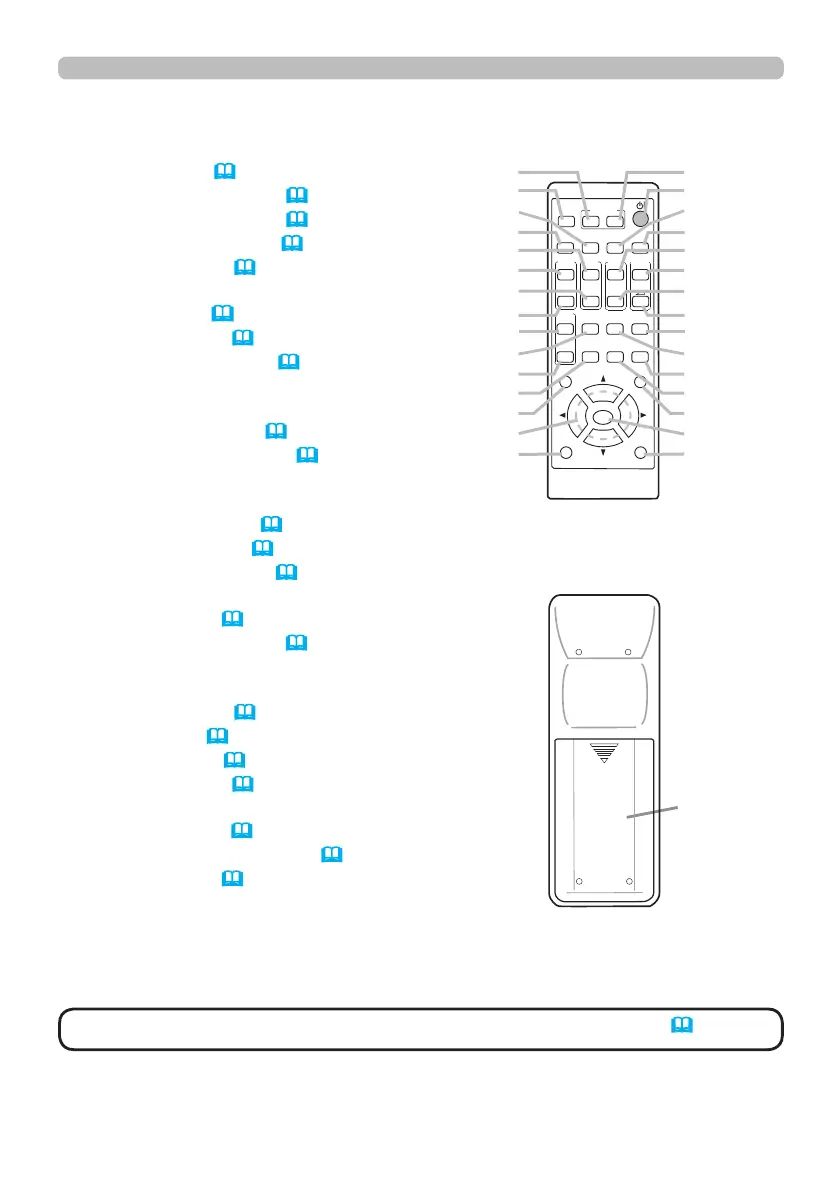

Part names (continued)
• Any button marked with “*” is not supported on this projector (113).
NOTE
Back of
the remote control
(1) INPUT button (37)
(2) MY BUTTON-1 button (
78, 79)
(3) MY BUTTON-2 button (
78, 79)
(4) STANDBY/ON button (
34)
(5) ASPECT button (
37)
(6) PbyP button *
(7) AUTO button
(41)
(8) FREEZE button (46)
(9) MAGNIFY ON button (
45)
(10) FOCUS + button *
(11) ZOOM + button *
(12) VOLUME + button (
36)
(13) MAGNIFY OFF
button (45)
(14) FOCUS - button *
(15) ZOOM - button *
(16) VOLUME - button (
36)
(17) PAGE UP button (
33)
(18) GEOMETRY button (
42)
(19) PICTURE button
(20) MUTE button (
36)
(21) PAGE DOWN button (
33)
(22) INTERACTIVE button *
(23) NETWORK button
(24) BLANK button (
46)
(25) ESC button (
33)
(26) MENU button (
47)
(27) ENTER button (
47)
(28) OSD MSG button
(29) RESET button (
47)
(30) ▲/▼/◄/►cursor buttons (
47)
(31) Battery cover (
31)
