52
STEP 11 - ADJUST PLATFORM (IF REQUIRED)
- Continued
WARNING
!
To prevent accidental personal injury and equipment damage, make sure
power is disconnected from Liftgate while installing parts.

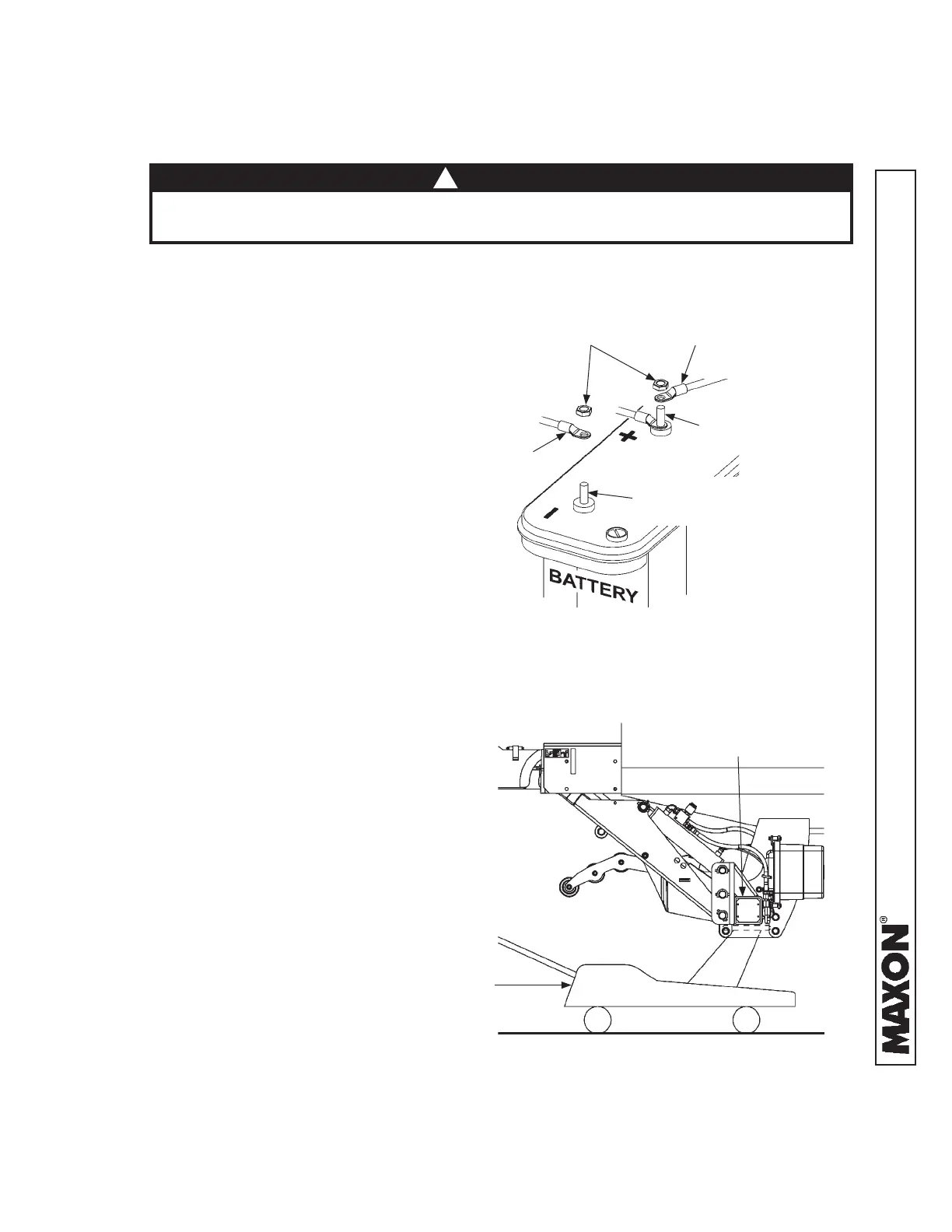

10. Disconnect power to the pump by
disconnecting negative (-) and
positive (+) cables from battery (FIG.
52-1). Reinstall nuts on negative (-)
and positive (+) battery terminals.
POSITIVE (+)
BATTERY POST
NEGATIVE (-)
BATTERY CABLE
NEGATIVE (-)
BATTERY POST
NUT
POSITIVE (+)
BATTERY CABLE
DISCONNECTING BATTERY POWER
FIG. 52-1
11. Support the Liftgate under main
frame with a fl oor jack (FIG.
52-2).
FLOOR JACK
MAIN FRAME
SUPPORTING LIFTGATE
FIG. 52-2
