74

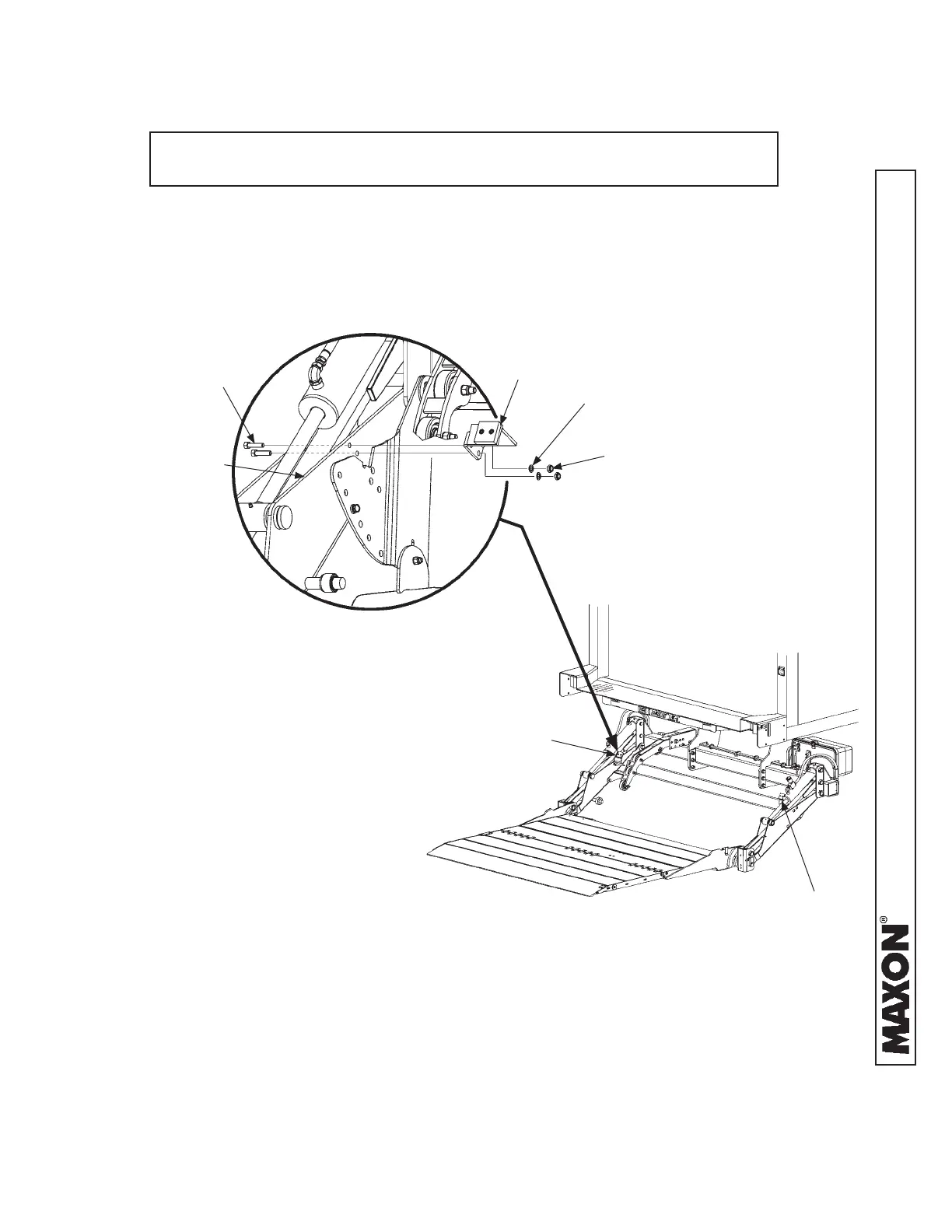

STEP 15 - ADJUST UNDERRIDE - Continued
BOLTING ON PLATFORM SEAT
(LH SEAT SHOWN)
FIG. 74-1B
LIFTGATE WITH PLATFORM ON THE GROUND
(STANDARD FMVSS UNDERRIDE SHOWN)
FIG. 74-1A
LH SEAT
RH SEAT
LIFTING
ARM
13. Lower platform to the ground (FIG. 74-1A).
Then, bolt the LH platform seat (FIG. 74-1B)
and the RH platform seat in position. Torque
the cap screws and lock nuts to 42 lb-ft.
NOTE: For some bed heights, platform seat may be bolted against the
underride bracket.
PLATFORM
SEAT
LOCK NUT
(2 PLACES)
FLAT WASHER
(2 PLACES)
CAP SCREWS
(2 PLACES)
To Next Page
