11 DX-3000 Technical Document
11.1 High voltage generator
11.1.1 X-ray Tube : D-081B
1. Manufacturer: TOSHIBA(Japan)
2. Electrical Characteristics

Operating Tube Voltage ………………………………………………………………….60 kV

Focal Spot ……………………………………………………………………………..………0.8 mm

Input Power (at 1.0s) ……………………………………………………………………....600 W
3. Mechanical Characteristics
 Dimensions

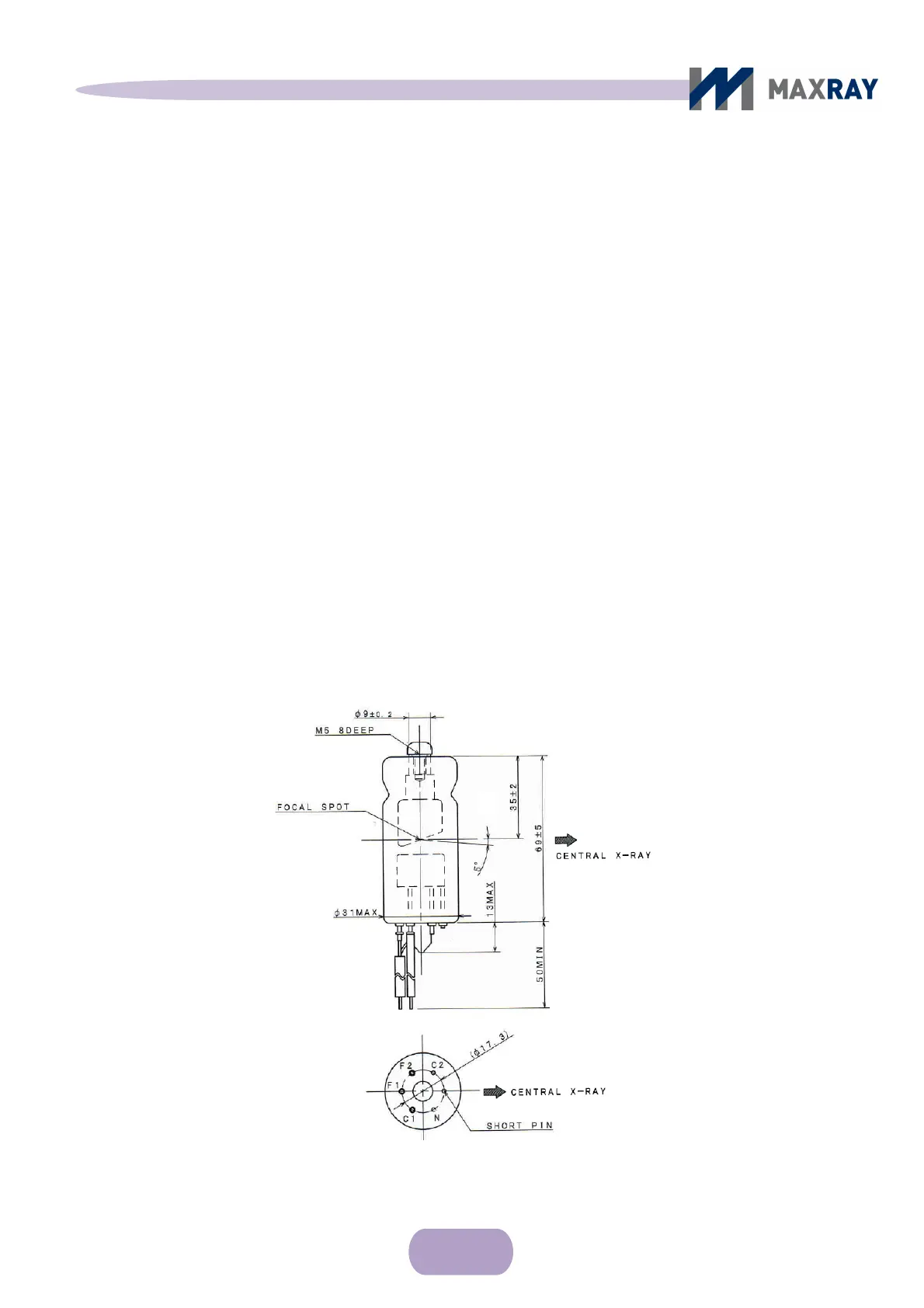

Figure 11.1 Dimension of the X-ray tube
