NOTE
Even though the back end of the parking space (or garage) displayed on the screen
and distance guide lines appear parallel, they may not actually be parallel.
When parking in a space with a division line on only one side of the parking space,
even though the division line and the vehicle width guide line appear parallel, they
may not actually be parallel.

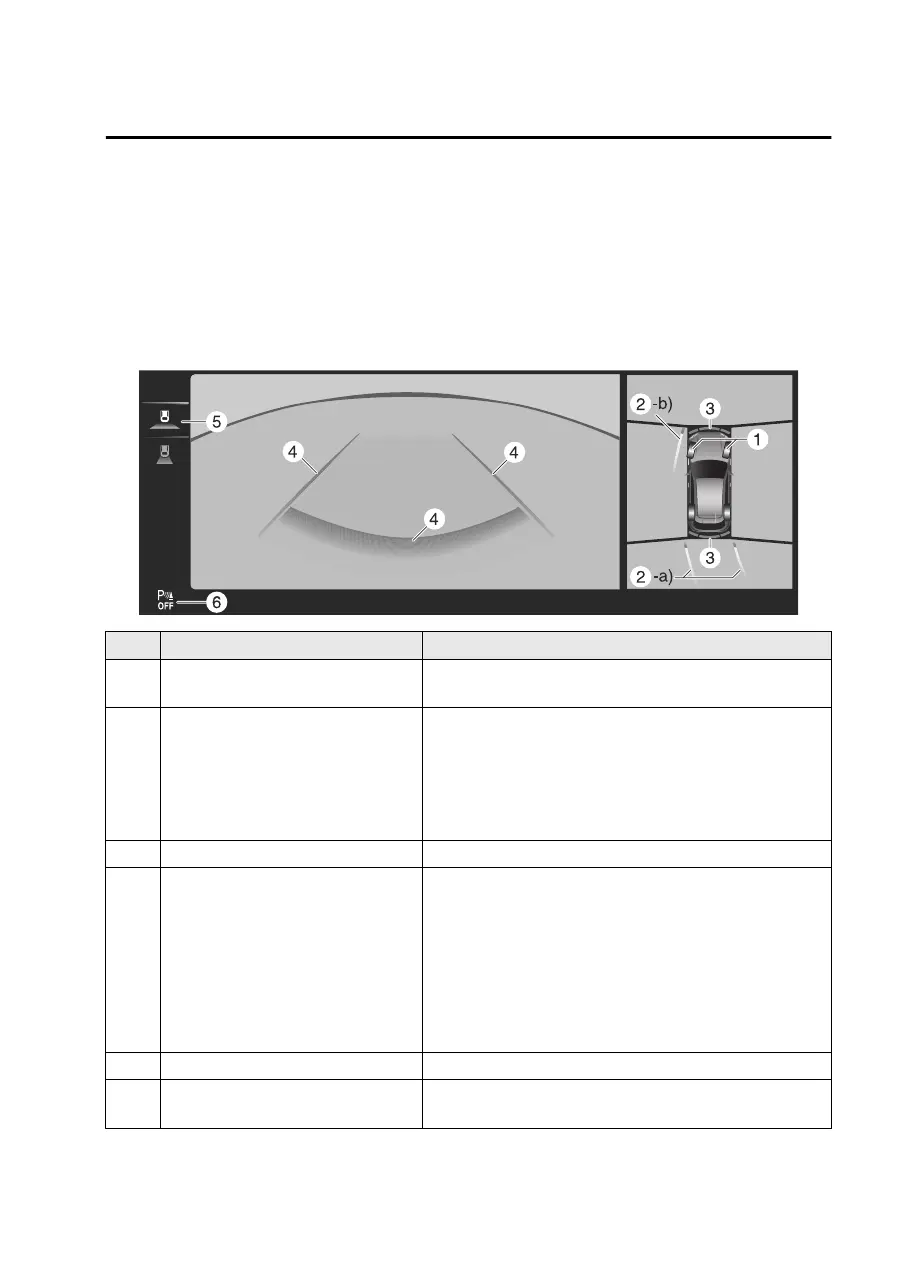

Top view, rear wide view
Indication Content
1 Tire icon
Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
2
Projected vehicle path lines (red/
yellow)
Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the rear end of the rear
bumper passes as a reference.
b) Indicates the path where the outer side of the vehicle
is expected to travel.
3 Parking sensor detection indication Indicates the obstruction detection status.
4
Extended vehicle width lines and
distance guide lines (red/blue)
These guide lines indicate the approximate width of the
vehicle and distance to a point measured from the rear of
the vehicle (from the end of the bumper).
The red line indicates the point about 50 cm (19 in)
from the rear end of the rear bumper.
The blue lines indicate the points from about 50 cm
(19 in) and up to 2 m (78 in) from the rear end of the
bumper.
5 View status icon Indicates which image is selected.
6 Parking sensor status icon
Indicates that the parking sensor has a problem or it is
switched off.
Driving
360° View Monitor
5-189
