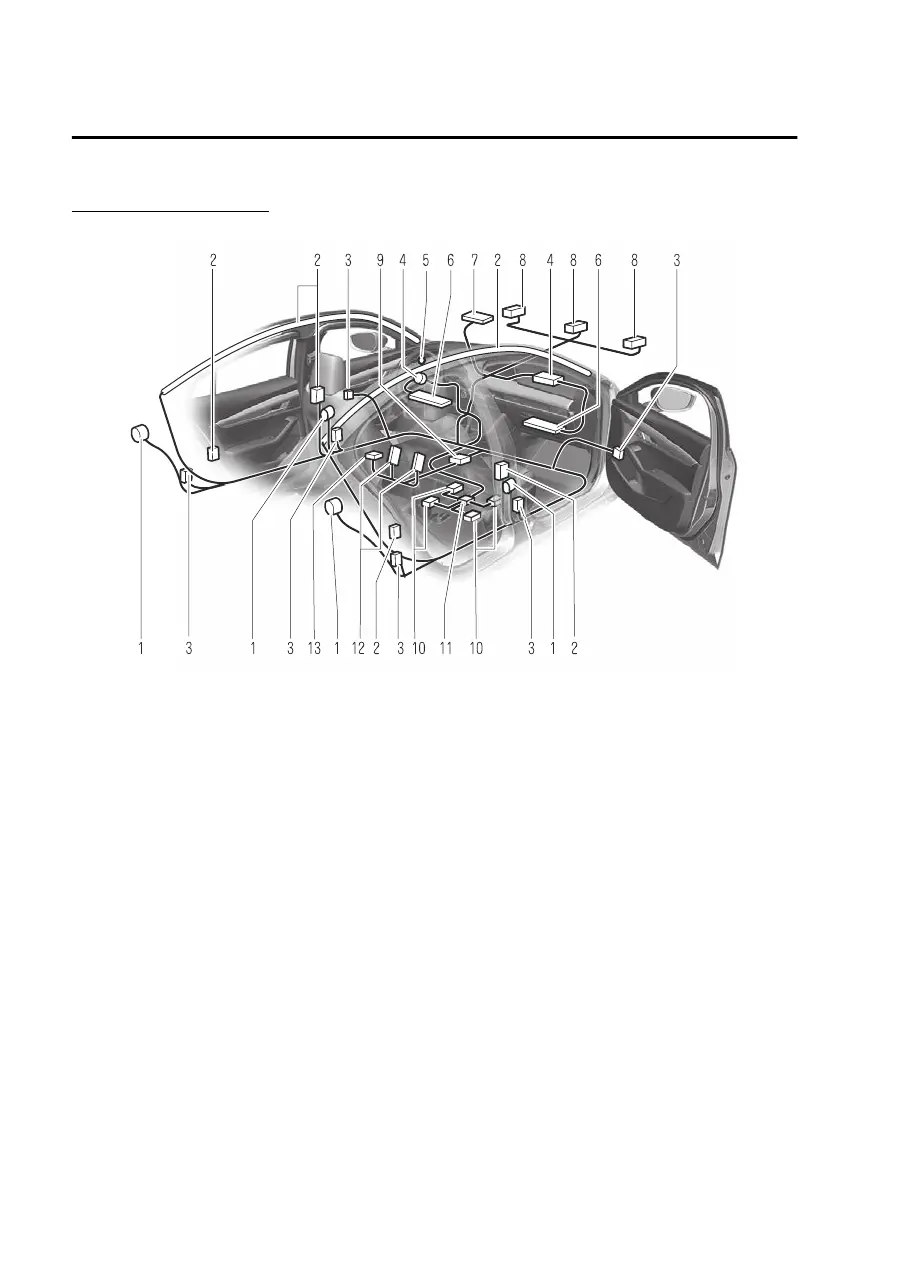

Air bag structural view
(With Driver and Front Passenger Occupant
Classification
System)
1. Seat belt pretensioners
2. Side and curtain inflators and air bags
3. Side crash sensors
4. Driver/Front passenger inflators and air bags
5. Air bag/seat belt pretensioner system warning indication/warning light
6. Driver/Front passenger knee
inflators
and air bags
7. Front passenger air bag deactivation indicator light
8. Front air bag sensors
9. Roll-over sensor, crash sensors, and diagnostic module (SAS unit)
10.Front passenger seat weight sensors
11.Front passenger seat weight sensor control module
12.Seat belt buckle switches
13.Driver seat slide position sensor
Equipment to Protect Occupants/Pedestrians
SRS Air Bags
