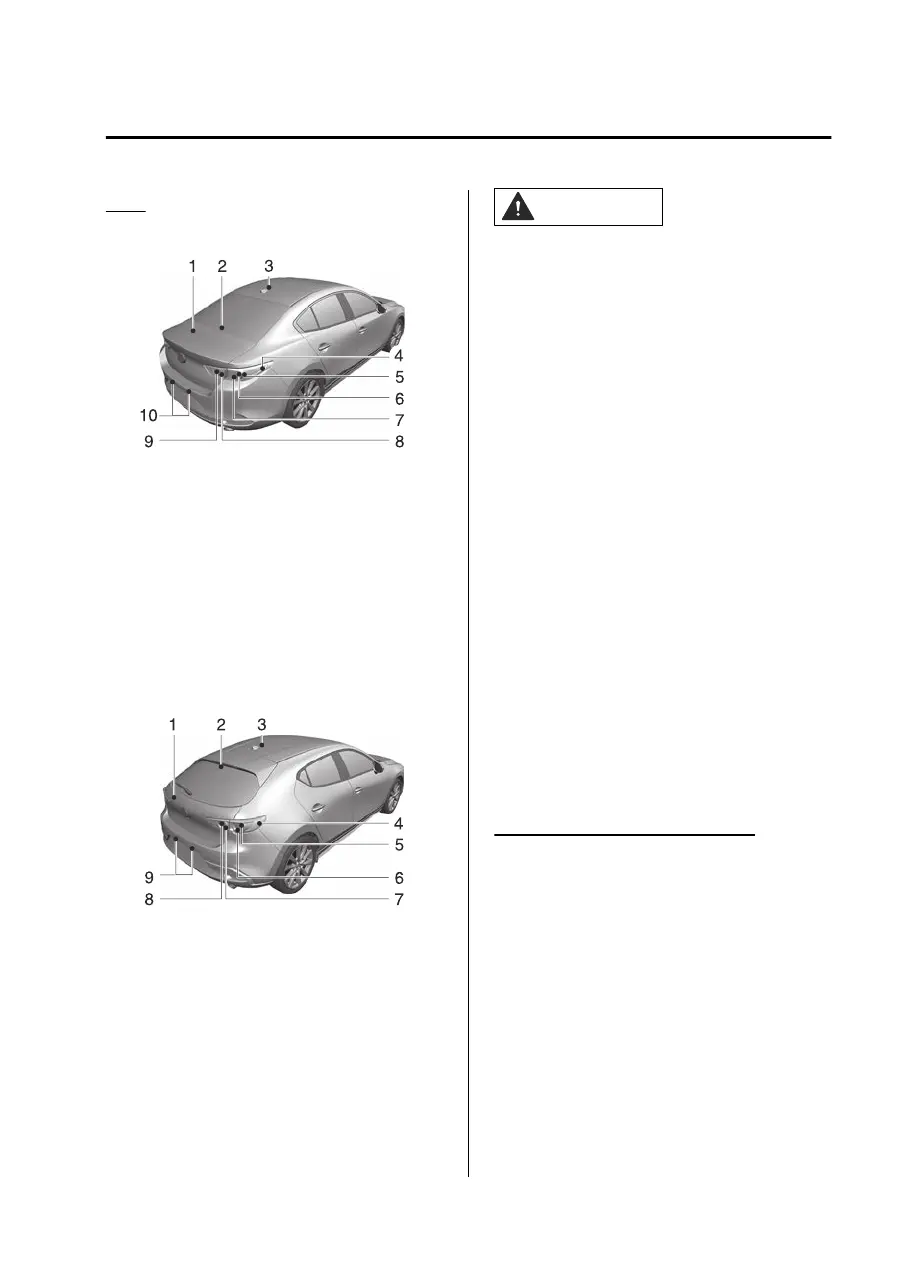

Rear
4–Door
1. Trunk light
2. High-mount brake light
3. Overhead light (Rear)
4. Rear side-marker lights
5. Brake lights/Taillights
*
6. Rear turn signal lights
7. Brake lights/Taillights
8. Taillights
*
9. Reverse lights
10.License plate lights
5–Door
1. Luggage compartment light
2. High-mount brake light
3. Overhead light (Rear)
4. Rear side-marker lights
5. Rear turn signal lights
6. Brake lights/Taillights
7. Taillights
*
8. Reverse lights
9. License plate lights
CAUTION
When removing the lens or lamp unit
using a flathead screwdriver, make sure
that the
flathead
screwdriver does not
contact the interior terminal. If the
flathead screwdriver contacts the
terminal, a short circuit may occur.
NOTE

When replacing a bulb, contact an
Authorized Mazda Dealer if
necessary.

Use the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.

For details regarding the installation
positions of the interior lights, refer
to the following:

Vanity mirror lights
Refer to Vanity Mirrors on page
7-32.

Overhead Lights/front map lights,
overhead light (rear), trunk light,
and luggage compartment light
Refer to Interior Lights on page
7-33.
Replacing Exterior Light Bulbs
LED type

Headlights

Daytime running lights

Parking lights (Type A)

Front turn signal lights

Front side-marker lights (Type A)

Side turn signal lights
*

High-mount brake light

Rear turn signal lights

Rear side-marker lights

Brake lights

Taillights

Reverse lights

License plate lights
