Form No. 8P95-EA-00G
Driving Your Mazda
5-54
45°
J94S5017

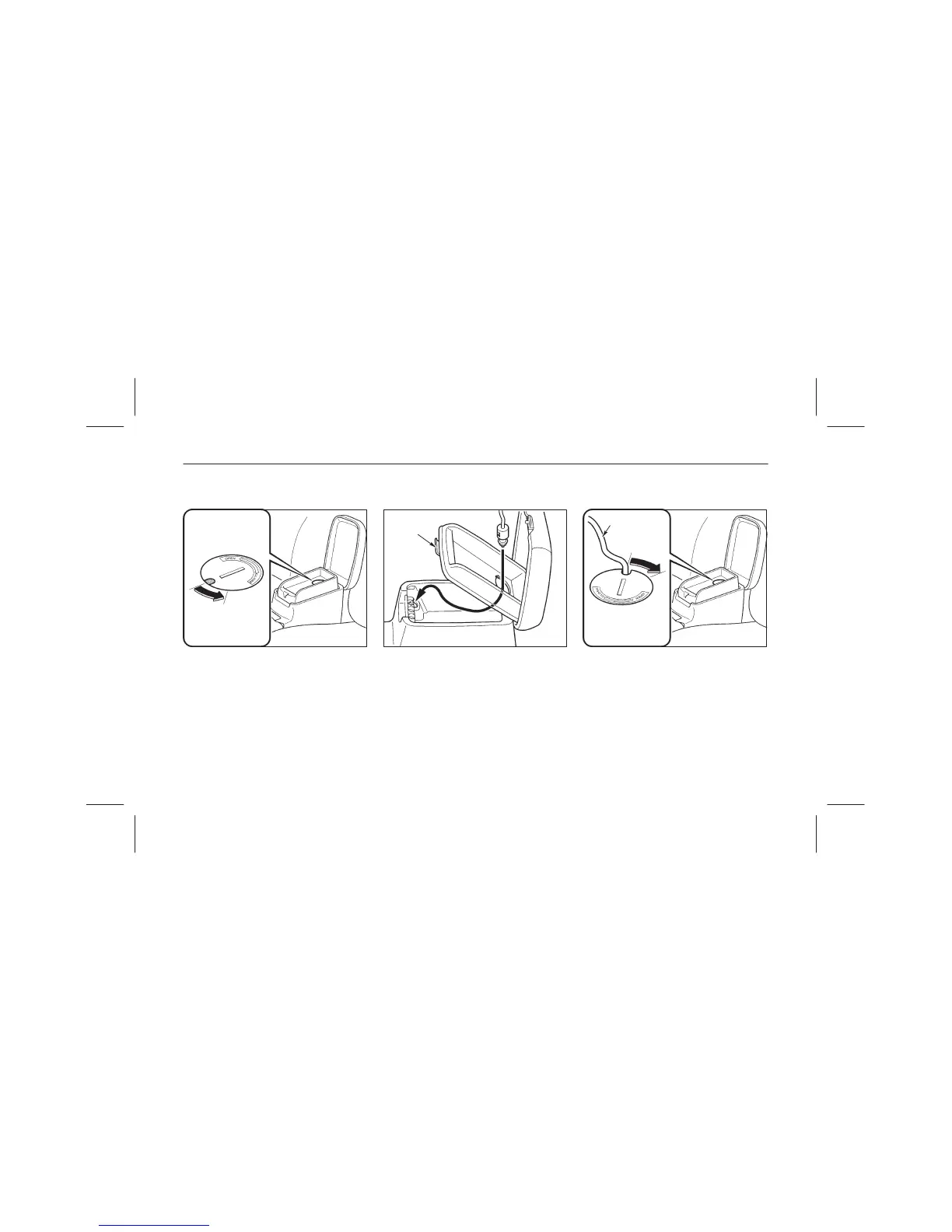

1. Using a coin, turn the cap
counterclockwise (about 45° from
the closed position) and remove it.
J94S5018
Release
catch
2. Open the tray by pulling the release
catch.
3. Pass the plug and the cord through
the hole of the tray and insert the
plug in the socket.
J94S5019
45°
Cord
4. Make sure the plug cord is running
through the cap slot, reinstall the
cap and turn it clockwise (about
45° to the opened position).
To Next Page
