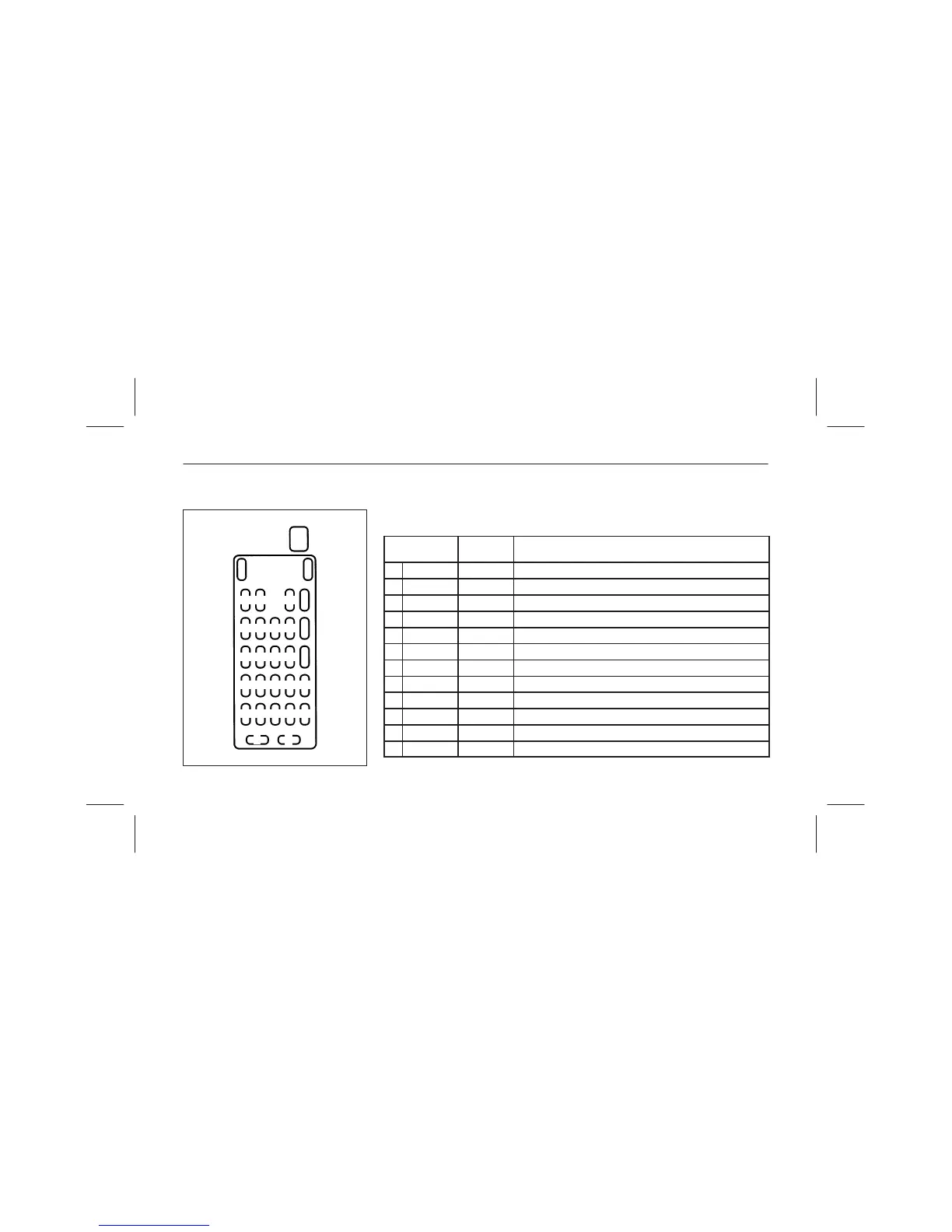

Mazda 626 - Fuse Panel (Driver’s Side)

Form No. 8P95-EA-00G
J94S.J94A5008_a
19 20 21
15 16 18
11 12 14
78 10
34 6
17
13
9
5
12
22
23
24
*Some models.
In Case of Emergency
6-14
▼ Fuse panel (driver’s side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 AUDIO 15A Audio system*
2 ROOM 15A Interior lights, Trunk light
3 S. ROOF 15A Sunroof*
4 METER 10A Gauges, Back-up lights
5 D. LOCK 30A Power door lock*
6 HAZARD 15A Hazard warning lights
7 A/B&ABS 10A Air bag system, Antilock brake system*
8 — — —
9 A/C 10A Air conditioner*
10 — — —
11 TURN 10A Turn signals
12 WIPER 20A Windshield wipers and washer
