2070LX Controller – User Manual 5
Version 1.0
2 2070-1C CPU MODULE
2.1 GENERAL DESCRIPTION
The 2070-1C CPU Module is the brain of the controller. It includes the microprocessor computer chip,
memory, serial communications and operating system. The 2070-1C is a module meeting the 2X WIDE
board requirements. The module is furnished normally resident in the Slot A5 of Motherboard.
The 2070-1C Assembly consists of a Printed Circuit Board Assembly and a front plate. The front plate is
attached to the board by using two screws and two washers.
The 2070-1C features a wide variety of communication options, such as serial and Ethernet for
connectivity in any kind of environment. Quick data transfers, firmware upgrades, and log retrievals can
be done via USB.
The 2070-1C microprocessor is a Freescale MPC8360.
It consists of a Host Board, an Engine Board and a faceplate (plus brackets, standoffs and hardware to fix
them to the host board).

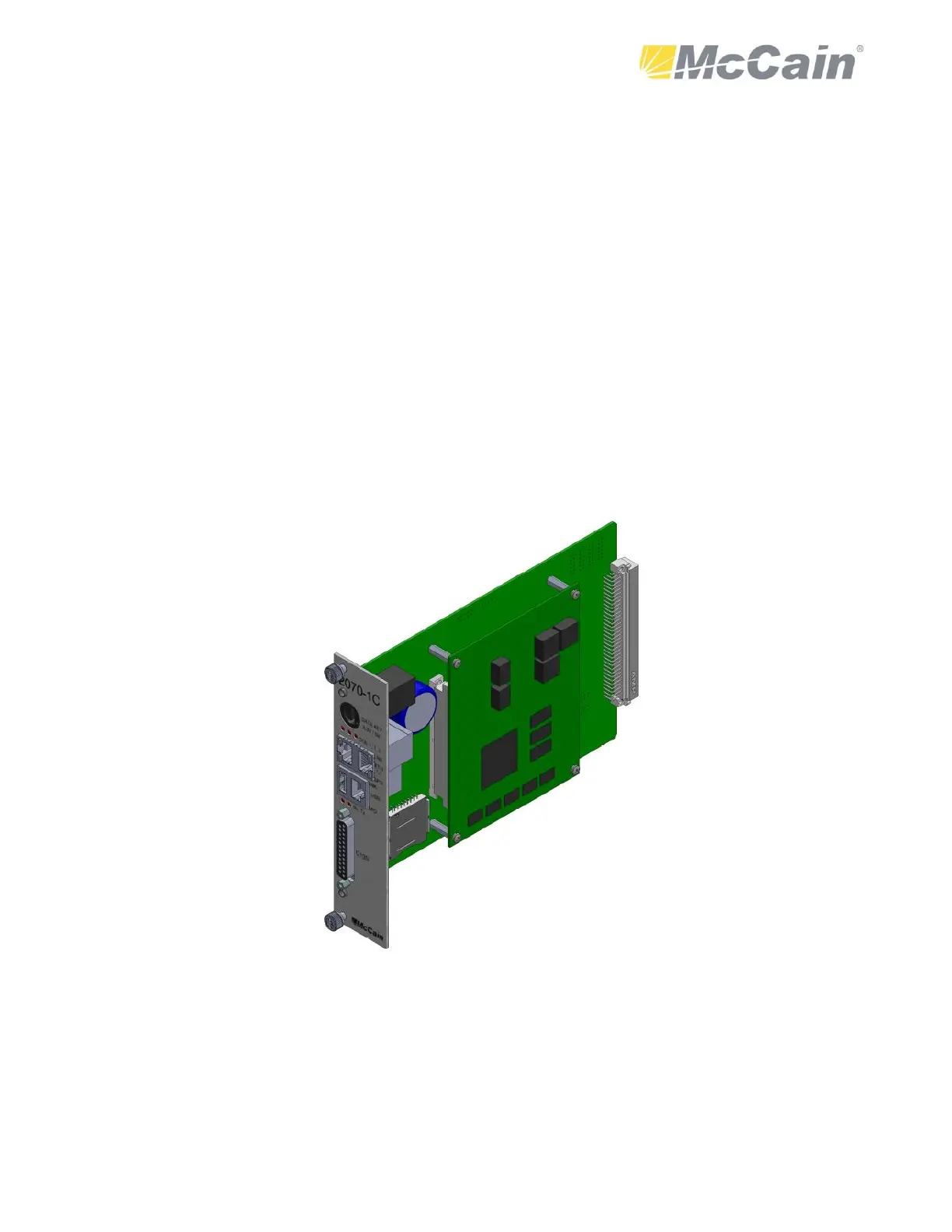

Figure 3: 2070-1C CPU Module
