58
5.4

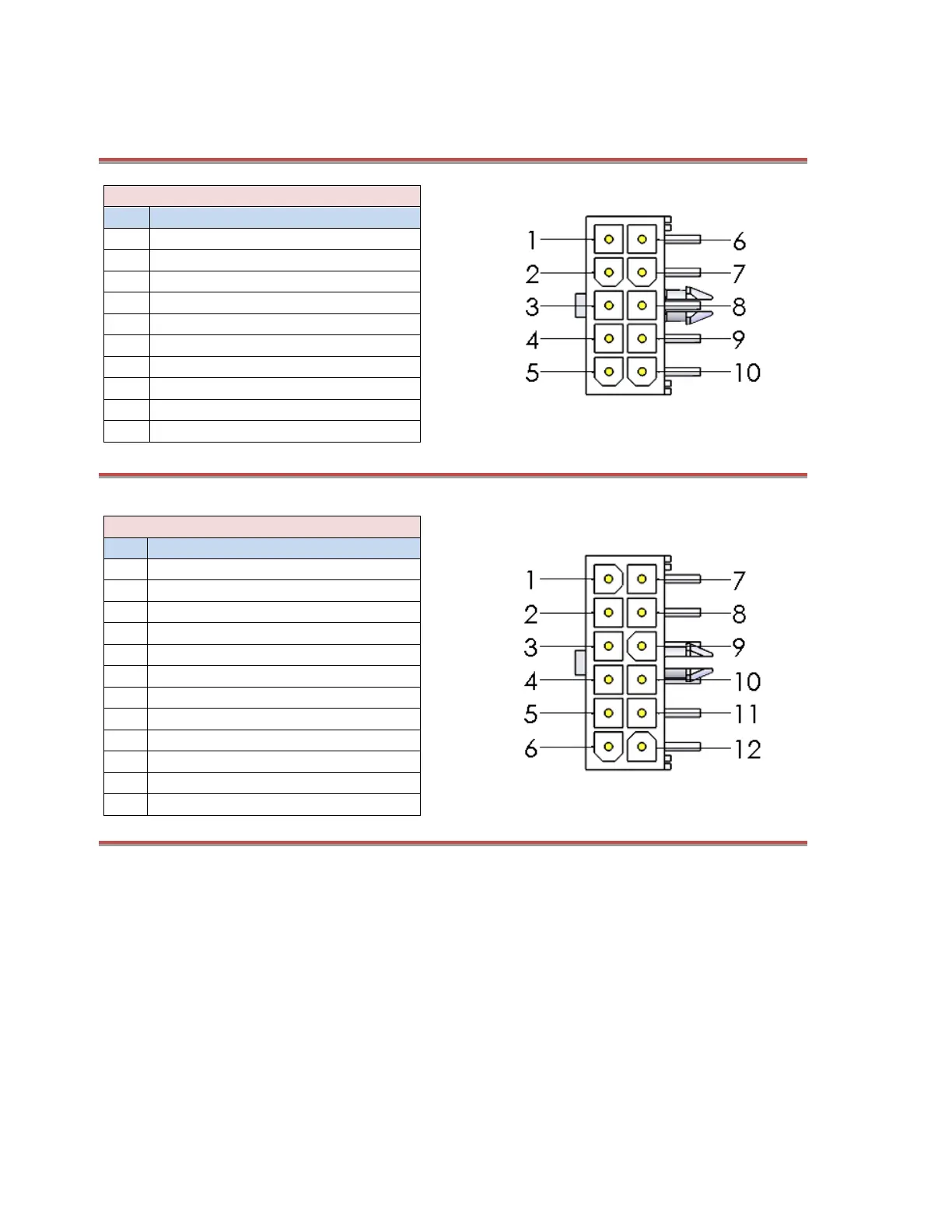

PS1 AND PS2
CONNECTORS’ PIN OUT
PS1 Connector
Pin
Function
1
+5 VDC
2
+12 VDC SERIAL
3
-12 VDC SERIAL
4
DC GND #1 (+5 VDC & 12
SERIAL)
5
+5 VDC STANDBY
6
+5 VDC SENSE
7
DC GROUND SENSE
8
AC FAIL (VME)
9
SYSRESET (VME)
10
nc
PS2 Connector
Pin
Function
1
+5 VDC
2
+12 VDC SERIAL
3
-12 VDC SERIAL
4
DC GND #1 (+5 VDC & 12
SERIAL)
5
+5 VDC STANDBY
6
+12 VDC
ISO
7
DC GND (+12 VDC ONLY
)
8
POWER DOWN / AC FAIL
9
POWER UP / SYS RES
ET
10
EQUIPMENT GROUND
11
LINESYNC
12
nc
