McCain 2070LX User Manual

32
2.7 2070-1C MODULE DIMENSIONS
The 2070-1C CPU Module has the following dimensions:

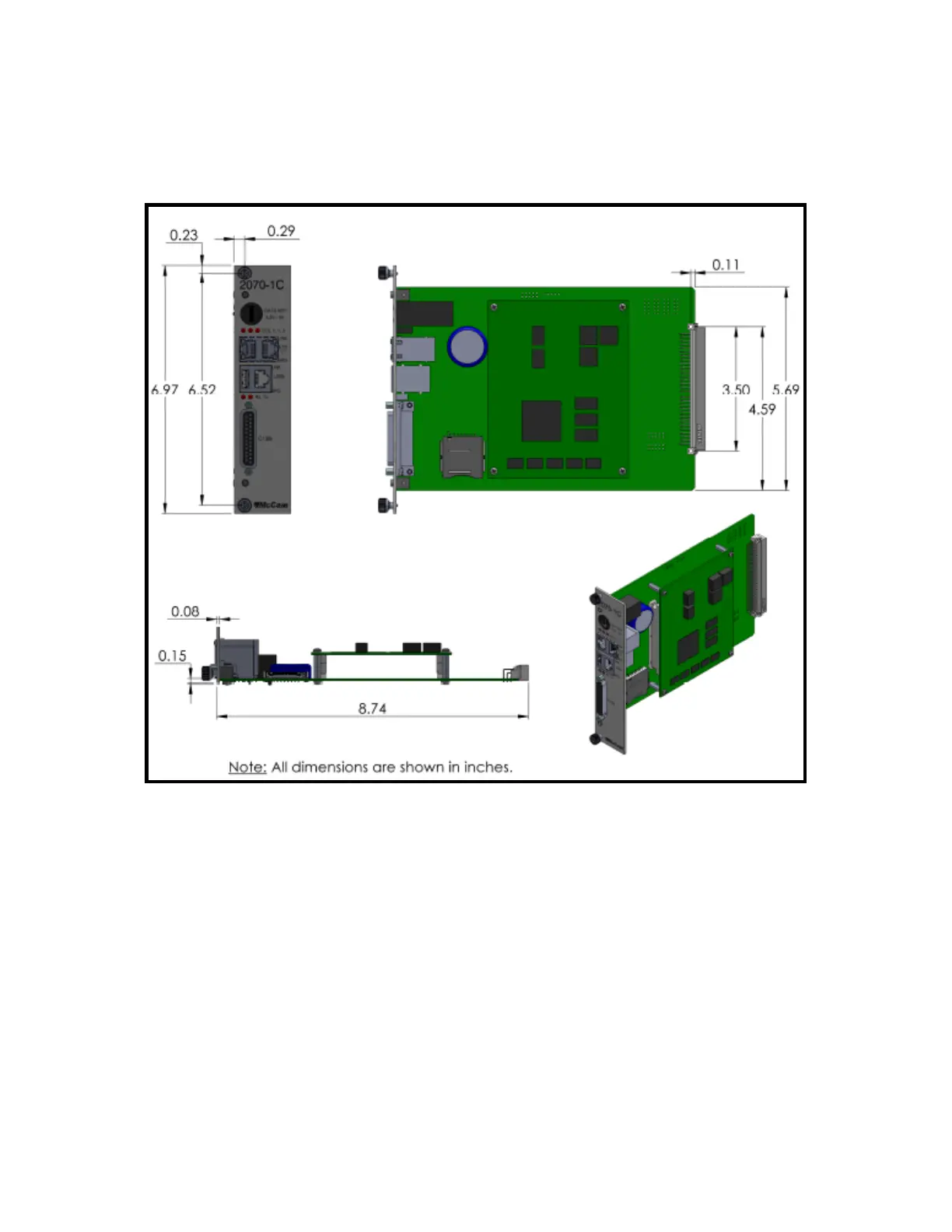

Figure 4: 2070-1C CPU dimensions.
2.8 ADJUSTMENT
The 2070-1C Module has no adjustments to be applied.
2.9 INSTALLING THE 2070-1C CPU MODULE
Follow these steps to complete the 2070-1C Module installation into the Controller.
Turn off the controller using the power switch located in the front plate of 2070-4A Module.
Slide the 2070-1C CPU into slot A5 thru the card guides. Press the module into the backplane and tighten
the thumbscrews until the CPU module is secure.
