2070LX Controller – User Manual 29
Version 1.0
2.6 CONNECTORS’ PIN OUT

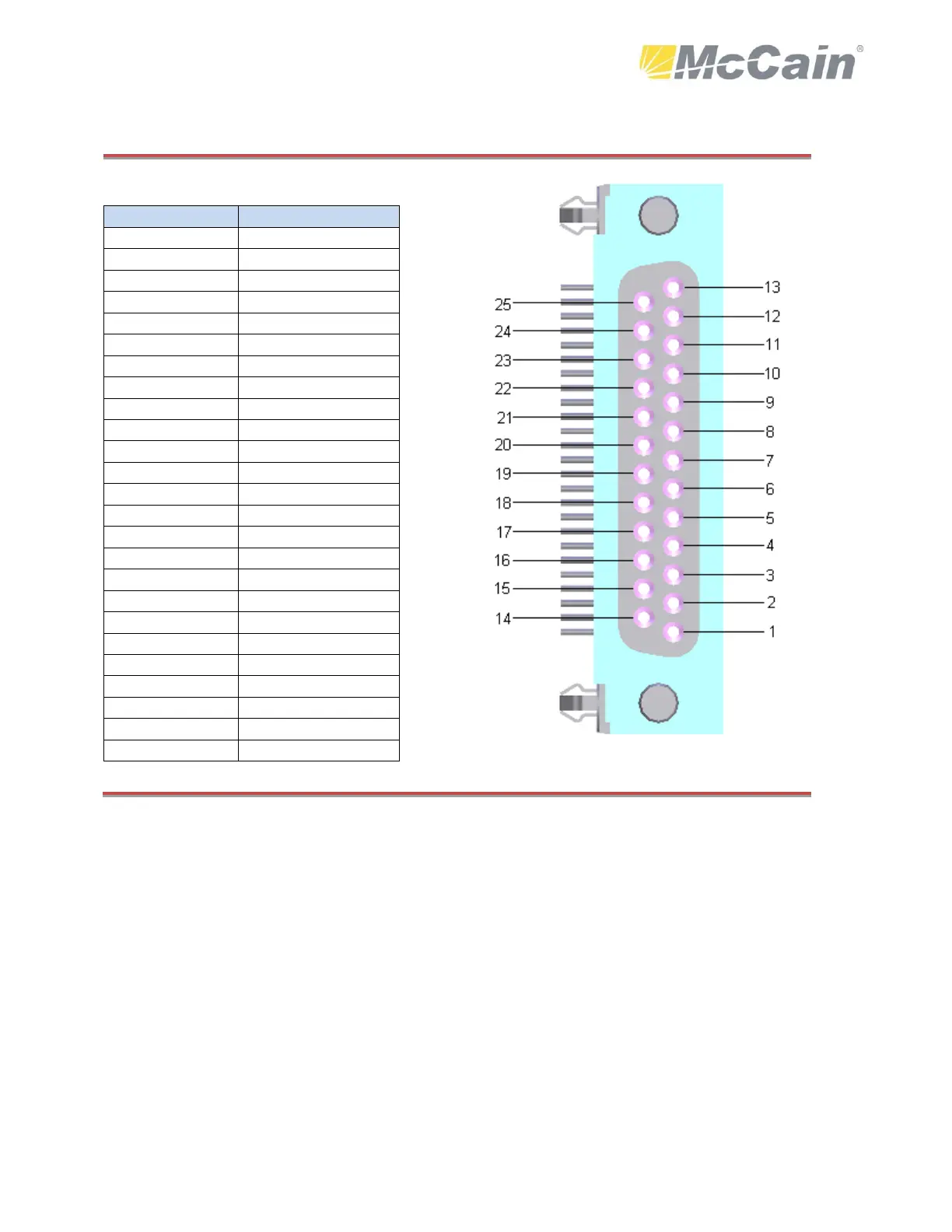

C13S Connector (DB25 Female):
Pin
Function
1
SP8_TxD+
2
SP8_RxD+
3
SP8_TxCLK+
4
SP8_RxCLK+
5
SP8_RTS+
6
SP8_CTS+
7
SP8_DCD+
8
N/A
9
LINESYNC+
10
NRESET+
11
POWERDN+
12
ISO+5VDC
13
ISOGND
14
SP8_TxD-
15
SP8_RxD-
16
SP8_TxCLK-
17
SP8_RxCLK-
18
SP8_RTS-
19
SP8_CTS-
20
SP8_DCD-
21
N/A
22
LINESYNC-
23
NRESET-
24
POWERDN-
25
FGND
