44
3.5 2070-2E+ MODULE DIMENSIONS
The 2070-2E+ Field I/O has the following dimensions

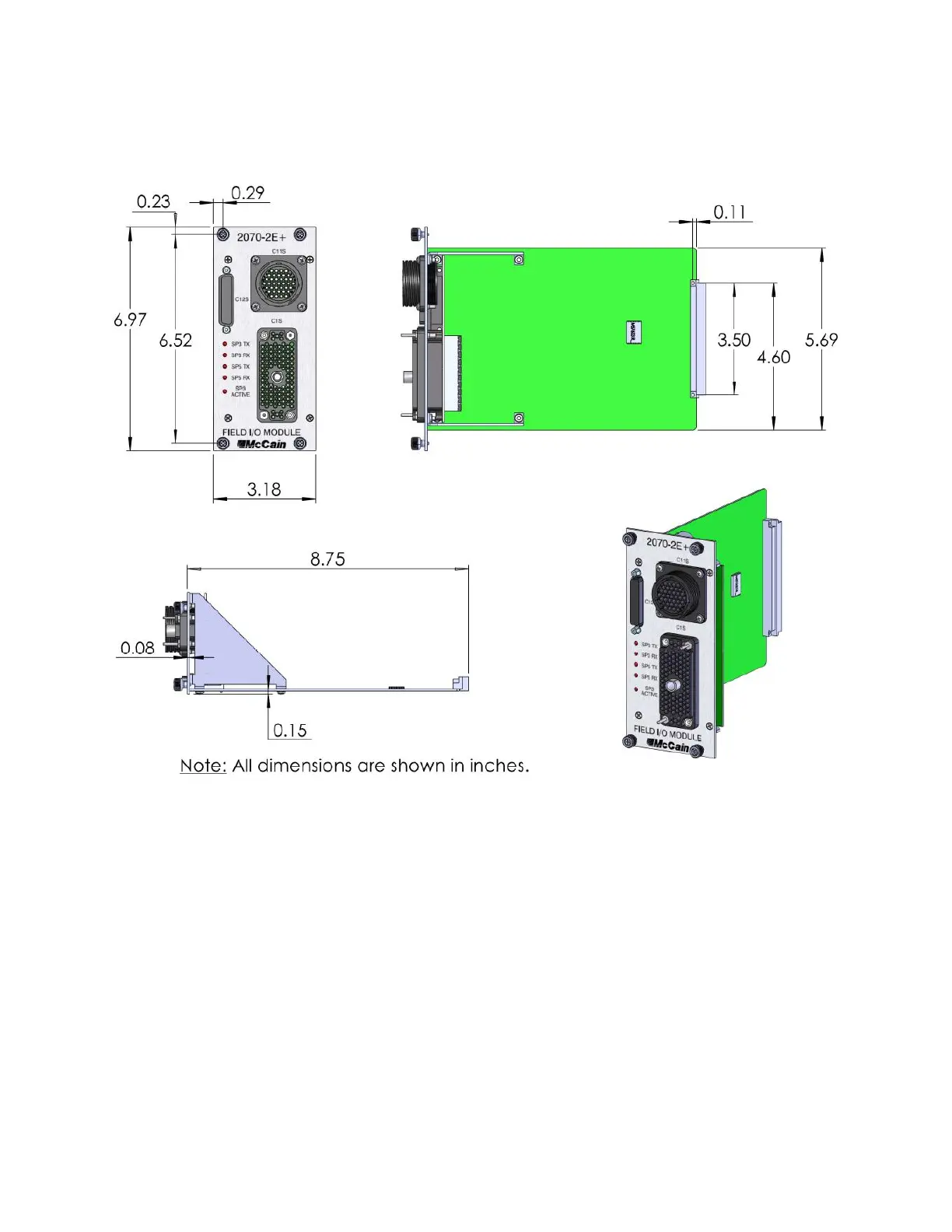

Figure 6: 2070-2E+ Dimensions
3.6 INSTALLING THE 2070-2E+ MODULE
Normally the module is attached to the controller, but this section contains information of installation of
the 2070-2E+ in case it is not.
1. Turning off the controller using the power switch located in the front plate of 2070-4A Module.
2. Slide the 2070-2E+ into slot A3 thru the car guides. Press the module into the backplane; tighten
the thumbscrews until the module is secure.
These steps complete the 2070-2E+ installation into the 2070LX Controller.
