2070
LX Controller
–
User Manual
65
Version 1.0
6.4
CONNE
CTORS’ PIN OUT

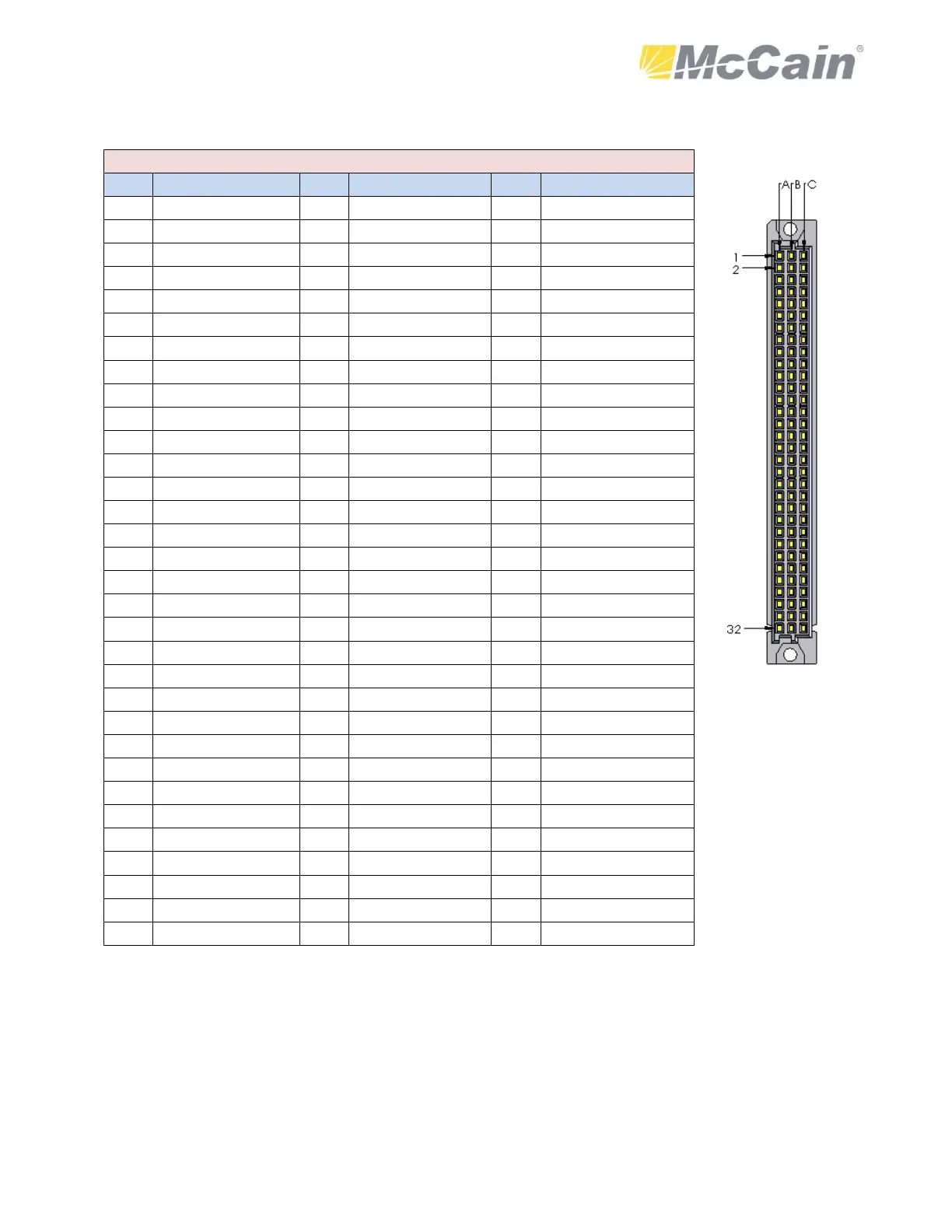

A1 Connector
Pin
Function
Pin
Function
Pin
Function
A1
SP3TXD+
B1
SP6TXD+
C1
SP5TXD+
A2
SP3TKD-
B2
SP6TXD-
C2
SP5TXD-
A3
SP3RXD+
B3
SP6RXD+
C3
SP5TXC+
A4
SP3RXD-
B4
SP6RXD-
C4
SP5TXC-
A5
SP3RTS+
B5
SP3TXCO+
C5
SP5RXD+
A6
SP3RTS-
B6
SP3TXCO-
C6
SP5RXD-
A7
SP3CTS+
B7
SP3TXCI+
C7
SP5RXC+
A8
SP3CTS-
B8
SP3TXCI-
C8
SP5RXC-
A9
SP3DCD+
B9
SP3RXC+
C9
SP3TXD+
A10
SP3DCD-
B10
SP3RXC-
C10
SP3TXD-
A11
SP4TXD+
B11
SP4TXD+
C11
SP3RXD+
A12
SP4TXD-
B12
SP4TXD-
C12
SP3RXD-
A13
SP4
RXD+
B13
SP4RXD+
C13
SP3RTS+
A14
SP4RXD-
B14
SP4RXD-
C14
SP3RTS-
A15
~
B15
~
C15
SP3CTS+
A16
~
B16
~
C16
SP3CTS-
A17
~
B17
~
C17
SP3DCD+
A18
~
B18
~
C18
SP3DCD-
A19
~
B19
~
C19
SP3TXCO+
A20
~
B20
~
C20
SP3TXCO-
A21
DCG#1
B21
C50ENABLE
C21
SP3TXCI+
A22
NETWK1
B22
~
C22
SP3RXCI-
A23
NETWK2
B23
~
C23
SP3RXC+
A24
~
B24
LINESYNC
C24
SP3RXC-
A25
NETWK3
B25
POWERUP
C25
CPURESET
A26
NETWK4
B26
POWERDOWN
C26
CPU LED
A27
DCG#1
B27
DCG#1
C27
DCG#1
A28
+12VDCSERIAL
B28
-12VDCSERIAL
C28
+5V
DCSTANDBY
A29
5VDC
B29
+5VDC
C29
+5VDC
A30
DCG#1
B30
DCG#1
C30
DCG#1
A31
+12VDC
B31
+12VDC
C31
+12VDC
A32
DCG#2
B32
DCG#2
C32
DCG#2
