2070
LX Controller
–
User Manual
49
Version 1.0
4.4

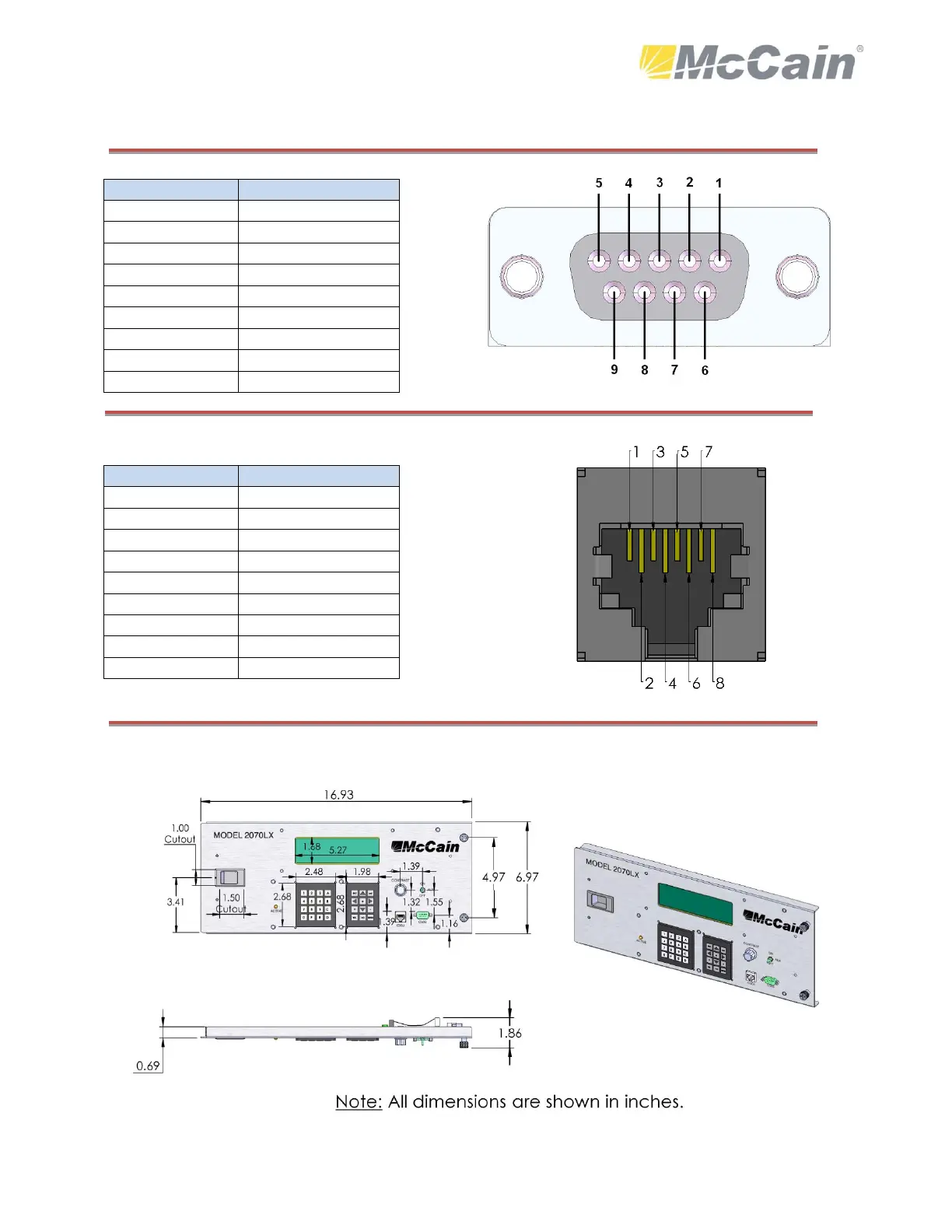

CONNECTORS’ PIN OUT
Connector C50S (DB9 Female):
Pin
Function
1
C50 Enable
2
SP4 RxD
3
SP4 TxD
4
nc
5
DCG #1
6
nc
7
nc
8
nc
9
nc
Connector C50J (RJ45):
Pin
Function
1
C50 Enable
2
SP4 RxD
3
SP4 TxD
4
Nc
5
DCG #1
6
Nc
7
Nc
8
Nc
9
Nc
4.5
2070LX
MODULE DIMENSIONS
Figure 8
:
2070LX Dimen
sions
56
58
