30

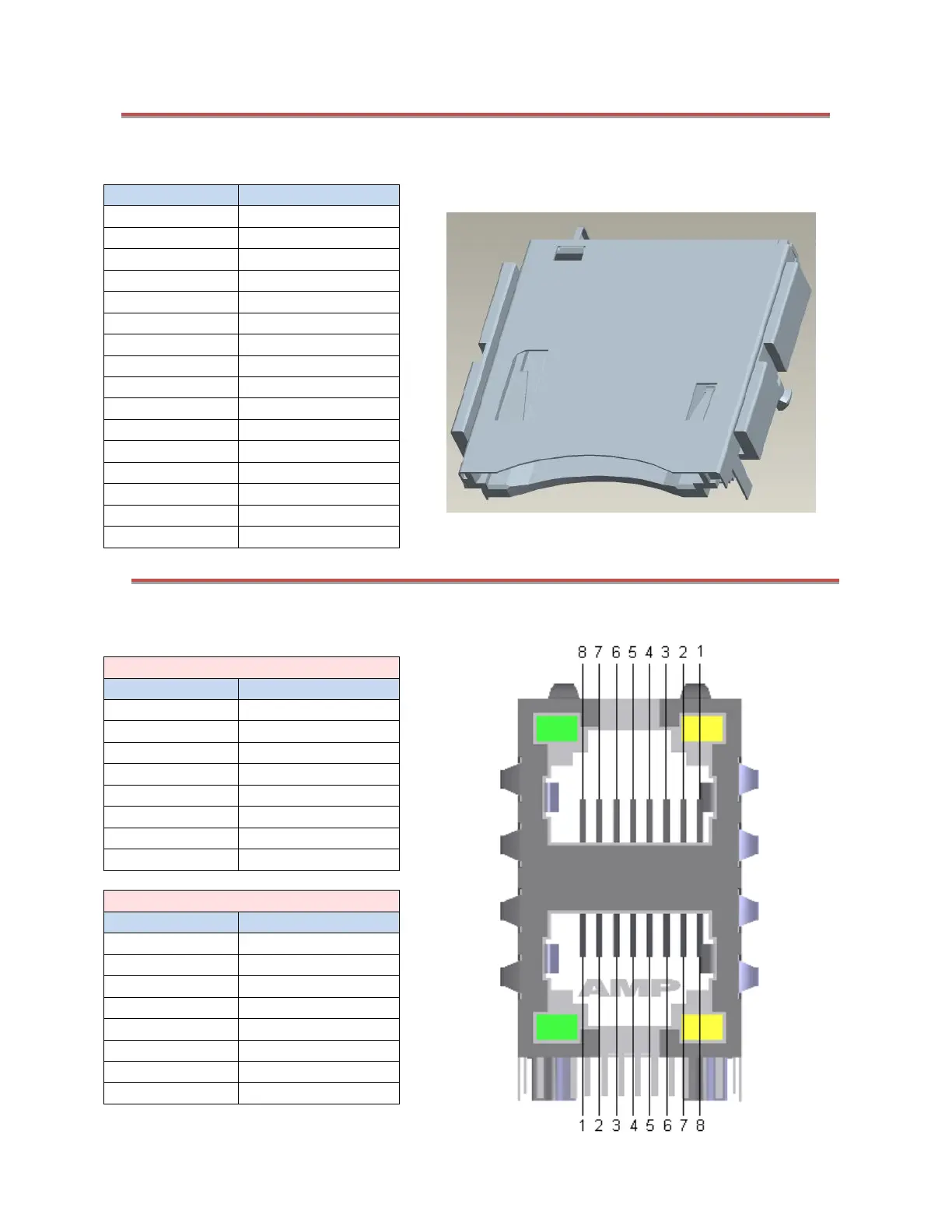

SD Card Receptacle:
Pin
Function
1
CS/ DAT3
2
CMD/ MOSI
3
VSS
4
VDD
5
SD_CLK
6
VSS
7
DAT0/ MISO
8
DAT1
9
DAT2
10
CD_SW
11
CD_WP_COMMON
12
CD_WP
13
FGND
14
FGND
15
NC
16
NC
Ethernet Connector, E
TH 1/1 (RJ45):
ENET 1 Port 1 (Up)
Pin
Function
1
Tx+
2
Tx
-
3
Rx+
4
Unused
5
Unused
6
Rx
-
7
Unused
8
Unused
ENET 1 Port 2 (Down)
Pin
Function
1
Tx+
2
Tx
-
3
Rx+
4
Unused
5
Unused
6
Rx
-
7
Unused
8
Unused
