Output Wiring Connection

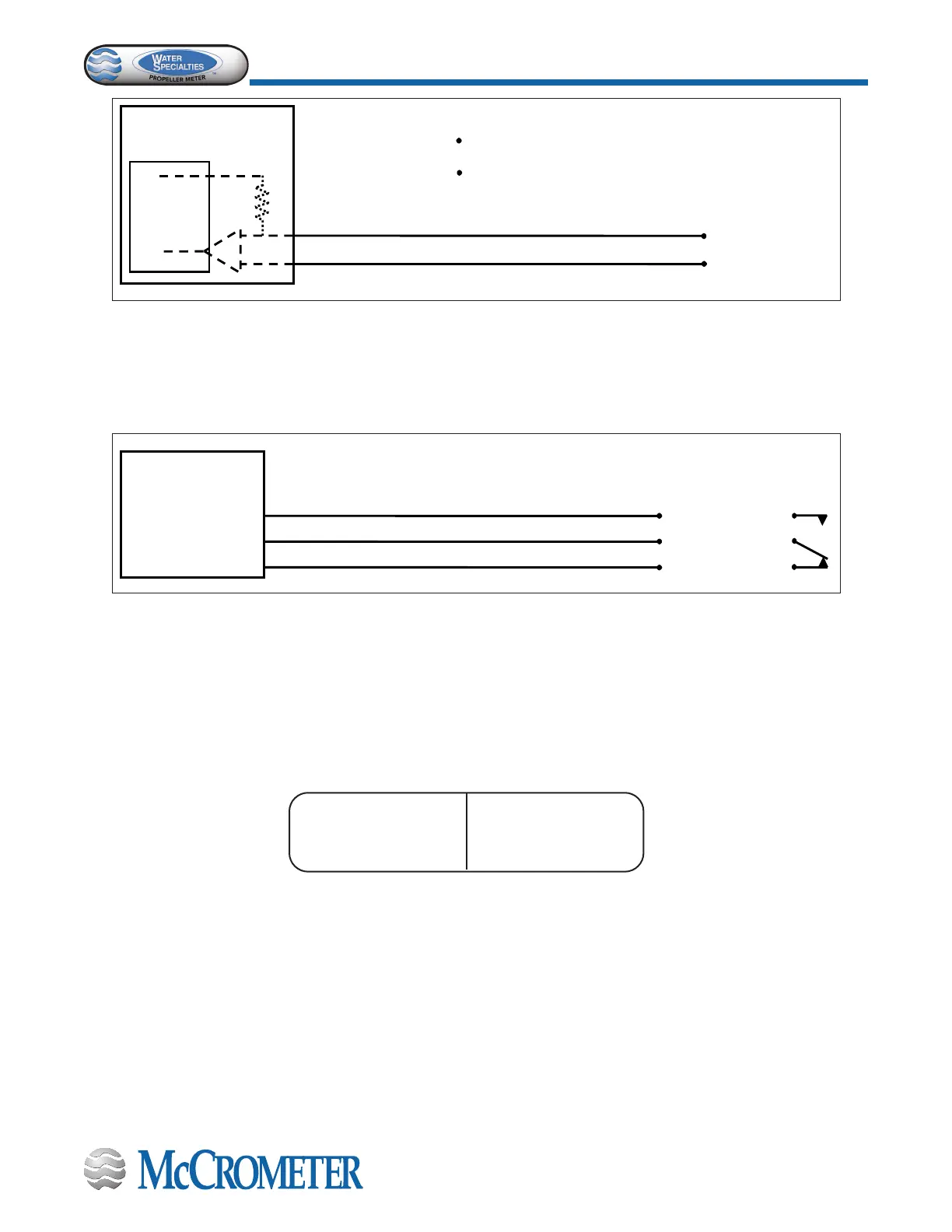

Figure 12. Output Type: Open Collector Powered by Instrument with Internal Resistor
Housing Label: 2 (Figure 14)
(+)
PLC or Counter with
Isolated Power Supply
12-40VDC
FC100 Output Cable
(-)
WHITE (+)(OC+)
GREEN (-)(OC-)
Notes:
Power Supply Must Be Isolated.
Open Collector Only To Be Used With
Battery-Powered Units.
Figure 13. Output Type: Dry Contact Switch Closure
Housing Label: 2 (Figure 14)
Instruments That
Accept Switch
Closure Inputs,
e.g. Irrigation
Controllers
FC100 Output Cable
WHITE (COMMON)
BROWN (N.C)
GREEN (N.O)
4-20mA RELAY MAX. 30V 1A
12-30V WHT - COMMON
RED+ BKL - GRN - NO BRN - NC
Figure 14. Enclosure Label 2
“4-20mA / Switch Closure”
FC101 Output Cable
FC101 Output Cable
To Next Page
