30119-50 Rev. 2.2 | 23JUL2020
Page 4
INSTALLATION

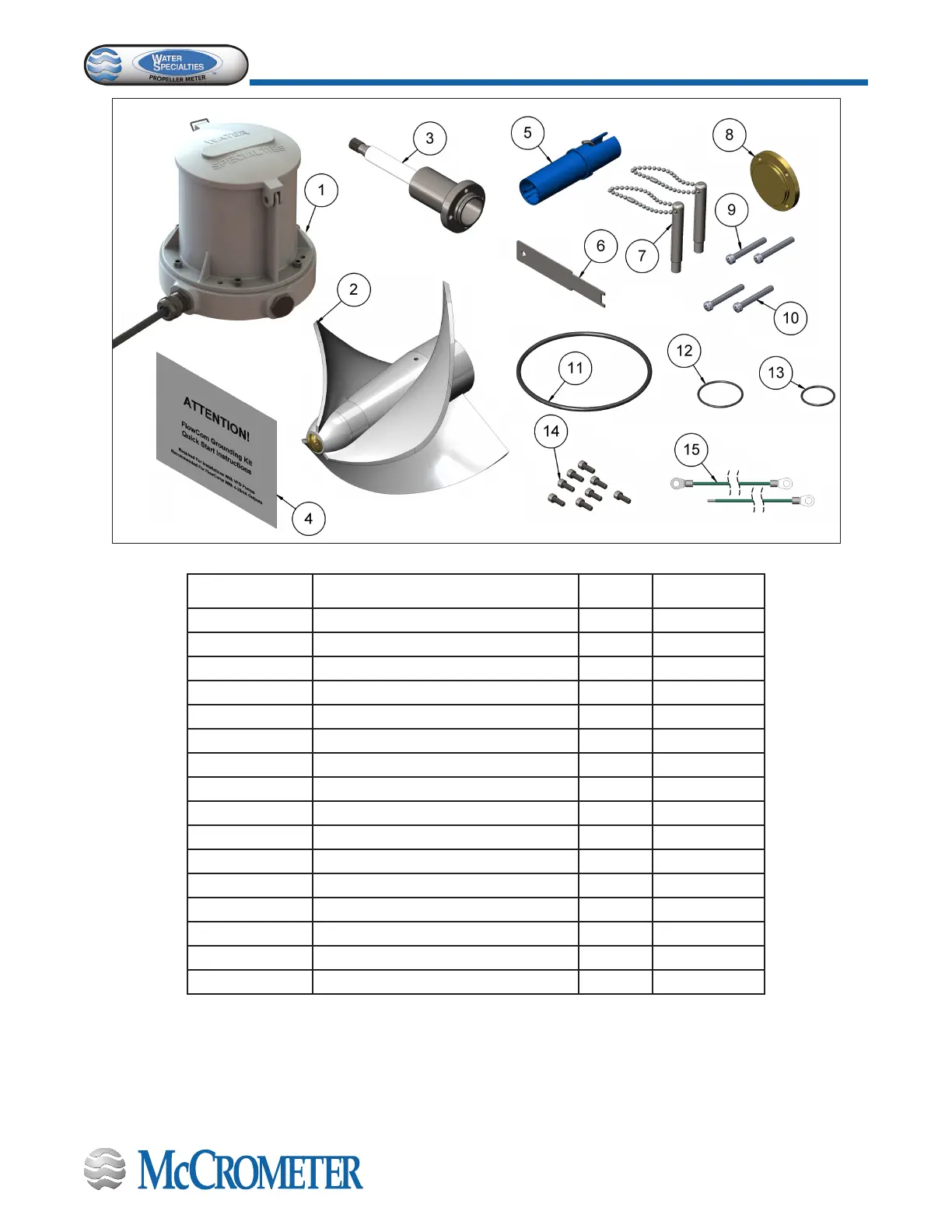

Figure 3. Conversion Kit - FC101-01-K, FC101-02-K, FC101-03-K, Meter Mount
Parts Diagram Description Quantity Part Number
1 FlowCom Unit 1 FC101-01
2 Propeller Assembly 1
Bagged parts:
3 Separator 1 4-2455-2-D
4 Grounding Kit Instructions 1 30110-18
5 Sensor 1 4-2745-2
6 Reverse Thrust Brg Tool 1 T2402X-1
7 Magnet Wand 2 FC100-M
8 Back Plate 1 2-2731-SS
9 Screw 10-32 x 1.25” Long 2 10730
10 Screw 10-32 x 1.25” Long w/hole 2 10830
11 O-Ring (243 Buna) 1 1-1551-38
12 O-Ring (028 Buna) 1 1-1551-2
13 O-Ring (022 Buna) 1 1-1551-24
14 Screw 8-32 x 7/16 SOC HD 8 1-1103-8-7
15 Green Wire 1 3-2757-FCW
To Next Page
