Connecting to the Tractor

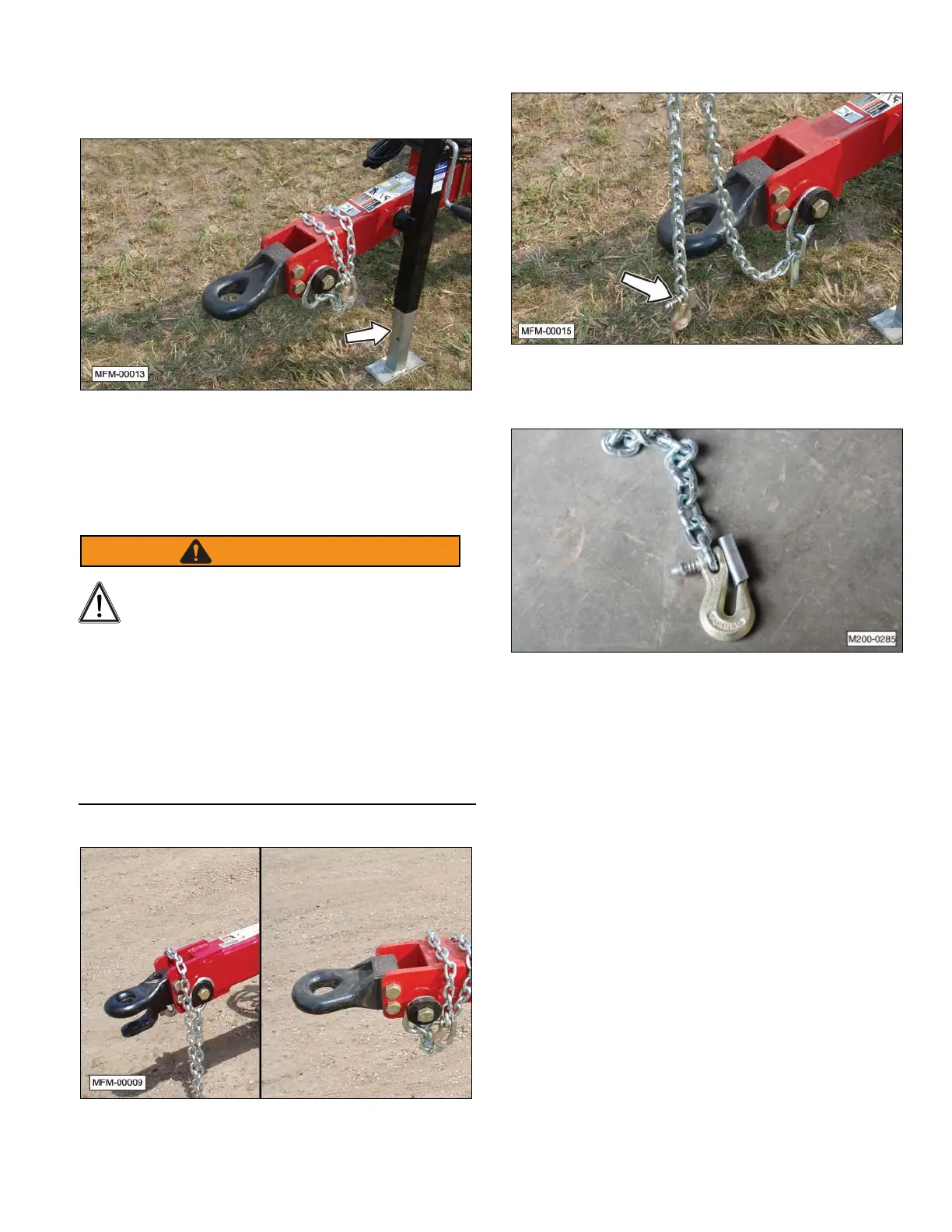

1. Raise the jack stand and connect the tongue to the
tractor. The tongue weight of the unit is approximately
700 lbs. (318 kgs).
Note: If a drawbar pin is used, it should be an OEM
certifi ed pin and retainer clip. On category 3 pintle
hitches use a 1-1/2” (38 mm) pin. On category 3
clevis hitch use a 1-1/4” (32 mm) pin. On category
4 pintle hitch use a 2” (51 mm) pin.
WARNING
Unexpected Separation Hazard
If towing the unit with a drawbar, use only a
certifi ed, hardened drawbar pin with a retainer
clip. Do not use homemade pins, bolts, or any other
type of retaining device. Always install the retainer
clip, making sure the hitch and unit are securely
fastened to the tow vehicle.
Using a pin not intended for this type of towing can
result in unexpected separation of the unit from the
tow vehicle, resulting in equipment damage and
personal injury.
2. Connect the hitch of the unit to the tractor. Attach the
tow chain to the tractor’s draw bar cage.
Note: When connected, make sure the retaining plate
securely locks the chain link in place.
