McFarlane 4100 Series - Hub Components for RT-2171

Hub Components for RT-2171

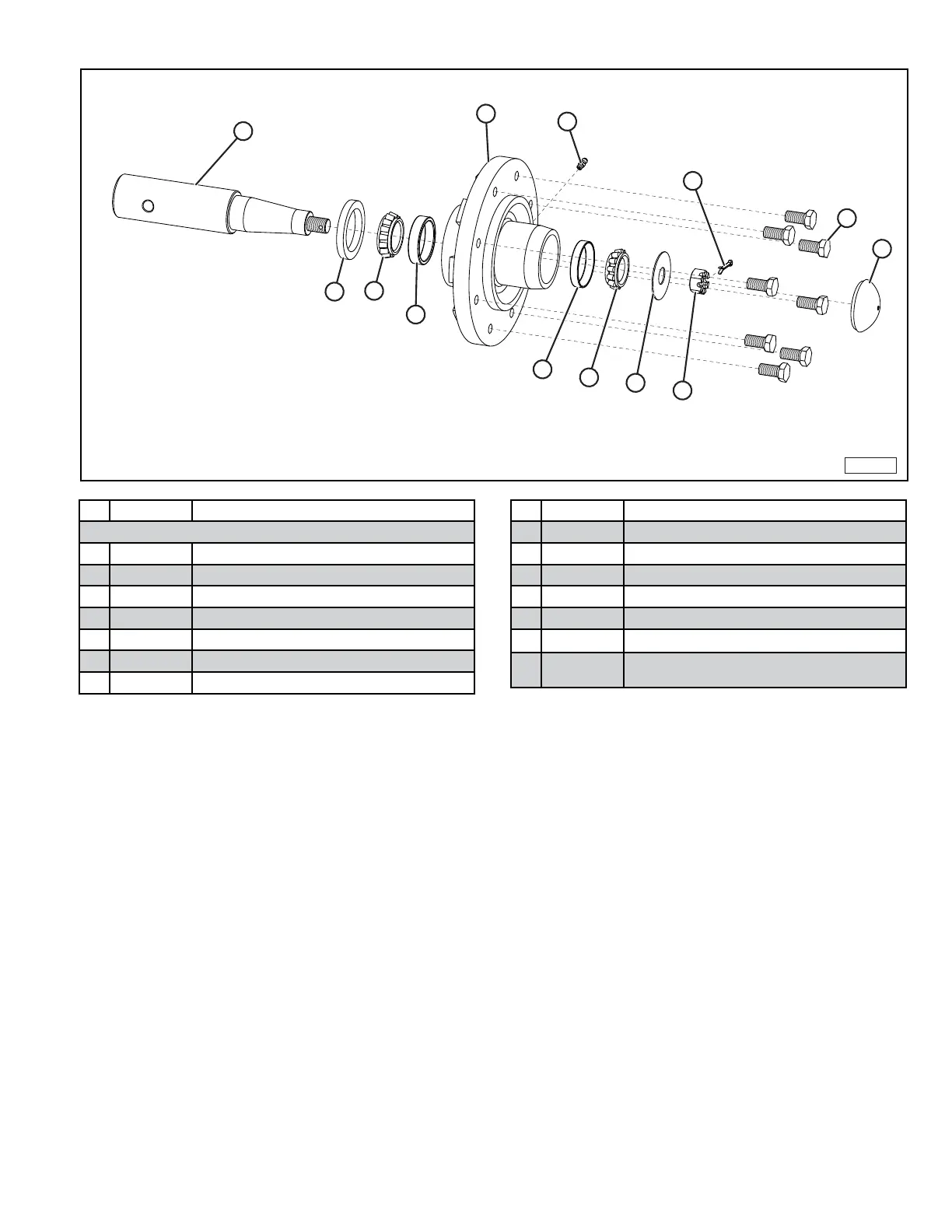

MFM-00104
5
8
1
7
12
3
2
4
10
11
13
9
6
Item Part Number Description
8-HOLE HUB, 4500 LB (12.5L/31 X 13.5-15 x 10 RIM)
1 RT-2170 SPINDLE, 2-1/4 X 11-1/2
2 RT-2172 GREASE SEAL, 8 HOLE HUB
3 RT-2173 INNER BEARING
4 RT-2169 INNER RACE
5 RT-2174 HUB WITH RACES, 8 HOLE HUB
6 GZ-0601 GREASE ZERK
7 HD-1171 OUTER RACE
Item Part Number Description
8 HD-1363 OUTER BEARING
9 RT-2176 SPINDLE FLAT WASHER, 13/16
10 RT-2177 SPINDLE HEX CASTLE NUT, 3/4 - 16
11 CP-5312 COTTER PIN (0.150 X 1-1/4)
12 WB-5610 WHEEL BOLTS, 9/16 – 18 X 1 11/16
13 RT-2178 DUST CAP
— RT-2171 8-HOLE HUB ASSEMBLY (Includes items
2,3,5,8,13)
