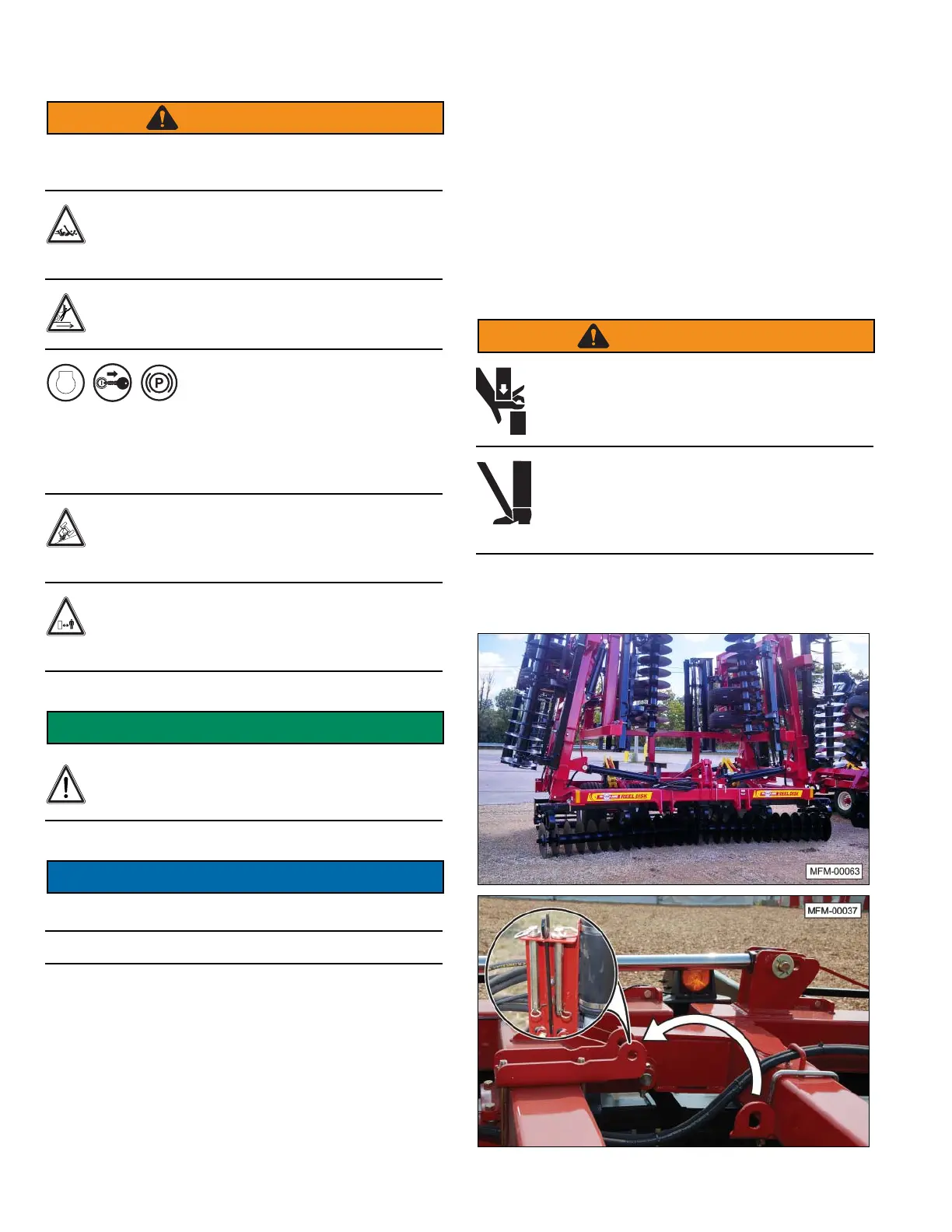

Reel Disk from McFarlane Mfg. 22 800-627-8569
Operation
Safety
WARNING
To prevent serious injury or death, follow these
safety instructions
Entanglement Hazard
Keep hands and clothing clear of moving
parts.
Crush Hazard (Rolling Over)
Do not clean, lubricate, or make adjustments
while the unit is moving.
STOP
Crush Hazard (Rolling Over)
When making adjustments to the
unit or leaving the operator’s seat:
1. Stop the tractor.
2. Shut off the engine and remove the ignition key.
3. Set the brakes.
Overturn Hazard
Pick the levelest possible route when
transporting across fi elds. Avoid the edges of
ditches or gullies and steep hillsides.
Safe Distance
Keep all bystanders, pets, and livestock clear
of the work area, particularly when raising or
lowering the unit.
SAFETY
INSTRUCTIONS
Periodically clear the unit of brush, twigs, or
other materials to prevent buildup of dry,
combustible materials.
NOTICE
DO NOT turn while the unit is in the ground.
DO NOT operate the unit in frozen ground.
Initial Setup
The McFarlane Reel Disk is a tool that is designed
to handle a wide variety of fi eld conditions. It has
many adjustments that can be made to change the
performance of each component on the unit as well as its
overall performance. Achieving the best results over the
widest range of circumstances can be accomplished by
making adjustments to match the fi eld conditions.
Note: It is important to make one adjustment at a time in
order to see the results of each change. If several
adjustments are made at the same time, the
operation of the machine can change dramatically,
creating confusion and frustration.
WARNING
Pinch Point Hazard
Do not place hands or fi ngers between
moving and/or stationary parts. The weight of
the unit will easily cause serious bodily injury.
Sharp Object Hazard
Do not place any part of your body under
the disk gang during the adjustment
process. Severe injury will occur if a
person contacts or falls under the disk gang.
1. If equipped with wings, remove the wing fold lock pins
and bridge pins and store them on the hitch storage
bracket.
To Next Page
