McFarlane 4100 Series - Lift Arm for RD-4100 Series

Reel Disk from McFarlane Mfg. 68 800-627-8569

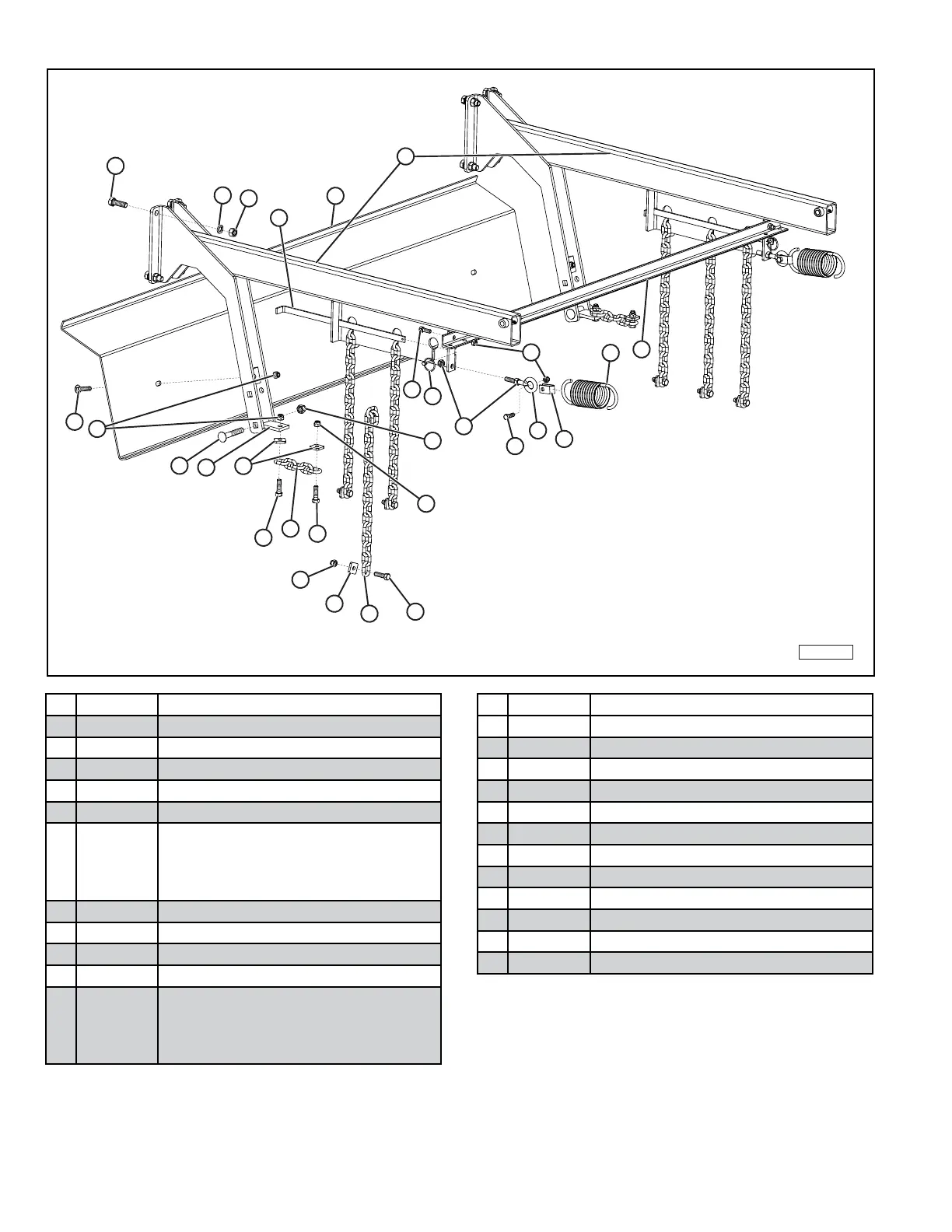

Lift Arm for RD-4100 Series
1
2
3
4
7
12
5
5
14
13
20
15
17
6
19
16
17
5
10
11
23
9
8
22
21
22
18
16
16
MFM-00090
Item Part Number Description
1 BH-6320 5/8-11 X 2 GRADE 5 HEX BOLT
2 LW-0063 5/8 LOCK WASHER
3 NH-6311 5/8-11 HEX NUT
4 BC-5020 1/2 X 2 GRADE 5 CARRIAGE BOLT
5 NLT-5013 1/2-13 TOP LOCK NUT
6
RD-4615
RD-4616
RD-4617
RD-4618
RD-4619
DEBRIS SHROUD – 51”
DEBRIS SHROUD – 62”
DEBRIS SHROUD – 73”
DEBRIS SHROUD – 84”
DEBRIS SHROUD – 95”
7 RD-5067 LIFT ARM, 3 BAR
8 EB-1203 EYE-BOLT, 1/2 X 3
9 N-021 LOCK CLIP
10 RBH-0308 PIVOT PLATE TENSION SPRING
11
RD-5071
RD-5072
RD-5073
RD-5074
RD-5075
BRACE ANGLE, 35 – 3/8”
BRACE ANGLE, 46 – 3/8”
BRACE ANGLE, 57 – 3/8”
BRACE ANGLE, 68 – 3/8”
BRACE ANGLE, 79 – 3/8”
Item Part Number Description
12 NH-5013 1/2-13 HEX NUT
13 BC-6340 5/8 X 4 CARRIAGE BOLT
14 NLT-6311 5/8-11 TOP LOCK NUT
15 FA-4105 PULL HOOK
16 BH-5018 1/2 – 13 X 1-3/4 GRADE 5 HEX BOLT
17 HDD-016 SQUARE WASHER, 1/2”
18 CH-0805 5 LINK PULL CHAIN
19 CH-0818 18 LINK LIFT CHAIN
20 RD-5094 LIFT CHAIN BRACKET LOCK
21 PC-1913 CLICK PIN, 3/16 X 1 9/16
22 BH-4413 7/16 – 14 X 1-1/4 GRADE 5 HEX BOLT
23 NLT-4414 7/16 - 14 TOP LOCK NUT
