McFarlane 4100 Series - Wing Fold Hydraulics for RD-4135

Reel Disk from McFarlane Mfg. 78 800-627-8569

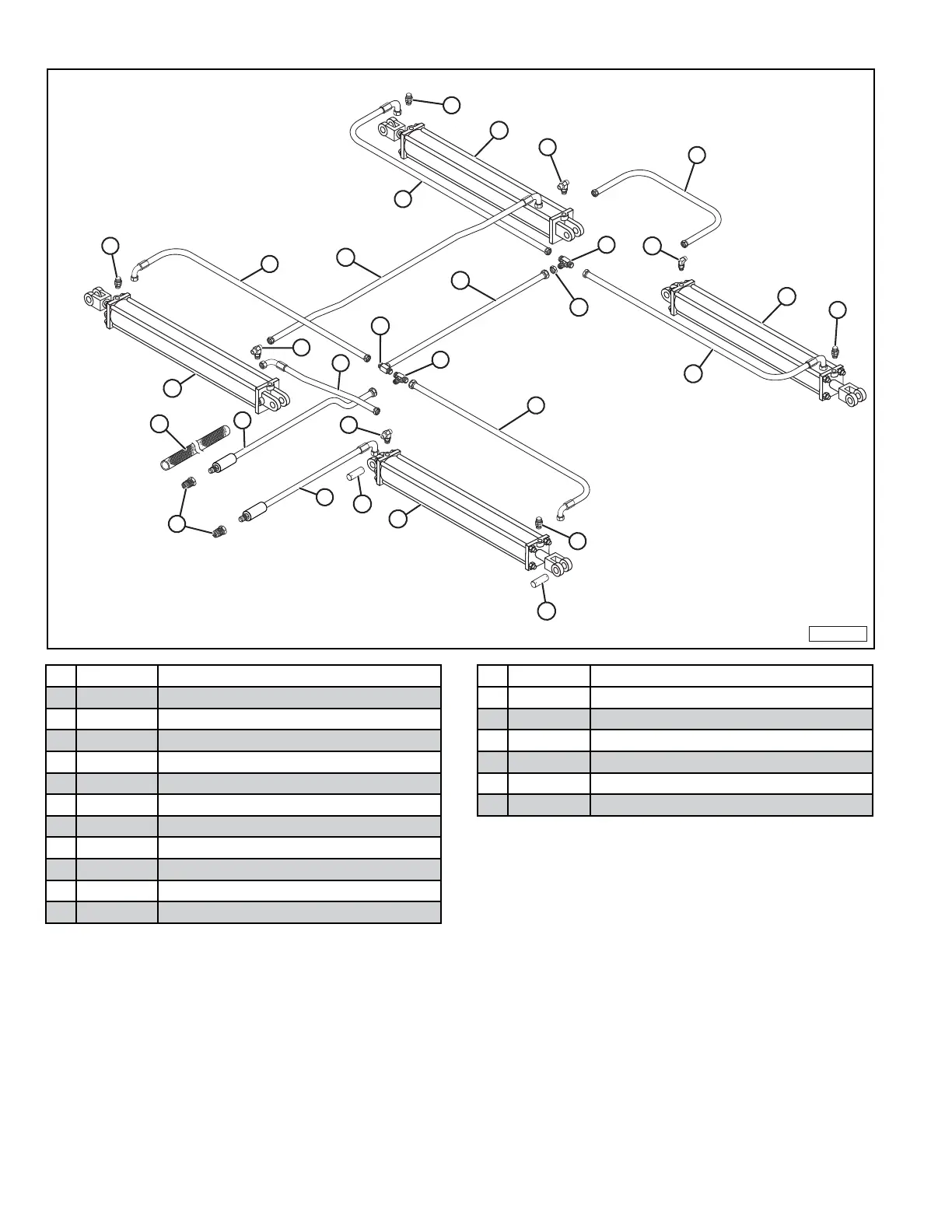

Wing Fold Hydraulics for RD-4135
MFM-0112
1
17
4
4
4
4
5
5
5
5
9
9
6
8
11
8
8
3
3
3
2
14
15
6
12
10
13
16
16
7
Item Part Number Description
1 HYH-3174 1/2” X 174” HYDRAULIC HOSE (w/one ½” pipe end)
2 HYH-1031 1/2” X 216” HYDRAULIC HOSE (w/one ½” pipe end)
3 HYF-1202 TEE (1/2”m – 1/2” O-RING - 1/2”m)
4 HYC-4040 4” X 40” HYDRAULIC CYLINDER (MONARCH)
5 HY-1304 HYDRAULIC RESTRICTOR, 1/8”)
6 HYH-1028 1/2” X 84” HYDRAULIC HOSE
7 HYS-2001 HYDRAULIC HOSE COVER, 110”
8 HYH-1024 1/2” X 38” HYDRAULIC HOSE
9 HYF-1222 TEE (1/2” m – 1/2” m – 1/2”m)
10 HYF-1223 TEE (1/2” m – 1/2” m – 1/2”m)
11 HYH-2040 1/2” X 40” HYDRAULIC HOSE
Item Part Number Description
12 HYH-1025 1/2” x 70” HYDRAULIC HOSE
13 HYH-2074 1/2” x 74” HYDRAULIC HOSE
14 HYO-4002 1/2” TEE NUT
15 HYF-2220 ELBOW (1/2”m – 1/2” O-RING)
16 HYO-2123 CYLINDER CLEVIS PIN, 1-1/4 X 3 – 3 1/2
17 HYF-4002 HYDRAULIC DISCONNECT
