McFarlane 4100 Series - Page 77

800-627-8569 77 Reel Disk from McFarlane Mfg.

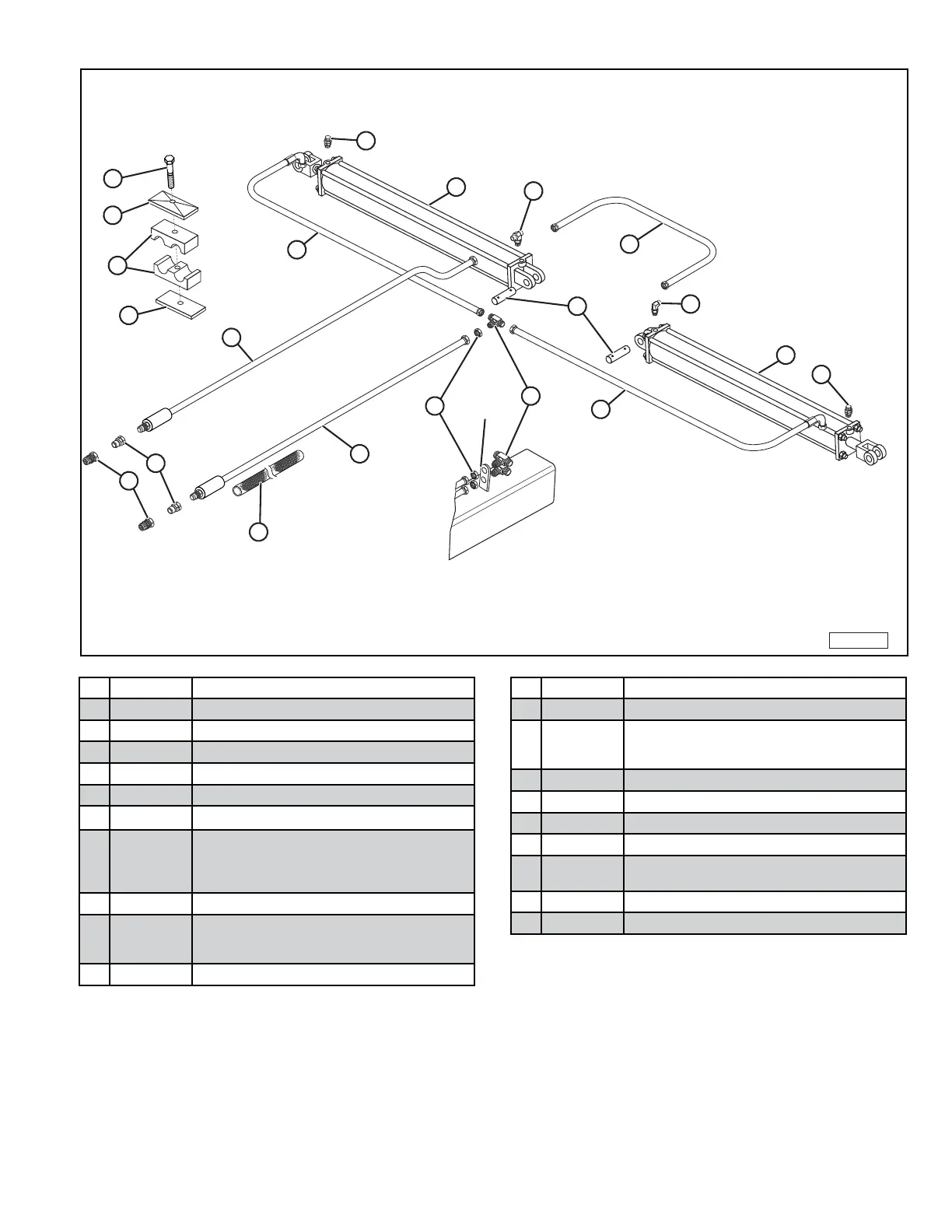

Wing Fold Hydraulics for RD-4120, 4125 and 4130
MFM-0111
1
18
17
4
3
5
7
7
9
12
6
6
11
8
10
2
FRAME
BRACKET
14
15
13
16
19
Item Part Number Description
1 HYH-3260 1/2” X 260” HYDRAULIC HOSE (w/one ½” pipe end)
2 HYH-3250 1/2” X 250” HYDRAULIC HOSE (w/one ½” pipe end)
3 HYO-4002 1/2” TEE NUT
4 HYF-1222 TEE (1/2”m – 1/2”m – 1/2”m)
5 HYH-1026 1/2” x 30” HYDRAULIC HOSE
6
HY-1304 HYDRAULIC RESTRICTOR, 1/8”
7
HYC-4030
HYC-4040
HYC-4540
4” x 30” HYDRAULIC CYLINDER (RD-4020)
4” X 40” HYDRAULIC CYLINDER (MONARCH)
(RD-4025)
4-1/2” X 40” HYDRAULIC CYLINDER (RD-4130)
8 HYF-1202 TEE (1/2”m – 1/2" O-RING – 1/2”m)
9
HYH-2024
HYH-2030
1/2” x 24” HYDRAULIC HOSE (RD-4020)
1/2” x 30” HYDRAULIC HOSE (RD-4025 and
RD-4030)
10 HYO-2123 CYLINDER CLEVIS PIN, 1-1/4 X 3-1/2
Item Part Number Description
11 HYF-2220 ELBOW (1/2”m – 1/2” O-RING)
12
HYH-1017
HYH-1025
1/2” X 52” HYDRAULIC HOSE (RD-4020)
1/2” x 70” HYDRAULIC HOSE (RD-4025 and
RD-4030)
13* HYH-1027 HYDRAULIC CLAMP WELD PLATE, 1/2
14* HYH-1025 HYDRAULIC CLAMP BODY, 1/2 (3/4” O.D.)
15* HYO-1204 HYDRAULIC CLAMP COVER, 1/2
16* HYO-1208 HYDRAULIC CLAMP BOLT, 1/2 (1-3/4)
17 HY-1301
HYDRAULIC RESTRICTOR SWIVEL, 1/2M –
1/2M, 1/8”
18 HYF-4002 HYDRAULIC DISCONNECT
19 HYS-2001 HYDRAULIC HOSE COVER, 110”
* HYO-1201, CONSISTS OF 13, 14, 15, AND 16
