McFarlane 4100 Series - Hub Components for HD-1371

Reel Disk from McFarlane Mfg. 90 800-627-8569

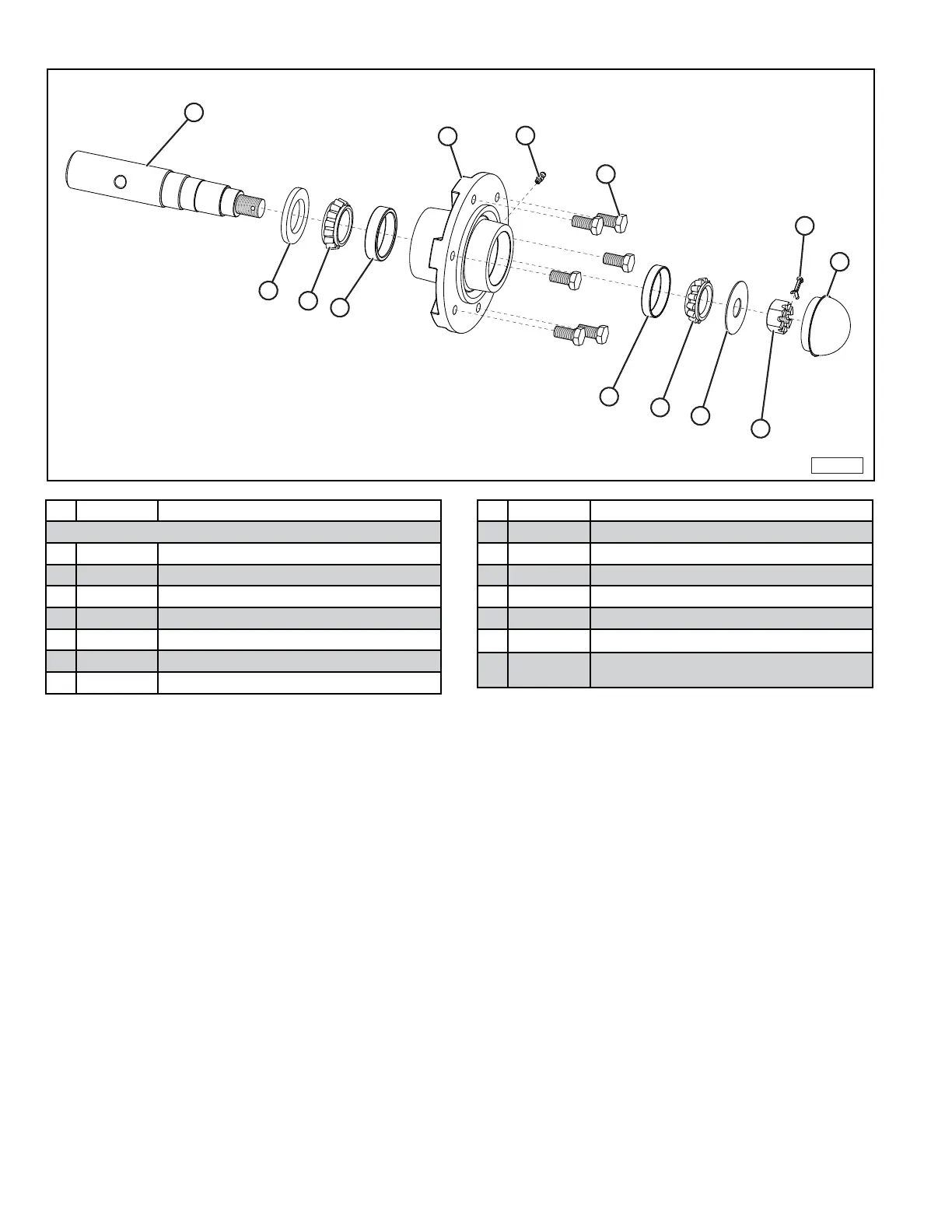

Hub Components for HD-1371
MFM-00103
7
6
5
9
1
8
3
2
4
11
13
10
12
Item Part Number Description
6-HOLE HUB, 3560 LB (9.5L/11L – 15 x 6 / 15 x 8 RIM)
1 WDL-2505 SPINDLE, 1-3/4 X 9-1/2
2 HD-1360 GREASE SEAL, 6 HOLE HUB
3 HD-1362 INNER BEARING
4 HD-1366 INNER RACE
5 HD-1361 HUB WITH RACES, 6 HOLE HUB
6 GZ-0601 GREASE ZERK
7 WB-5010 WHEEL BOLTS, 1/2-20 X 1-3/4
Item Part Number Description
8 HD-1171 OUTER RACE
9 HD-1363 OUTER BEARING
10 HD-1364 SPINDLE FLAT WASHER, 15/16
11 HD-1365 SPINDLE HEX CASTLE N UT, 7/8-14
12 CP-1517 COTTER PIN (0.150 X 1-3/4)
13 HD-1367 DUST CAP
—
HD-1371 6-HOLE HUB ASSEMBLY (Includes items
2,3,7,9 ,15)
