McFarlane 4100 Series - Lubrication Locations Drawing

800-627-8569 37 Reel Disk from McFarlane Mfg.

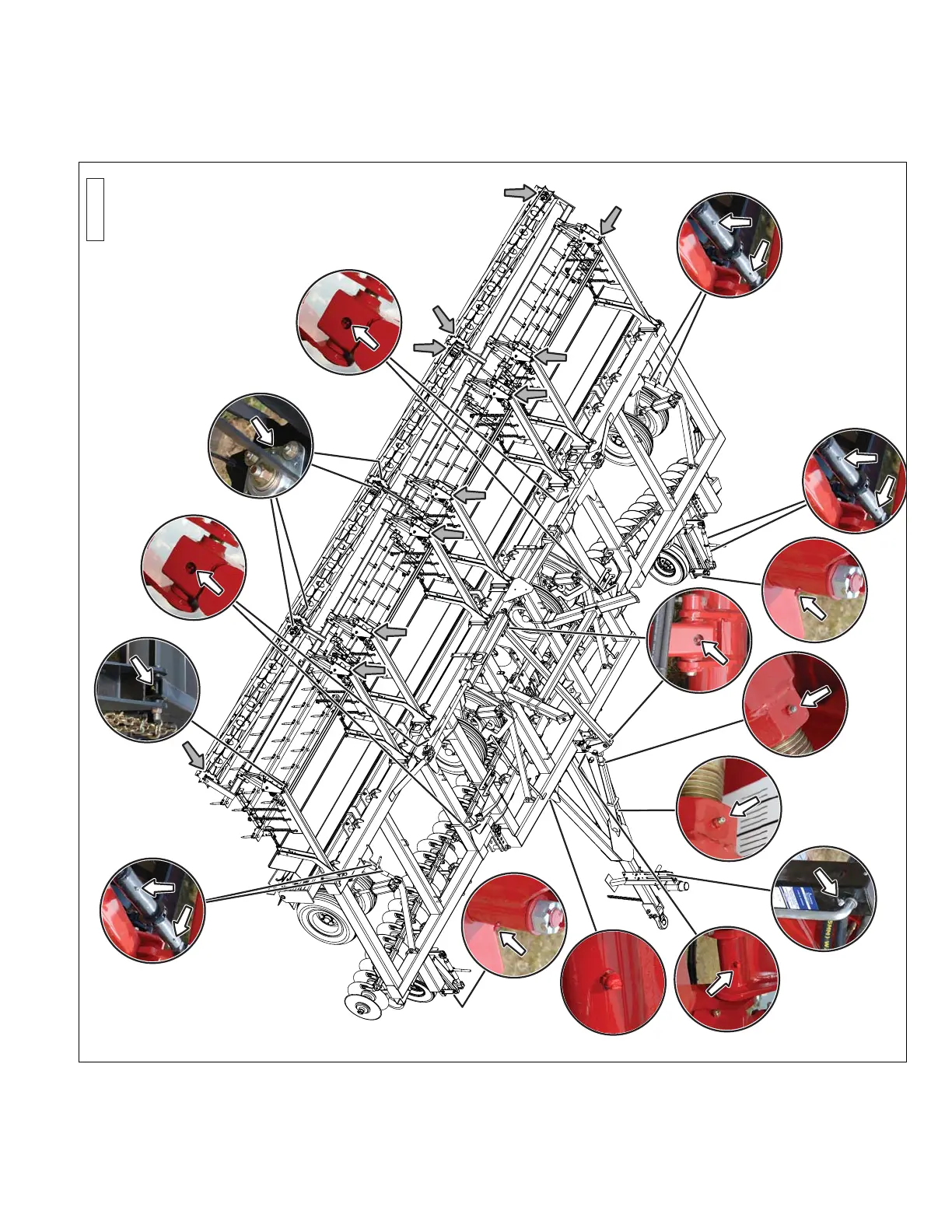

Lubrication Locations Drawing
Add grease to the locations shown in the photo on the
following page.
When greasing a pin and bushing, add grease until it is
visibly forced out of the joint.
MFM-00052
