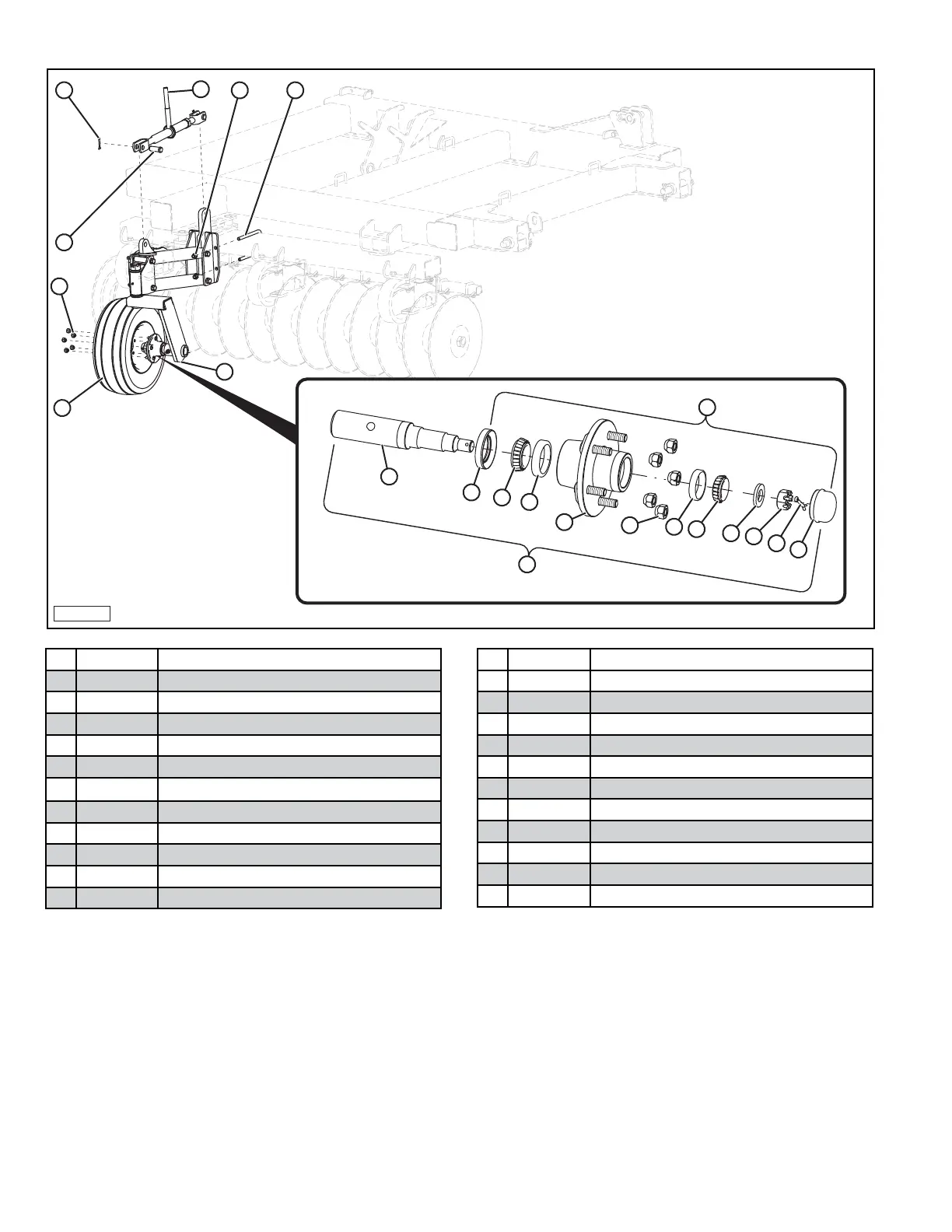

McFarlane 4100 Series - Gauge Wheel for RD-4100 Series

Reel Disk from McFarlane Mfg. 48 800-627-8569
Gauge Wheel for RD-4100 Series
MFM-0127
1
8
7
6
11
12
9
10
13
14
15
16
17
18
19
20
22
21
5
2
3 4
Item Part Number Description
1 CP-3620 COTTER PIN
2 HYO-2008 RATCHET
3 NLT-6311 5/8-11 TOP LOCK NUT
4 BU-5848 U-BOLT
5 RD-4906 GAUGE WHEEL ASSY
6
20.5-8 10TR TIRE WHEEL ASSY
7 WN-0050 LUG NUT
8 HD-1149 CYLINDER PIN
9 RD-4877 HUB & SPINDLE ASSY
10 RD-4881 HUB ASSY
11 RD-4883 SPINDLE
Item Part Number Description
12 RD-4880 HUB SEAL
13 RD-4884 INNER BEARING
14 RD-5114 INNER RACE
15 RD-4878 HUB W/ RACES
16 WN-0050 WHEEL NUT
17 HD-1182 OUTER RACE
18 RD-4879 OUTER BEARING
19 HD-1164 WASHER
20 HD-1165 CASTLE NUT
21 CP-3620 COTTER PIN
22 RD-4882 DUST CAP
