800-627-8569 29 Reel Disk from McFarlane Mfg.

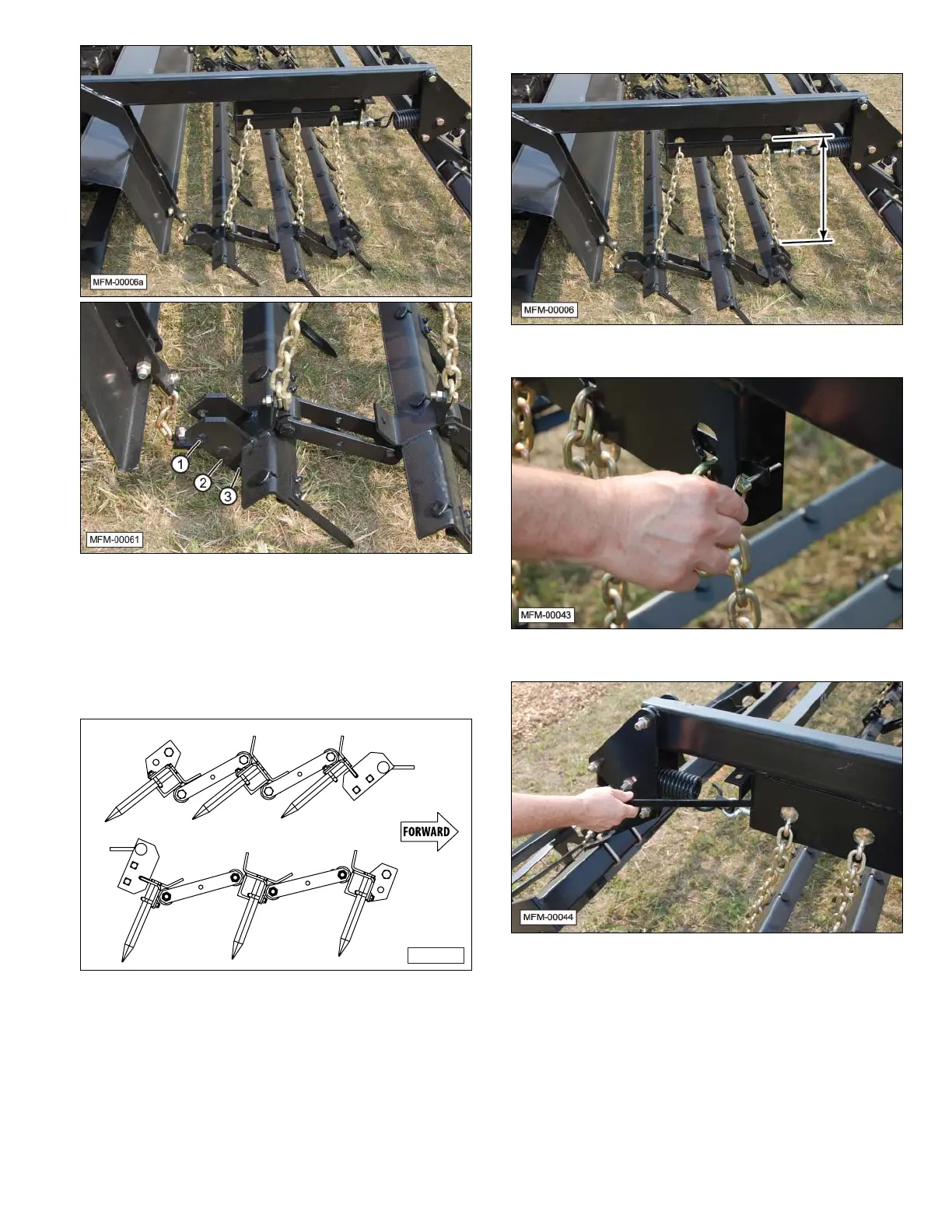

Reversing the harrow sections and pulling them from
the opposite end can change the angle of attack. The
steeper the angle of attack, the more aggressive
the harrowing will be. It is recommended the least
aggressive angle be used with the pull hook in the top
position as shown.
MFM-00080
16. Adjust the height of the harrow sections.
a. Remove the locking bar retainer clip.
b. Remove the locking bar
To Next Page
