McHale F5500 Baler
59
Type B - The following applies to swing down screw stand (low hitch):
 Similar to type A, except stand pin (3) is in the upper slot, in the transport
(working) position. It should be wound up and retracted fully, as shown, before
removing the handle. The main difference being, that the drawbar height is
now fully adjustable.
.
Type C - The following applies to the fixed screw down stand (high hitch):
 Stand type C is the only type supplied with the high drawbar hitch option and
is available as an option on the low drawbar hitch machines.
 In order to elevate the drawbar, rotate the jack handle (1) in a clockwise
direction as shown below. In order to lower the drawbar, rotate the handle in a
counter-clockwise direction.
 When the drawbar has been safely connected to the hitch on a high hitch style
tractor and the machine weight taken off the stand (by rotating jack handle (1)
in a counter-clockwise direction) the lower part of the stand (2) can be
retracted quickly by removing the quick-release pin (3) (having first removed
the R-clip (4)) and sliding up the lower part of the stand, fully into position.
Align the bottom hole and replace the pin (3) followed by R-clip (4).

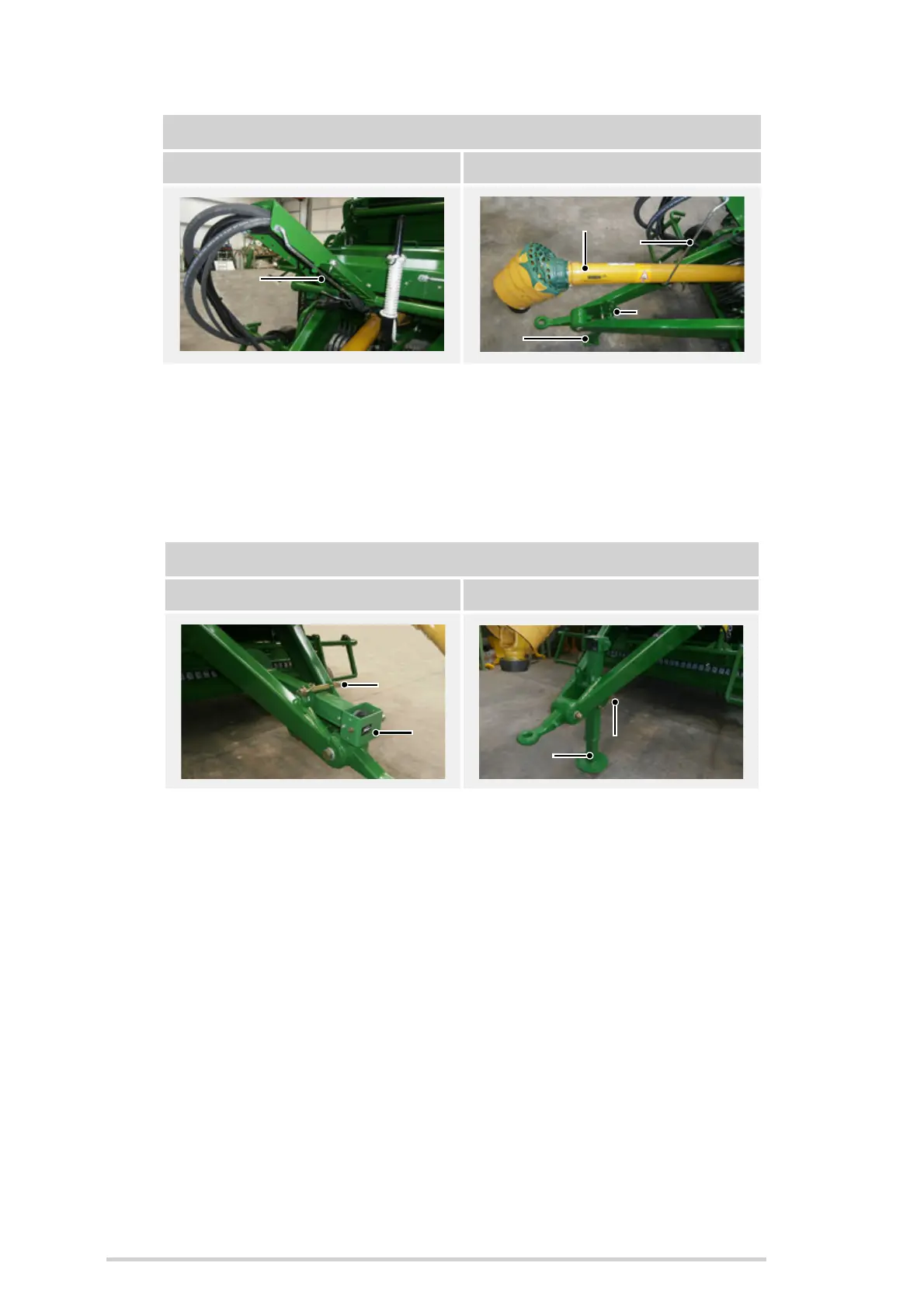

PTO shaft stand (type A & B)
Transport (working) position Storage position
1
Type B - swing down screw stand (low hitch)
Transport (working) position Storage position
2
4
3
1
2
3
1
3
1
