Should the bale size be greater than 1.29 m, then the bale size sensor will need to be
adjusted away from the sensor handle. (See the following image)
After adjusting the sensor, the light on the back of the sensor must be on. If there is no
light on the sensor after adjustment, then the sensor is out of range and must be
adjusted towards the sensor handle, until the light on the back of the sensor lights up.
9.15 Chamber door lock
The chamber door lock is to be used, at all times, when the operator wants to enter the
chamber. The lock is located in front of the platform on the left of the machine. See
below for the safety decal and location of the chamber door lock valve. The lock works
by way of a hydraulic on/off valve, while locked the valve is in the ‘off’ (vertical) position
and the hydraulic rams will remain locked open, securing the door in a fixed position.
CAUTION: Bale size should never exceed 1.29 m
Bales with a bale size in excess of 1.29 m in diameter may result in
damage to the net on the bale.
NOTE: Minimal adjustment has significant effect
Minimal adjustment of this sensor can have a significant affect on the
size of the bale. This sensor may need to be adjusted a few times in
order to achieve the correct bale size.

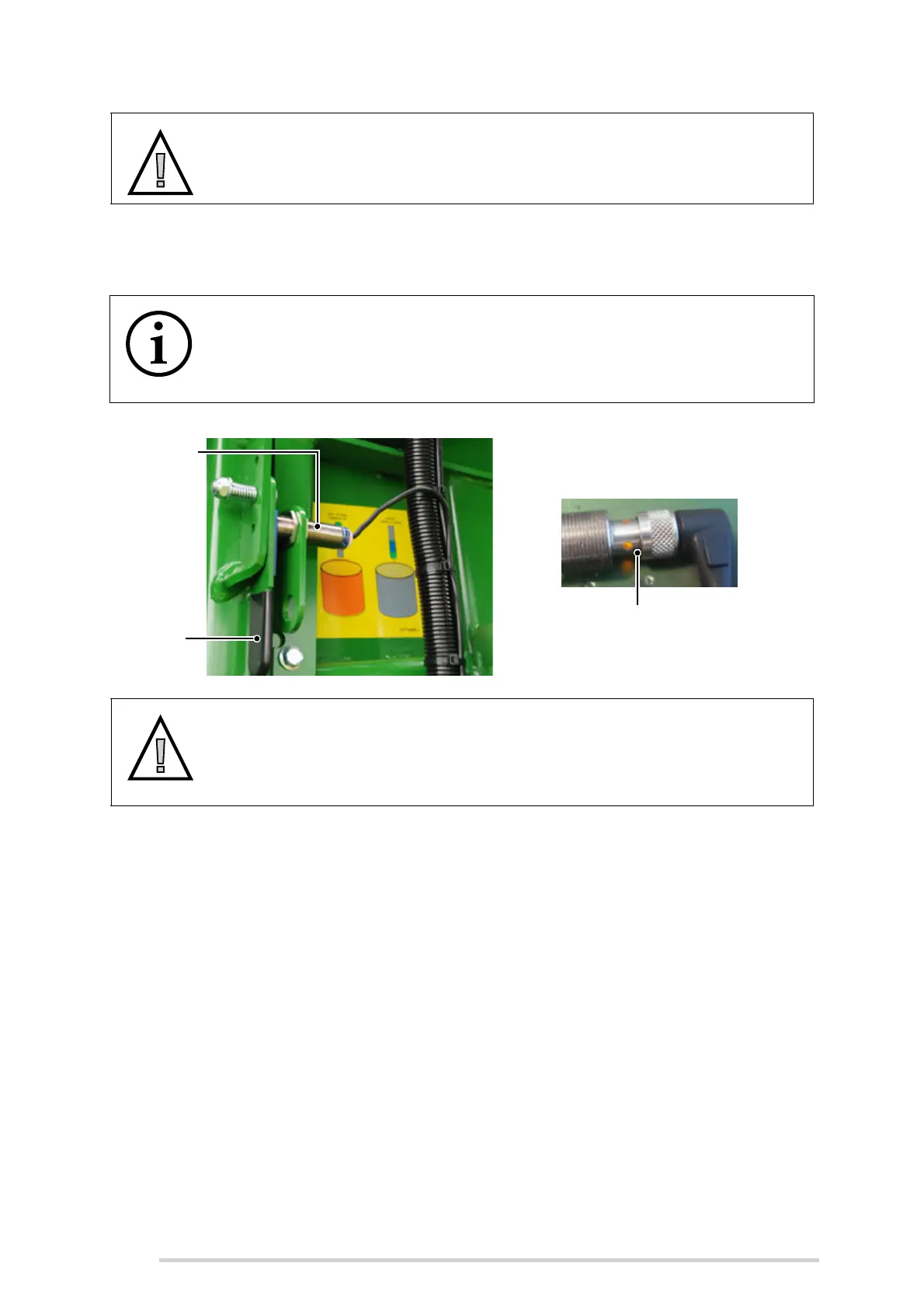

CAUTION: Only adjust the sensor with chamber door closed &
handle down
Only adjust this sensor with the chamber door closed and the door
sensor handle in the down position, as shown.
Sensor
handle
down
Sensor
light
Bale size
sensor
