McHale F5500 Baler
63
The closest value of H can be selected from table above to determine the most suitable
bolt hole position for B, depending on whether low or high drawbar set-up. Once
adjusted, ensure safety bolt is re-installed and all bolts tightened securely.
6.13 PTO shaft adjustment & maintenance
(See ‘Adjusting the PTO shaft to the tractor’)
The length of the PTO shaft is suitable for all known tractor conditions. However the
PTO shaft must be checked/altered to suit the tractor combination it is being fitted to.

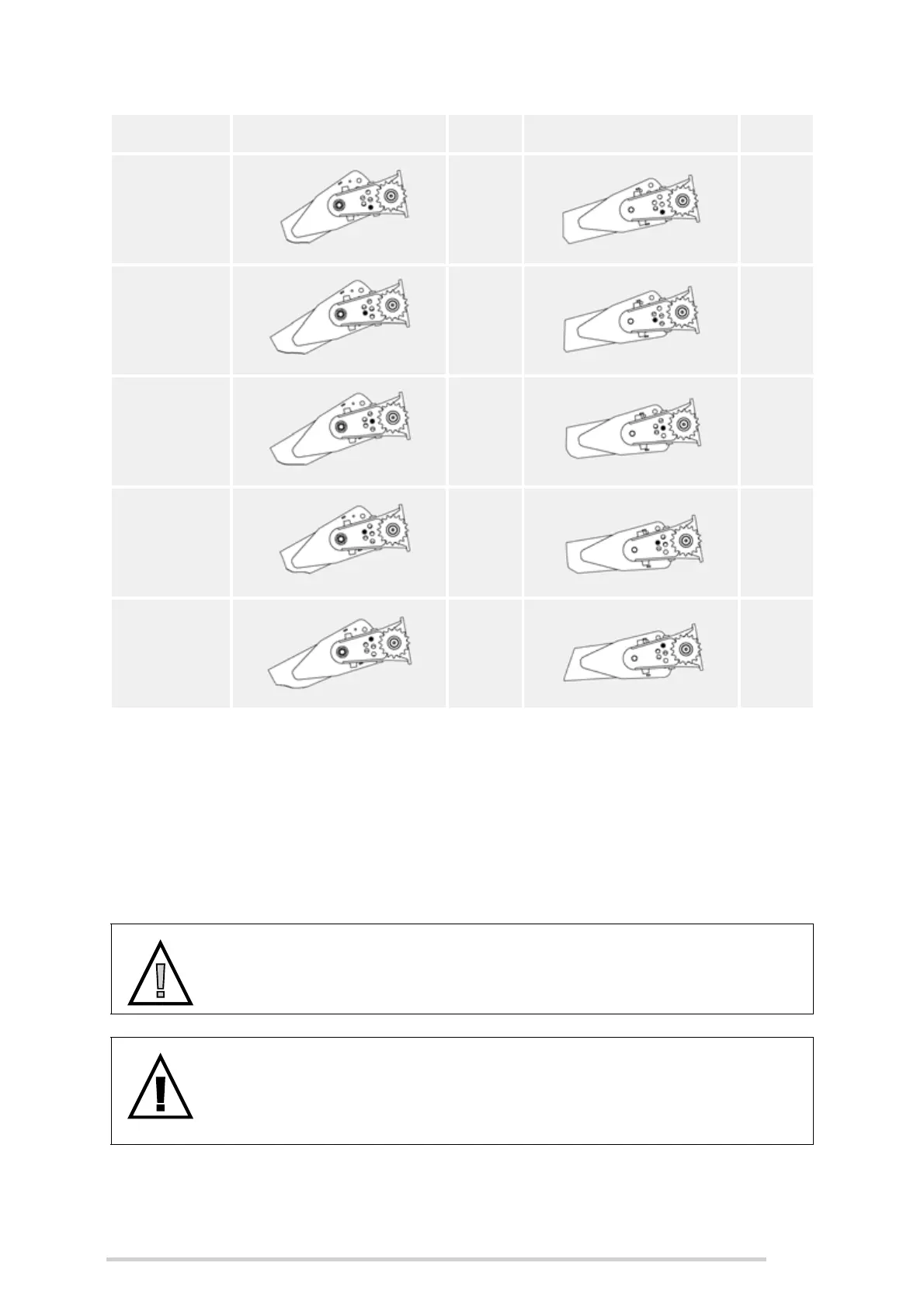

Position Low drawbar setting H High drawbar setting H
B1 410 800
B2 450 880
B3 480 990
B4 520 1030
B5 555 1070
CAUTION: Ensure the tractor is shut down
Ensure that the tractor engine has been shut down, the key removed
and the brakes applied before carrying out the following procedure.
WARNING: Measure distance between PTO stub shafts first
Never connect a PTO shaft on a new machine/tractor combination
without first measuring the shortest distance between PTO stub shafts,
otherwise severe damage can occur.
