McHale F5500 Baler
62

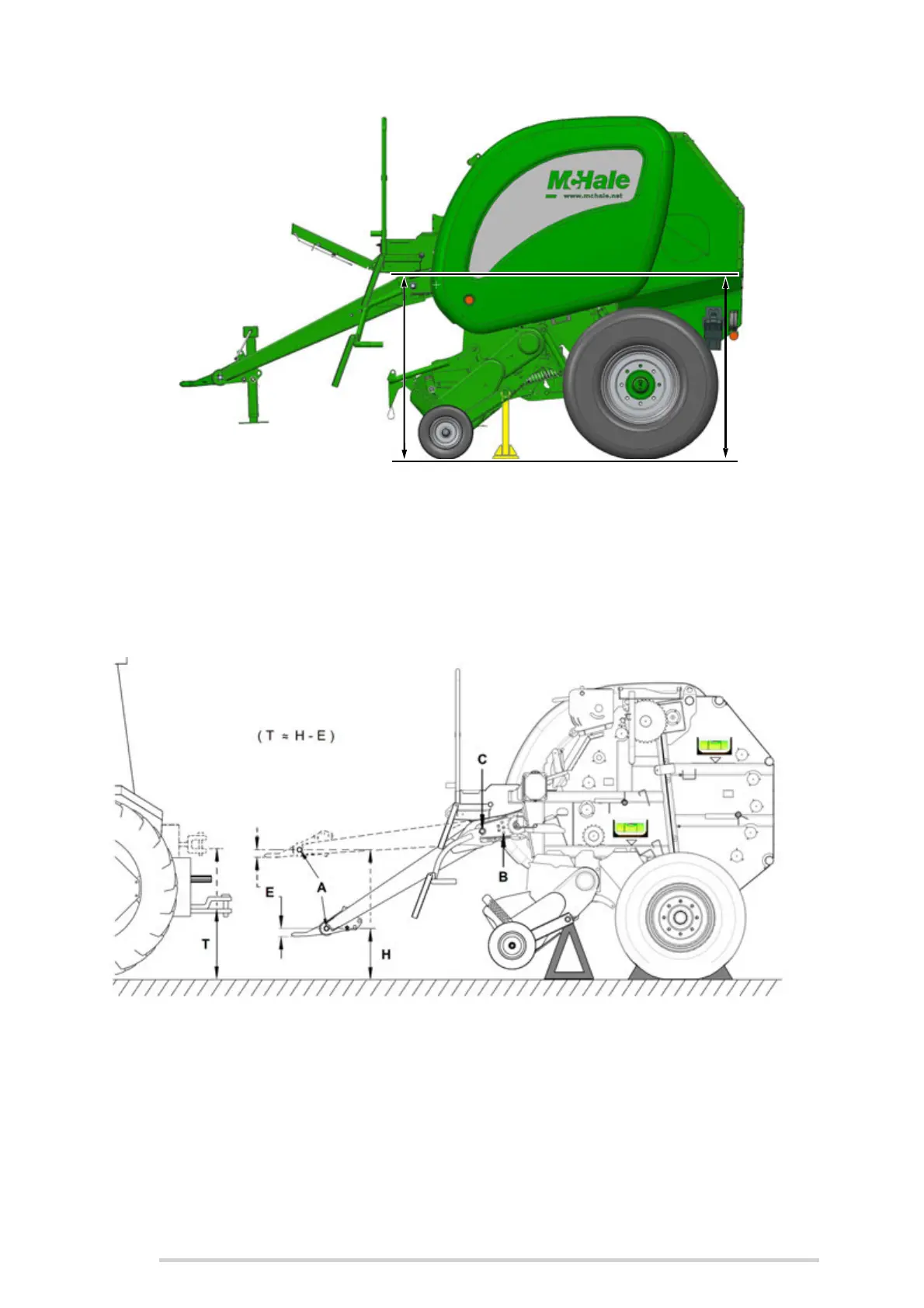

Tractors typically are either low hitch or high hitch and the drawbar on the machine
should be set up accordingly. When changing from a low to a high drawbar set-up, the
drawbar is inverted and the hitch eye is adjusted horizontally, in the orientation shown.
Once the height of tractor hitch (T) is measured in mm, then allowing for hitch-eye offset
(E) the height (H) to the centre of pivot point A can be established (H ≈ T+E).
Drawbar configuration
