7
Installation
Installation
The C2500 can be placed upright on a table or shelf,
standing on its four feet. It also can be custom in-
stalled in a piece of furniture or cabinet of your
choice. The four feet may be removed from the bottom
of the C2500 when it is custom installed as outlined
below. The four feet together with the mounting
screws should be retained for possible future use if the
C2500 is removed from the custom installation and

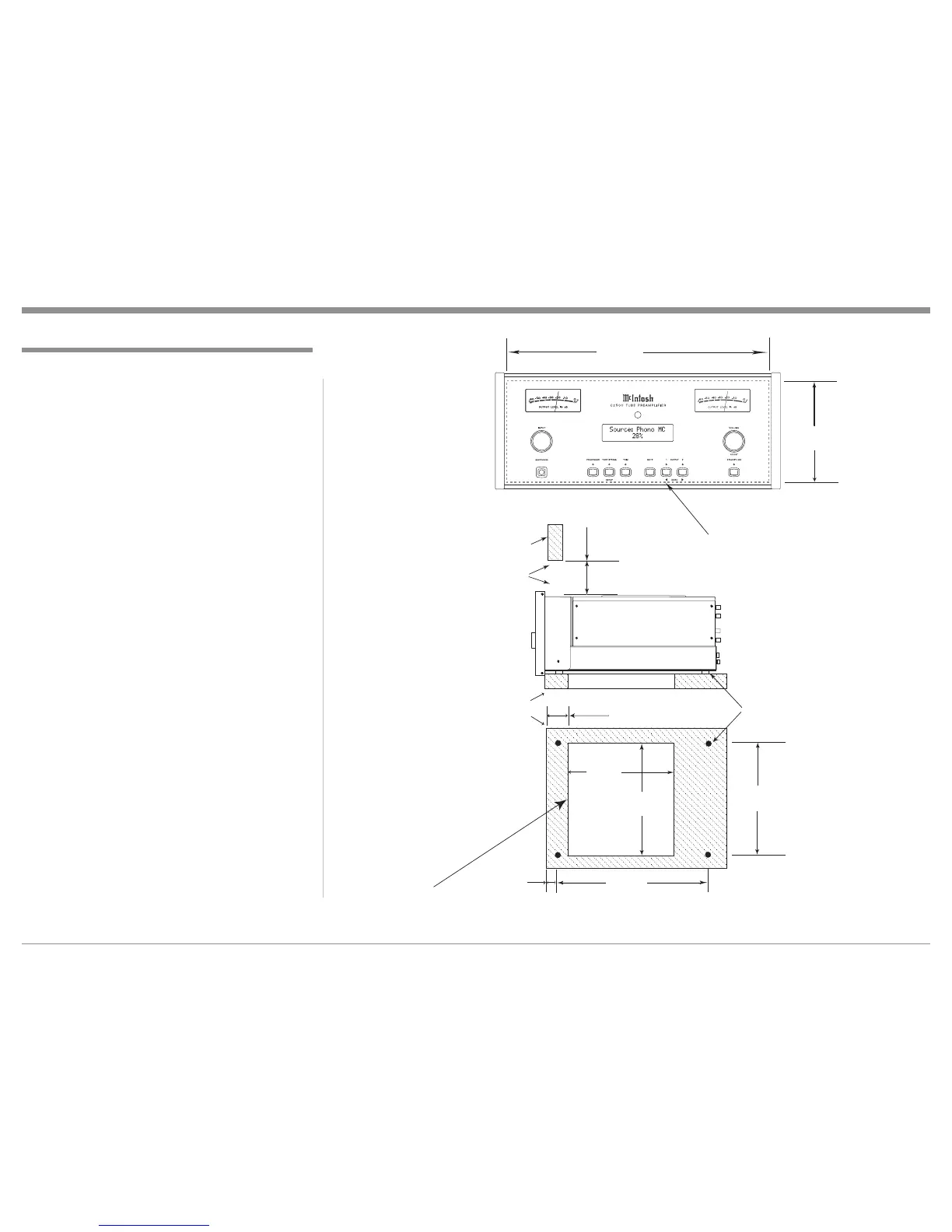

used free standing. The required panel cutout, ventila-
tion cutout and unit dimensions are shown.
Always provide adequate ventilation for your
C2500. Cool operation ensures the longest possible
operating life for any electronic instrument. Do not
install the C2500 directly above a heat generating
component such as a high powered amplifier. If all
the components are installed in a single cabinet, a
quiet running ventilation fan can be a definite asset in
maintaining all the system components at the coolest
possible operating temperature.
A custom cabinet installation should provide the
following minimum spacing dimensions for cool
operation.
Allow at least 6 inches (15.2cm) above the top, 2
inches (5.1cm) below the bottom and 1 inch (2.5cm)
on each side of the Preamplifier, so that airflow is not
obstructed. Allow 20 inches (50.8cm) depth behind the
front panel. Allow 1-7/16 inch (3.7cm) in front of the
mounting panel for knob clearance. Be sure to cut out
a ventilation hole in the mounting shelf according to
the dimensions in the drawing.
6-5/8"
16.84cm
17-3/16"
43.66cm
Cutout Opening for Custom Mounting
C2500 Front Panel
Custom Cabinet Cutout
Cutout
Opening
for
Ventilation
Cutout Opening for Ventilation
Support
Shelf
Chassis
Spacers
C2500 Side View
in Custom Cabinet
12-5/16"
31.27cm
Note: Center the cutout Horizontally
on the unit. For purposes of
clarity, the above illustration
is not drawn to scale.
C2500 Bottom View
in Custom Cabinet
15"
38.10cm
9-1/8"
23.18cm
2-1/4"
5.72cm
15"
38.10cm
1-1/16"
2.70cm
Cabinet
Front
Panel
6"
15.2cm
Opening
for Ventilation
To Next Page
