8
Rear Panel Connections
The identification of Rear Panel Connections for the
C2500 Tube Preamplifier is located on a separate
folded sheet contained in the Owner’s Manual Packet.
Refer to separate sheet “Mc2B” for the Rear Panel
Connections.

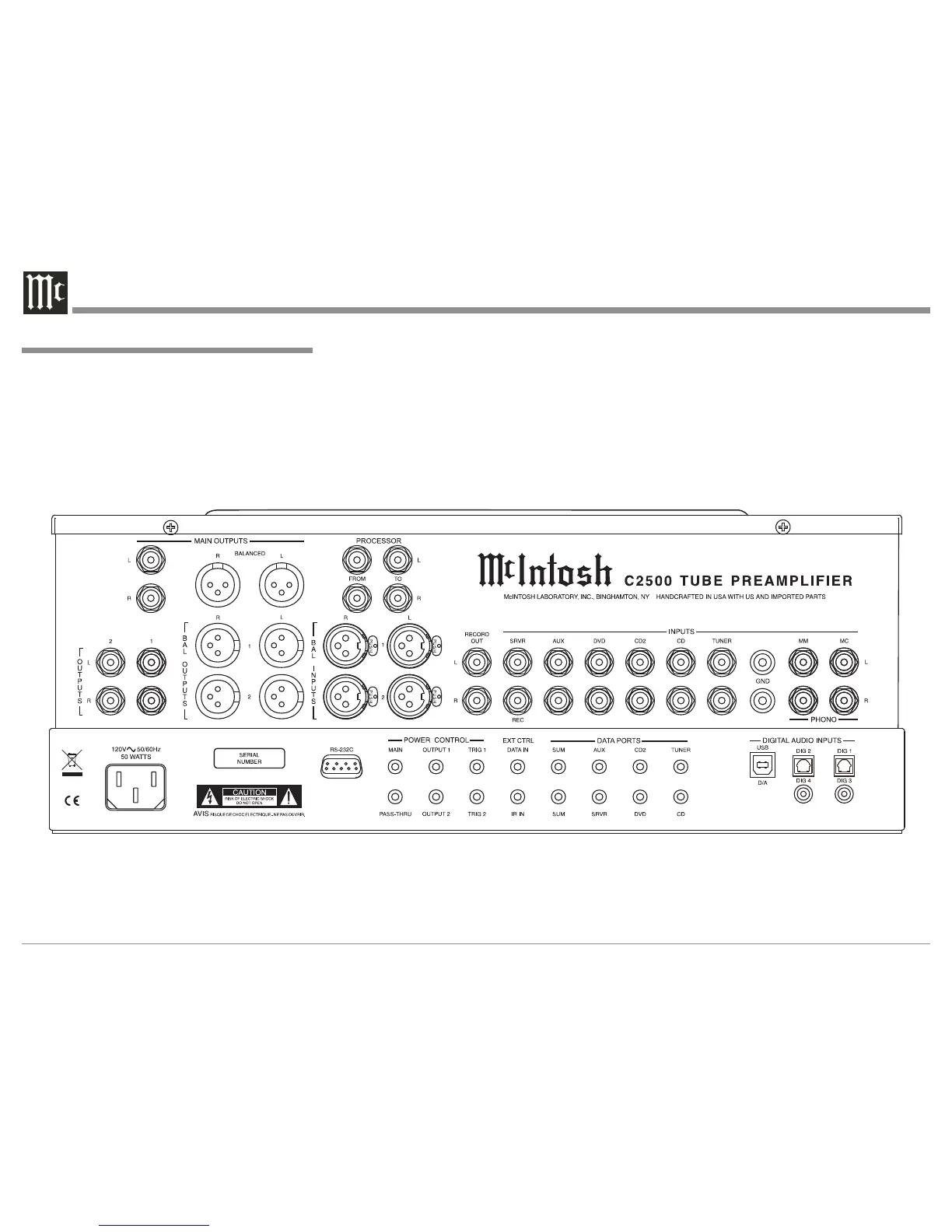

Rear Panel Connections
C2500 Tube Preamplifer Rear Panel

Table of Contents

Other manuals for McIntosh C2500

Preview: Service Manual
Service Manual58 pages
Preview: Connection Diagram
Connection Diagram2 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the McIntosh C2500 and is the answer not in the manual?

McIntosh C2500 Specifications

General IconGeneral
Total Harmonic Distortion0.08%
Signal to Noise Ratio100dB
Rated Output Voltage2.5V unbalanced, 5V balanced
Maximum Output Voltage8V unbalanced, 16V balanced
High Level Voltage Gain15dB
TypeVacuum Tube Preamplifier
Inputs6 unbalanced, 2 balanced, 1 phono MC, 1 phono MM
Outputs3 unbalanced, 2 balanced
Weight29 lbs (13.2 kg)
Input Impedance47k ohms
Phono Voltage Gain40dB (MM), 60dB (MC)
Frequency Response+0, -0.5dB from 20Hz to 20, 000Hz +0, -3dB from 10Hz to 100, 000Hz
