Campers - Trailer Lights

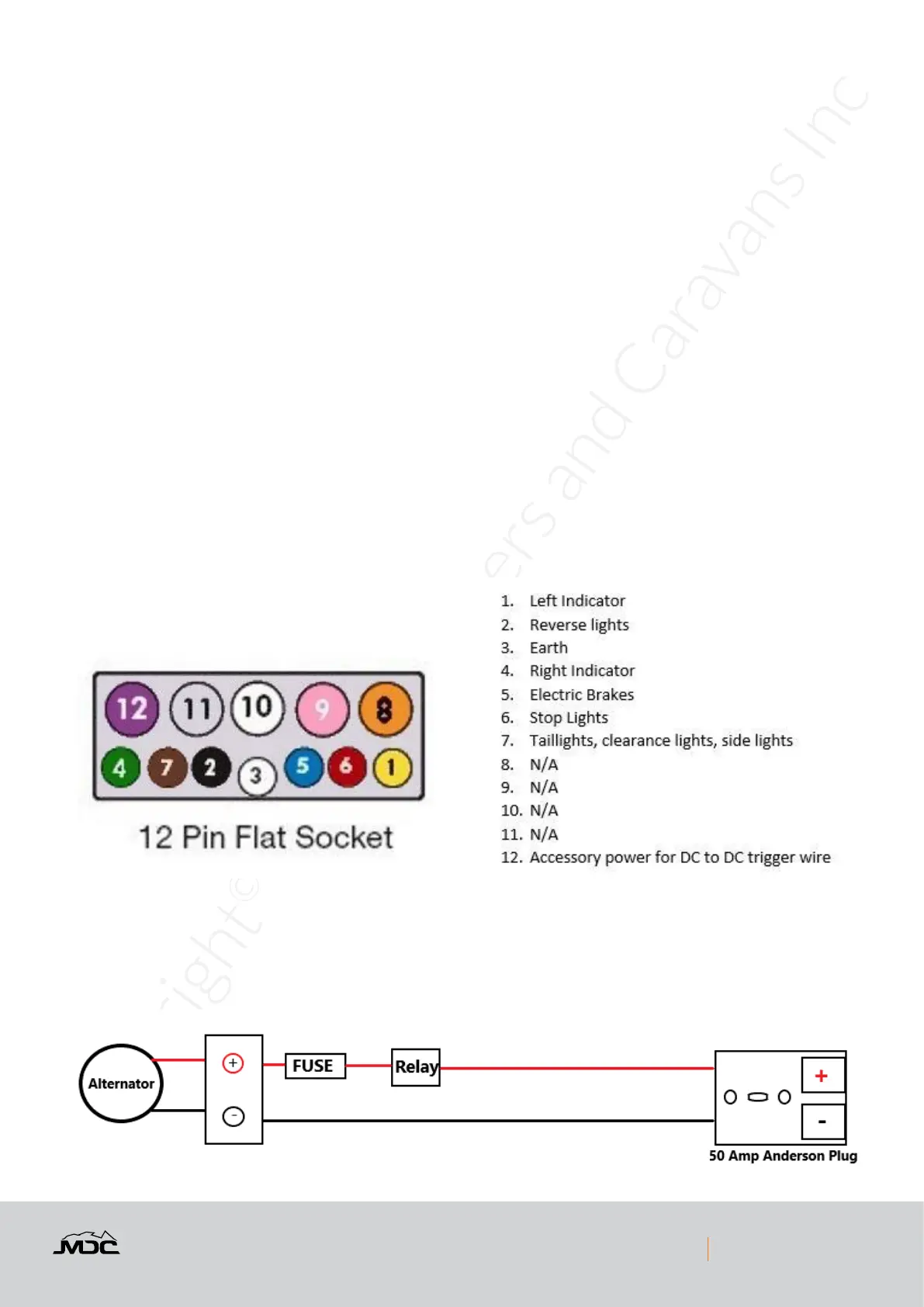

Plug Type – 12 Pin Flat (Not Negotiable)
Pin 1 Yellow Left Indicator
Pin 2 Black Reversing Signal
Pin 3 White Earth Return
Pin 4 Green Right Indicator
Pin 5 Blue Service Brakes
Pin 6 Red Brake Lights
Pin 7 Brown Taillights, clearance lights and side markers
Pin 8 N/A
Pin 9 N/A
Pin 10 N/A
Pin 11 N/A
Pin 12 Accessory power (Power when vehicle is running)
Charging Camper While Driving
Plug Type – 50 amp Anderson Plug
Vehicle with or without smart alternator:
The Anderson plug can be connected to the start battery on the vehicle and should include the following to protect
the start battery.
1. 50 amp relay to stop power supply when vehicle is not running
2. 50 amp fuse or circuit breaker at the battery
Notes: The Projecta IDC25 DC to DC controller tted in your MDC trailer is programmed to favour the solar
panel input exclusively until it drops below a threshold voltage input. By providing accessory power to the
number 12 pin, the trigger for the IDC25 will be set off to take power from both the Anderson plug and the solar
panels. It will also trigger the IDC25 to activate the vehicles ECU to make the alternator provide power to fully
charge the multiple batteries in your Camper.
