Adjuster Automotive Type
Adjusting the automotive style handbrake on later models is done as follows.
To adjust the left and right side simultaneously:

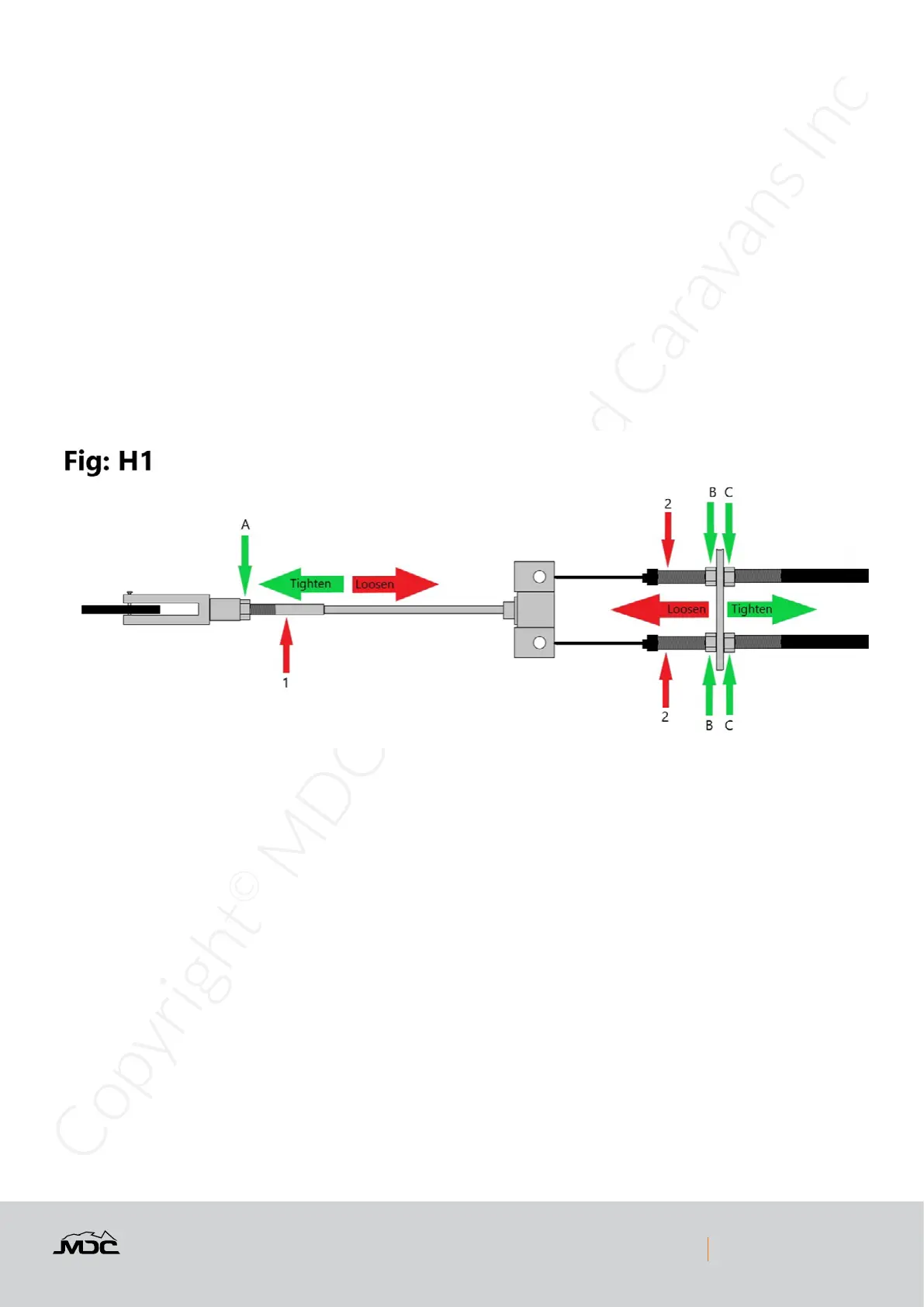

1. Loosen locknut A
2. Turn shaft 1 clockwise, shortening the length exposed until desired adjustment achieved.
3. Re-tighten locknut A
For extended adjustment or to balance left and right cables:
1. Choose the side you want to adjust and undo locknut B.
2. Turn locknut C behind mounting bracket clockwise in the direction of the handbrake lever while loosening
locknut B to tighten the cable and apply more handbrake.
3. Turn locknut B clockwise towards the backing plate while loosening locknut C to reduce handbrake.
4. When nished, tighten locknuts to prevent further movement.
Hitch
Cruisemaster DO35
To ensure a long service life we recommend the following periodic maintenance procedures.
1. Always keep Tow Pin and Universal mating surfaces clean and lightly lubricated.
2. Check condition of Tow Pin O-Ring and replace if necessary (Part No. 18D-DO35-101).
3. Regularly lubricate grease points with multi-purpose grease.
4. Periodic adjustment of Slotted Nut & Pin may be required of coupling head loosens excessively and
should be a competent person.
5. Flush with clean water if locking mechanism does not open fully due to dirt ingress.
Ball Bearing Slides
To lubricate and protect from corrosion the ball bearing slides should be lubricated with a small amount of general
purpose grease every 6 months.
