30

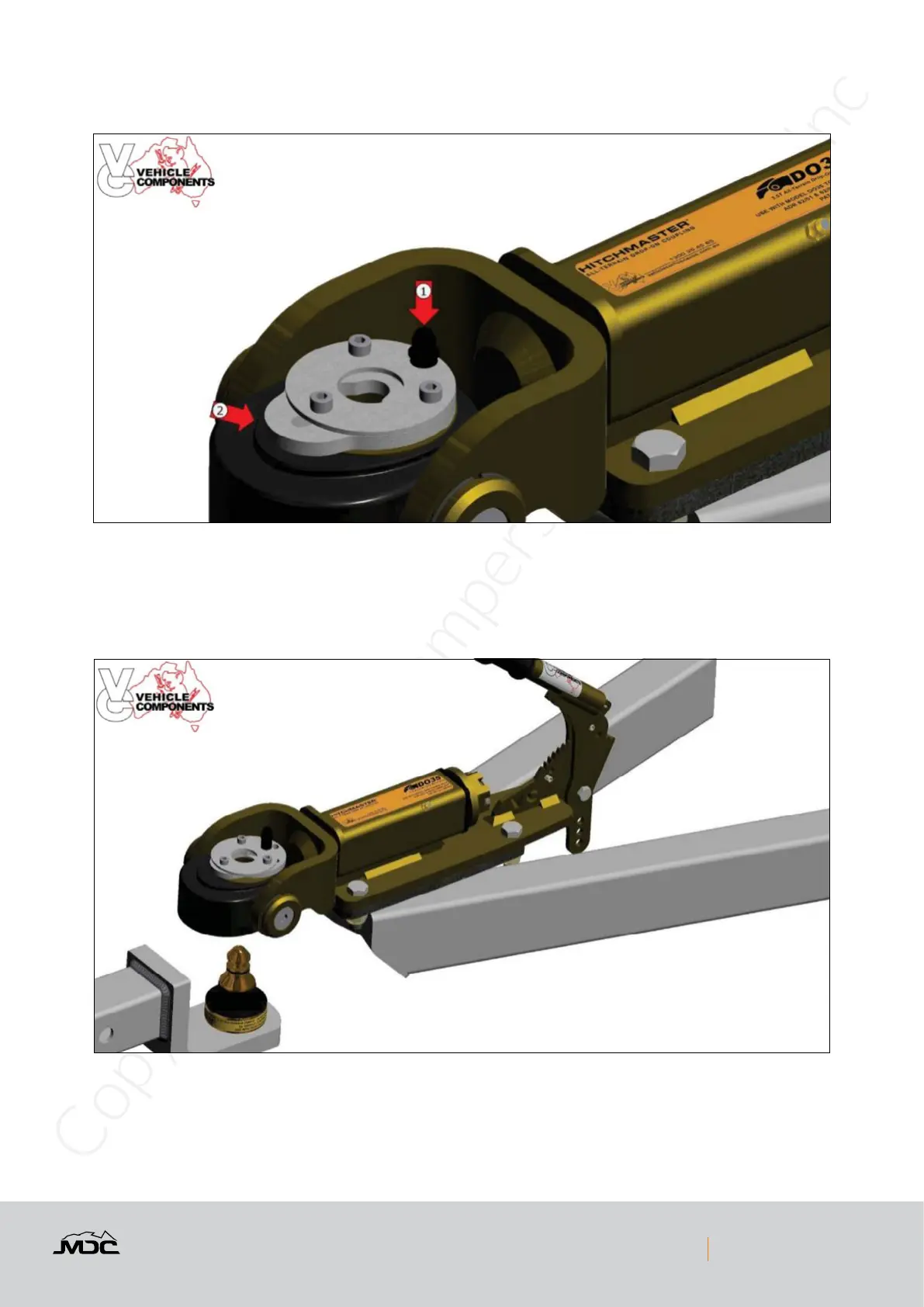

Push down the button (1) and push the locking mechanism back (2). When the locking mechanism (2) is all the way
back, release the button (1) locking the plate in place
Coupling
STEP 1
STEP 2
Offer up the tow pin to the coupling making sure the tow pin cover is removed and there is no visible debris on it.
Locking plate should be in unlocked position as shown. Lower the coupling onto the tow pin.
