MDC ROBSON XTT 2021 - Uncoupling Procedure Steps; Uncoupling Step 1: Release Mechanism; Uncoupling Step 2: Lift Off Pin

www.marketdirect.com.au Ph: 1300 494 494
32

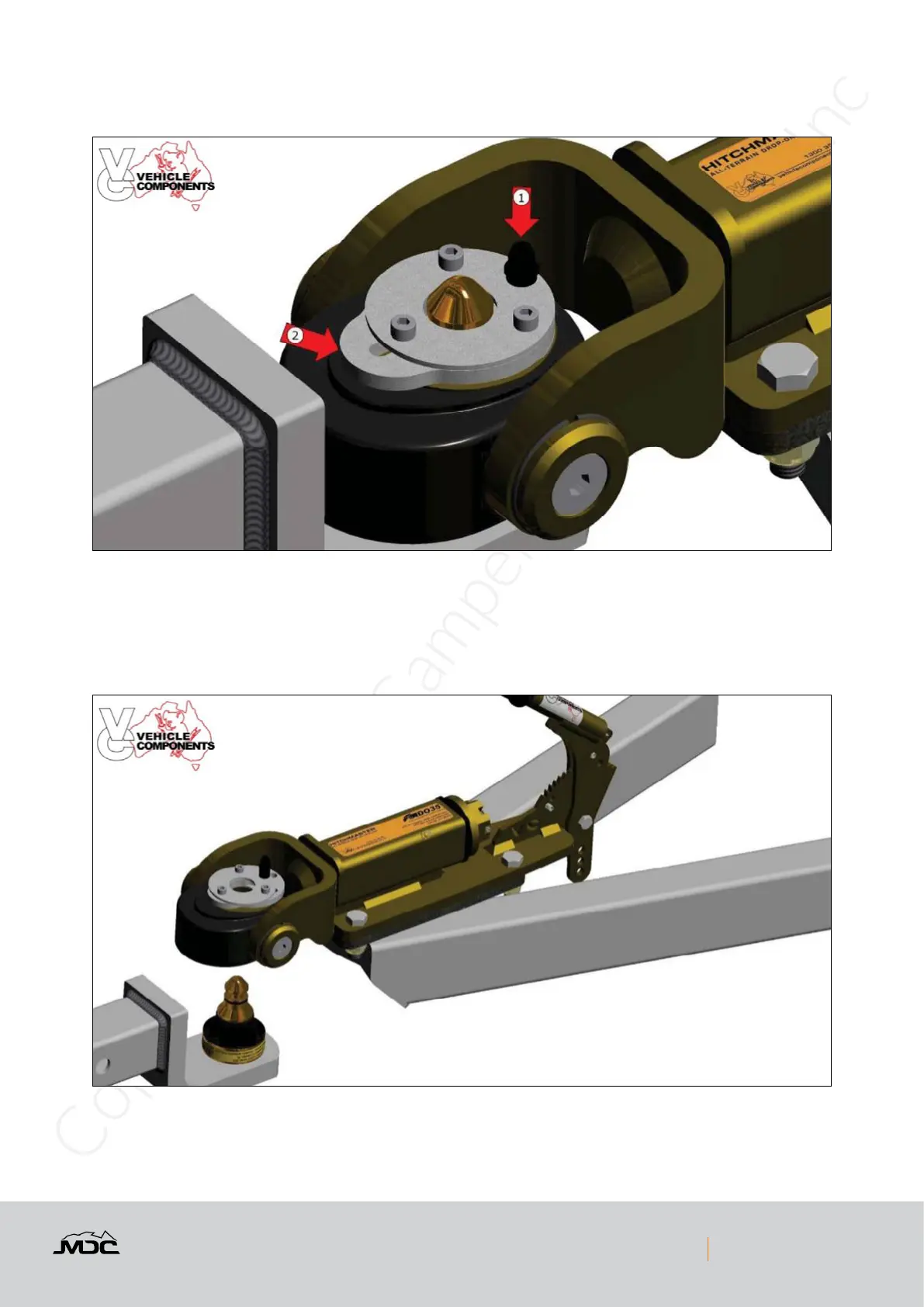

Push down the button 1 and push the locking mechanism back 2. When the locking mechanism is all the way back
release the button while holding the mechanism to ensure it does not spring back to the locked position.
Lift the coupling up off the tow pin.
Uncoupling
STEP 1
STEP 2
