4.12. Attaching Grips and Fixtures

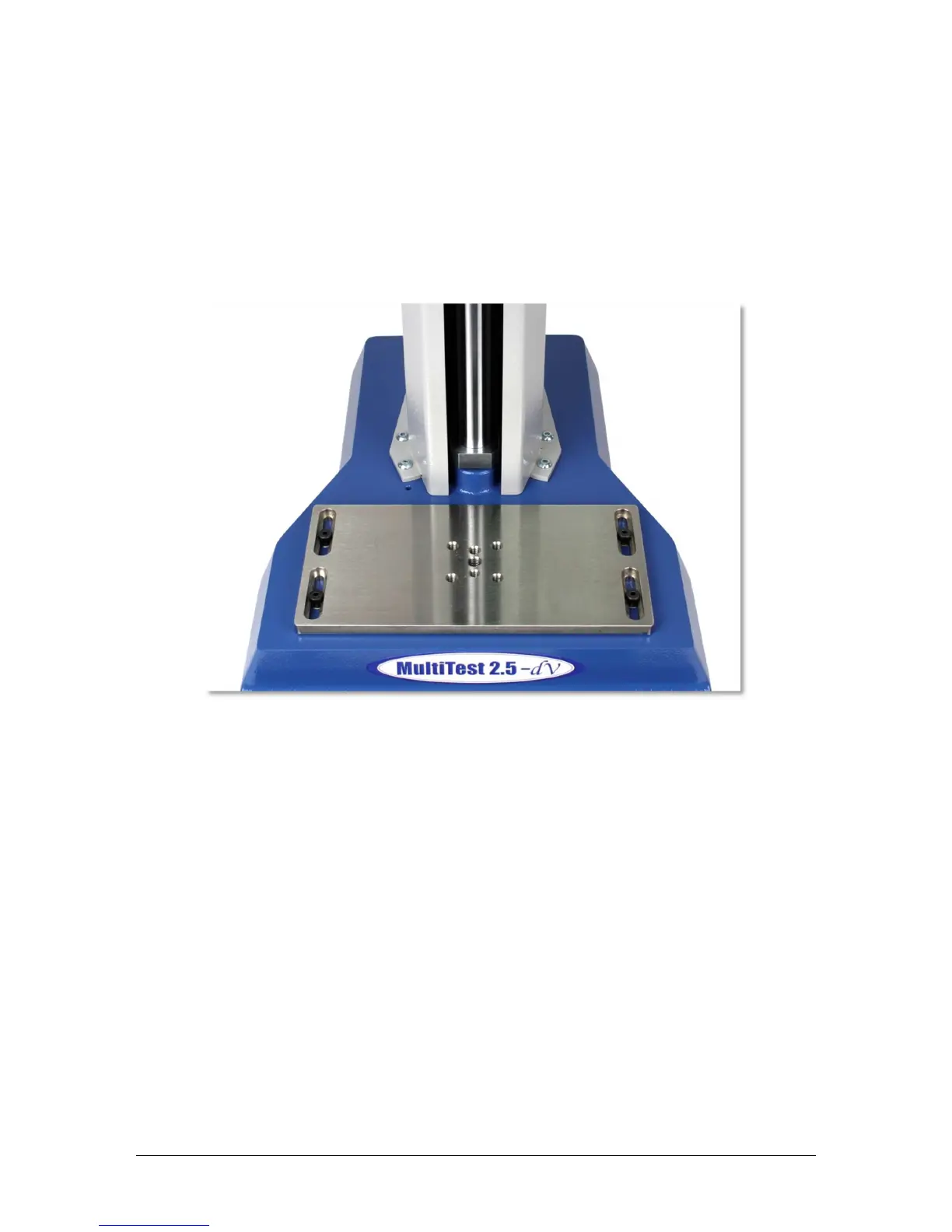

For flexible attachment of a variety of accessories, and improved alignment, the
MultiTest-dV is fitted with an anvil plate to accept fixtures with different screw threads
as well as fixing points for a standard 20mm QC adapter.
This anvil plate is attached with four bolts using an Allen key. For alignment, the anvil
plate can be loosened, moved forwards or back, and the bolts retightened.
Upper grips and accessories are attached directly to the ELS device being used.
QC adapters are available and can be fitted directly to the anvil plate or through a
Mecmesin LTE-700 extensometer.
