Step 4 – Removal/ Replacement of the Power Conversion Board
If it is determined in the Troubleshooting Section that the power conversion board needs
replacing, please follow the instructions below:

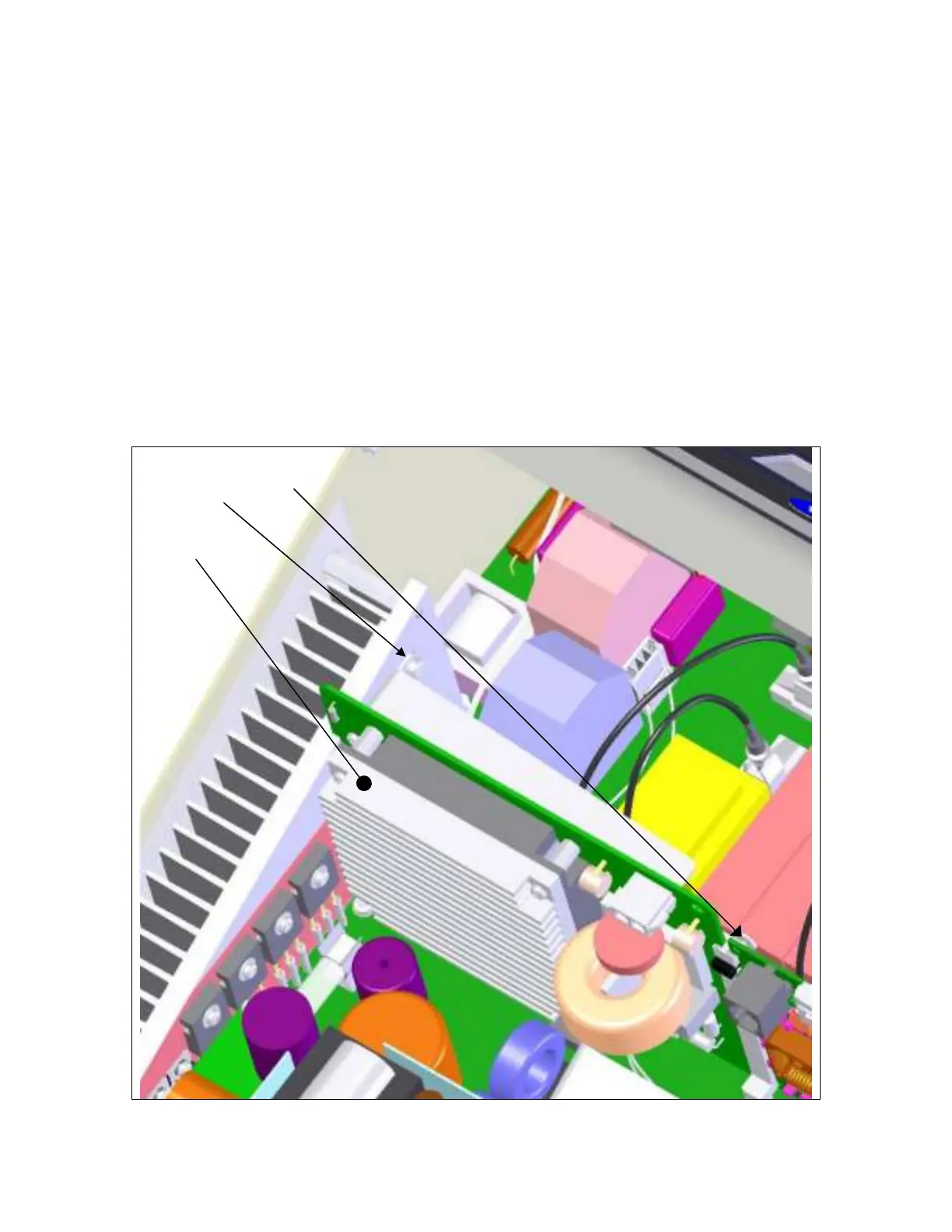

Remove one screw (item A) from associated heat sink .
Unlock the controller board from the card guide by pressing the card lock (item C)
toward the rear of the ESU. Carefully slide the power conversion board (item B) straight
up through the card guides to disconnect if from the motherboard. Set the power
conversion board aside in an antistatic container for reinstallation.
Repeat steps in reverse order to install Power Conversion Board.
A
B
C
