3 Setup and installation
13
Connecting the feed water supply (installation examples)
The following pages provide examples for the recommended installation types for the feed water supply. The connection
of a different water treatment unit with the same water quality is possible after consultation with MELAG.
PLEASE NOTE
For detailed information on the cold water connection of the water treatment unit, see the user manual
of the unit.

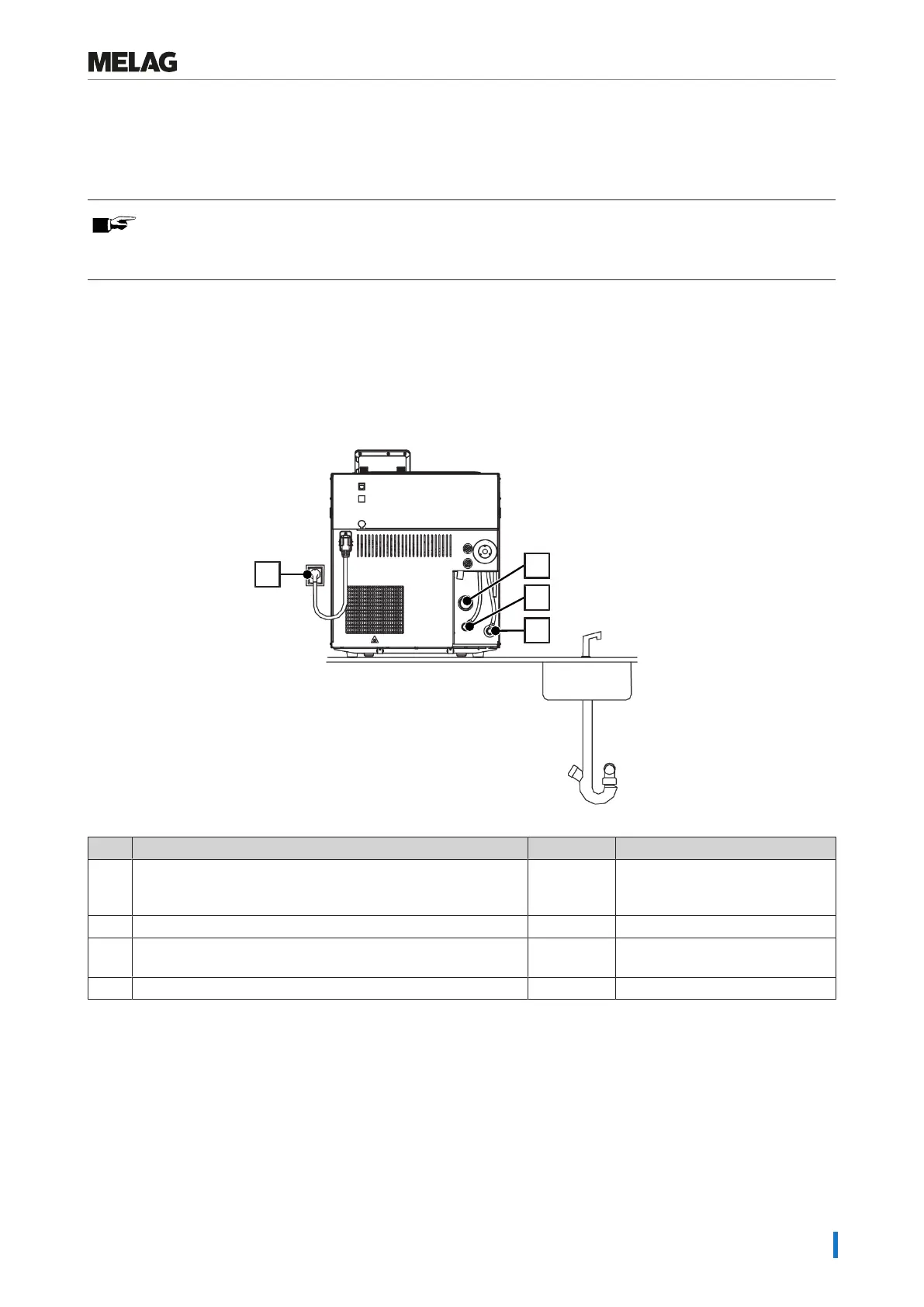

Example 1: Using the internal water storage container
The steam sterilizer is supplied with feed water directly from the internal storage tank via a hose. Thus, apart from the
mains connection, no additional water connection is necessary. A float switch integrated in the device notifies the
absence of feed water. Programs can only be started after feed water has been filled. The used feed water (wastewater)
is collected in the wastewater chamber of the internal storage tank and is to be emptied manually at a later point. A float
switch in the wastewater chamber notifies a full wastewater chamber.
Pos. Description Art. no. Note
1 One-way drain with
Yellow plastic cap 3/4” and
Rubber seal 3/4” for external water supply
--
ME58140
ME56950
present on device-side
2 Feed water connection, Vacuklav ME21175 present on device-side
3 Threaded connection 1/4”, angle, for hose 8/6 mm (pressure
release connection)
ME53471 present on device-side
4 Mains connection -- on-site
