Hardware InstallationRev 2.0
Mellanox Technologies
16
• The 2 screws saved from the removal of the bracket
• The 2 fiber washers saved from the removal of the bracket
3.4.1 Removing the Existing Bracket

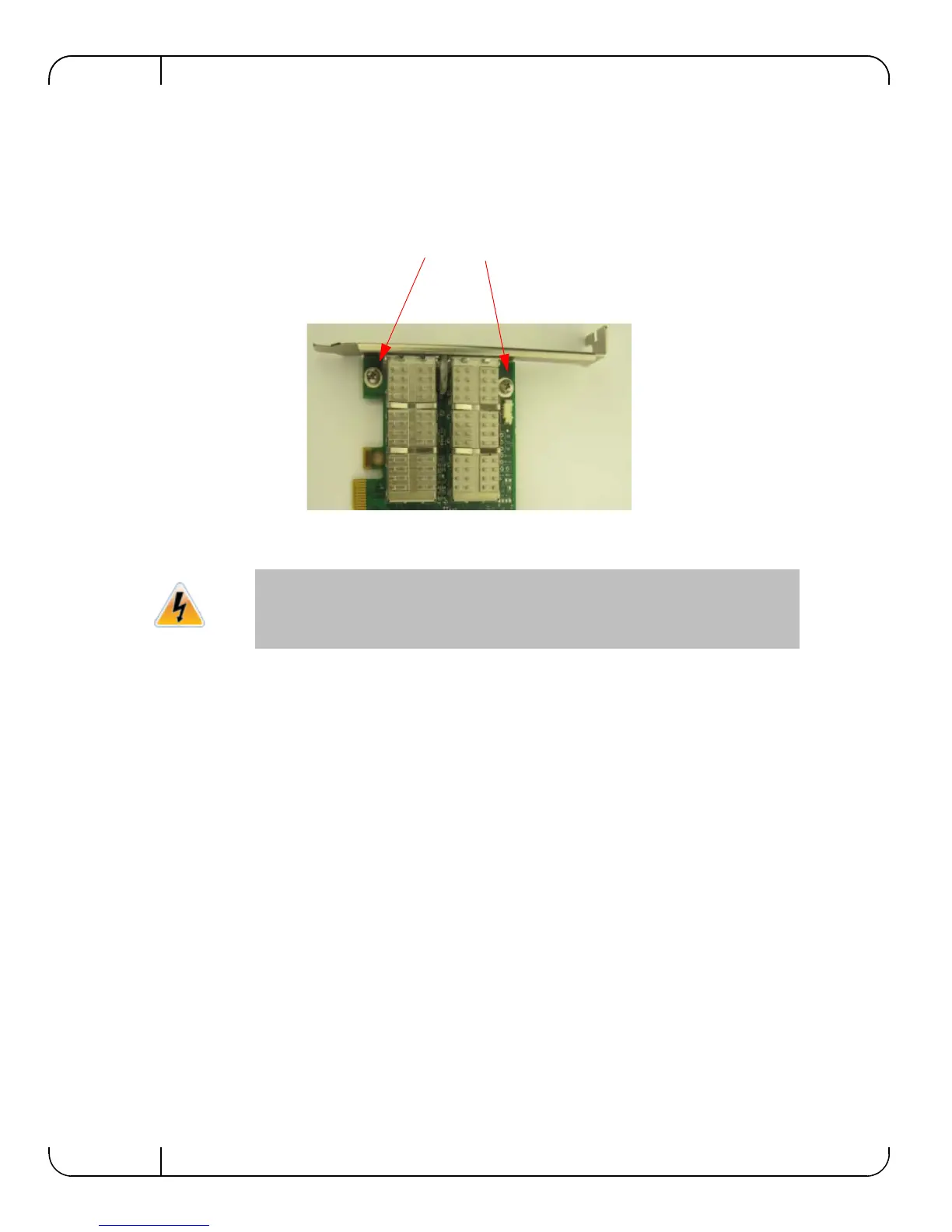

Figure 3: Bracket Screws
1. Remove the two screws holding the bracket in place. The bracket comes loose from the card.
2. Save the two screws and the two fiber washers.
3.4.2 Installing the New Bracket
3.4.2.1 Gasket Installation
Note: The following instructions relate to t
he installation of the gasket for adapter cards that are
not shipped with a gasket already installed. Mellanox Technologies now provides all ConnectX-
3 adapter cards with the gasket already installed unto the bracket.
1. Remove the paper to expose the adhesive on the gasket.
2. Place the gasket onto the new bracket. Make sure to corre
ctly align the gasket with the hole in
the bracket.
3. If the old gaskets are still on the card, remove them before installing the
new bracket.
Be careful not to put stress on the LEDs.
